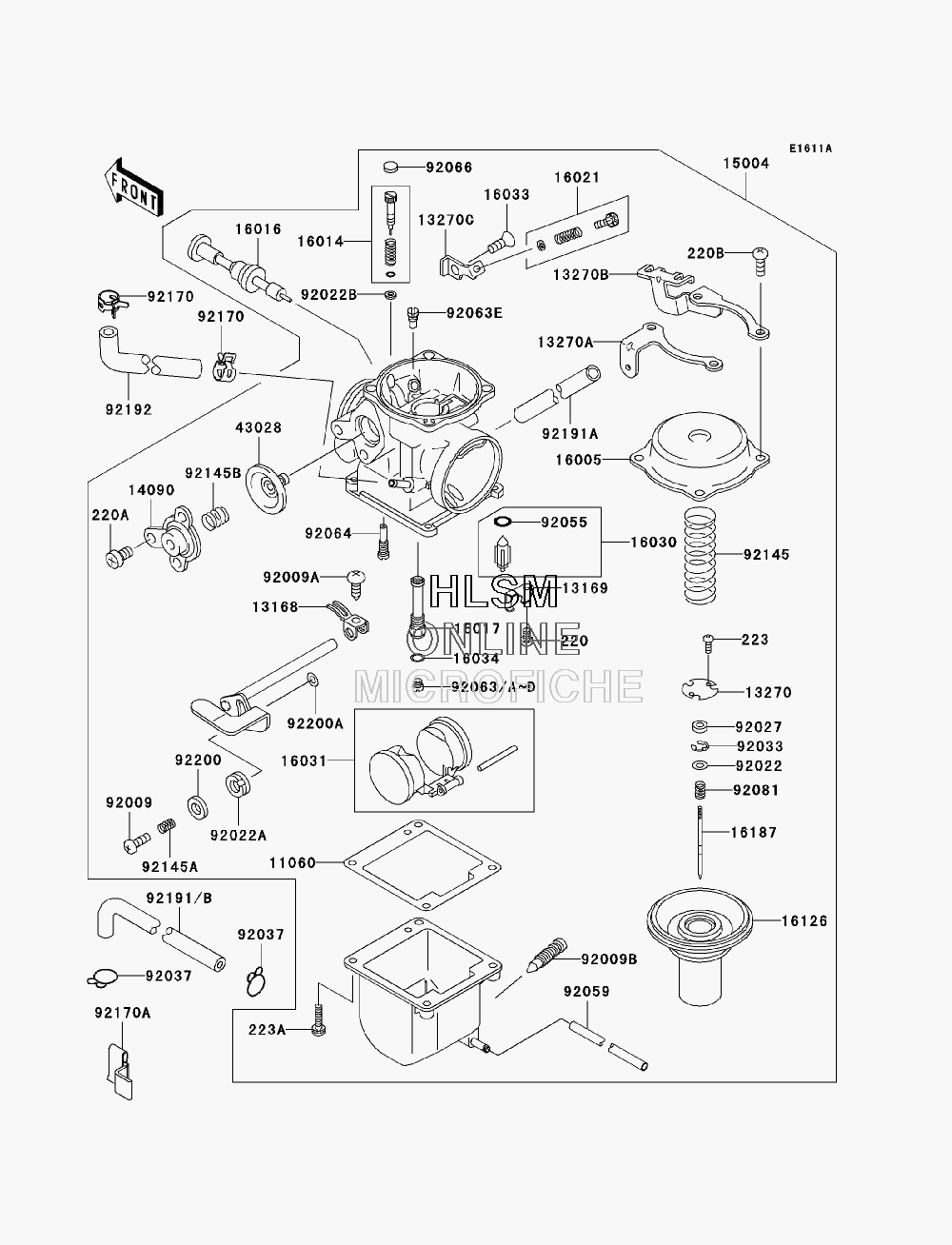

CARBURETOR для Kawasaki ELIMINATOR 125 (BN125A9F) - 2009 года выпуска

  • №
    Артикул
    Название
  • 11060
    11060-1849 GASKET, FLOAT CHAMBER
    GASKET, FLOAT CHAMBER
  • 13168
    13168-1642 LEVER, STARTER
    LEVER, STARTER
  • 13169
    13169-1482 PLATE, FLOAT VALVE
    PLATE, FLOAT VALVE
  • 13270
    13270-1981 PLATE, VACUUM VALVE
    PLATE, VACUUM VALVE
  • 13270A
    13270-1982 PLATE, LEFT HAND
    PLATE, LEFT HAND
  • 13270B
    13270-1983 PLATE, RIGHT HAND
    PLATE, RIGHT HAND
  • 13270C
    13270-1984 PLATE, THROTTLE STOP SCREW
    PLATE, THROTTLE STOP SCREW
  • 14090
    14090-1931 COVER, AIR CUT VALVE
    COVER, AIR CUT VALVE
  • 15004
    15004-0069 CARBURETOR-ASSY, BS28
    CARBURETOR-ASSY, BS28
  • 16005
    16005-0004 TOP-CHAMBER
    TOP-CHAMBER
  • 16014
    16014-1117 SCREW-PILOT AIR
    SCREW-PILOT AIR
  • 16016
    16016-1106 PLUNGER
    PLUNGER
  • 16017
    16017-1432 JET-NEEDLE, O-8M
    JET-NEEDLE, O-8M
  • 16021
    16021-1217 SCREW-THROTTLE STOP
    SCREW-THROTTLE STOP
  • 16030
    16030-1086 VALVE-FLOAT
    VALVE-FLOAT
  • 16031
    16031-1094 FLOAT
    FLOAT
  • 16033
    16033-024 SCREW, 5X8
    SCREW, 5X8
  • 16034
    16034-001 WASHER, MAIN JET
    WASHER, MAIN JET
  • 16126
    16126-1352 VALVE, VACUUM
    VALVE, VACUUM
  • 16187
    16187-1188 NEEDLE-JET, 4C17
    NEEDLE-JET, 4C17
  • 43028
    43028-1026 DIAPHRAGM, COASTING RICHER
    DIAPHRAGM, COASTING RICHER
  • 92009
    92009-1823 SCREW, STARTER LEVER
    SCREW, STARTER LEVER
  • 92009A
    92009-1824 SCREW, STARTER
    SCREW, STARTER
  • 92009B
    92009-1826 SCREW, DRAIN
    SCREW, DRAIN
  • 92022
    92022-1123 WASHER, JET NEEDLE
    WASHER, JET NEEDLE
  • 92022A
    92022-1147 WASHER, PLAIN, DURACON
    WASHER, PLAIN, DURACON
  • 92022B
    92022-1187 WASHER, ADJUST SCREW
    WASHER, ADJUST SCREW
  • 92027
    92027-1103 COLLAR, THROTTLE VALVE
    COLLAR, THROTTLE VALVE
  • 92033
    92033-1290 RING-SNAP
    RING-SNAP
  • 92037
    92037-1610 CLAMP
    CLAMP
  • 92055
    92055-1105 RING-O
    RING-O
  • 92059
    92059-1243 TUBE, 3X5X220, OVERFLOW
    TUBE, 3X5X220, OVERFLOW
  • 92063
    92063-1100 JET-MAIN, #A127.5 (OPTION)
    JET-MAIN, #A127.5 (OPTION)
  • 92063A
    92063-1101 JET-MAIN, #A122.5 (OPTION)
    JET-MAIN, #A122.5 (OPTION)
  • 92063B
    92063-1102 JET-MAIN, #A125
    JET-MAIN, #A125
  • 92063C
    92063-1103 JET-MAIN, #A130 (OPTION)
    JET-MAIN, #A130 (OPTION)
  • 92063D
    92063-1106 JET-MAIN, #A120 (OPTION)
    JET-MAIN, #A120 (OPTION)
  • 220
    220AA0406 SCREW-PAN-CROS, 4X6
    SCREW-PAN-CROS, 4X6
  • 220A
    220AA0410 SCREW-PAN-CROS, 4X10
    SCREW-PAN-CROS, 4X10
  • 220B
    220AA0510 SCREW-PAN-CROSS, 5X10
    SCREW-PAN-CROSS, 5X10
  • 223
    223AA0307 SCREW-PAN-WS-CROS, 3X7
    SCREW-PAN-WS-CROS, 3X7
  • 223A
    223AA0414 SCREW-PAN-WS-CROS, 4X14
    SCREW-PAN-WS-CROS, 4X14
  • 92063E
    92063-2059 JET, #70
    JET, #70
  • 92064
    92064-1230 JET-PILOT, #32.5
    JET-PILOT, #32.5
  • 92066
    92066-1501 PLUG, PILOT AIR SCREW
    PLUG, PILOT AIR SCREW
  • 92081
    92081-1126 SPRING, JET NEEDLE
    SPRING, JET NEEDLE
  • 92145
    92145-1124 SPRING, VACUUM VALVE
    SPRING, VACUUM VALVE
  • 92145A
    92145-1125 SPRING, STARTER LEVER
    SPRING, STARTER LEVER
  • 92145B
    92145-1127 SPRING, AIR CUT VALVE
    SPRING, AIR CUT VALVE
  • 92170
    92170-1872 CLAMP
    CLAMP
  • 92170A
    92170-1936 CLAMP
    CLAMP
  • 92191
    92191-1210 TUBE, L=115 (EXCEPT CALIF.)
    TUBE, L=115 (EXCEPT CALIF.)
  • 92191A
    92191-1245 TUBE, 5X8X300
    TUBE, 5X8X300
  • 92191B
    92191-1623 TUBE, L=66.8 (CALIF. ONLY)
    TUBE, L=66.8 (CALIF. ONLY)
  • 92192
    92192-0831 TUBE, TANK-CARBURETOR
    TUBE, TANK-CARBURETOR
  • 92200
    92200-1397 WASHER, STARTER LEVER
    WASHER, STARTER LEVER
  • 92200A
    92200-1398 WASHER, STARTER LEVER
    WASHER, STARTER LEVER
