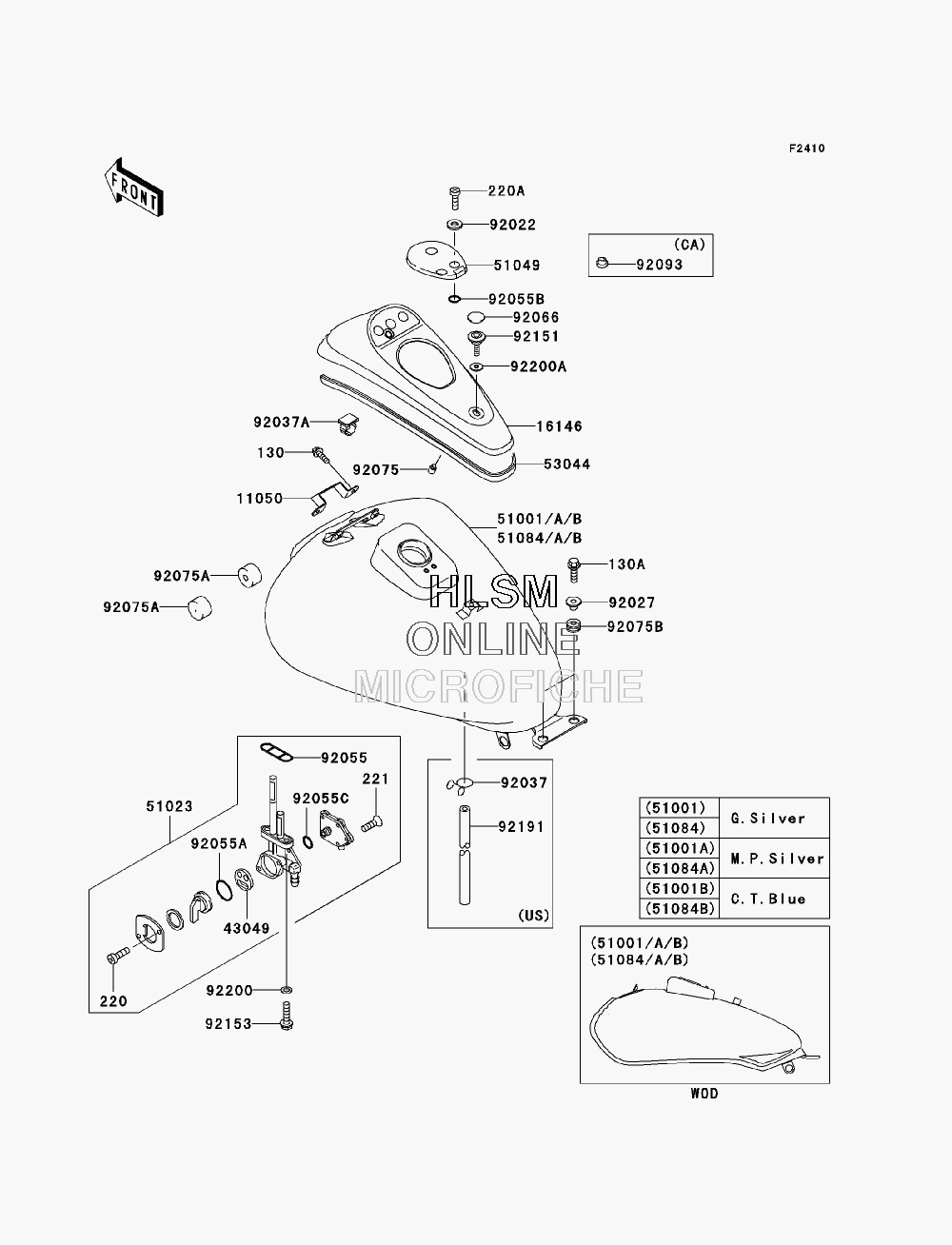

FUEL TANK для Kawasaki ELIMINATOR 125 (BN125A9F) - 2009 года выпуска

  • №
    Артикул
    Название
  • 11050
    11050-1433 BRACKET, FUEL TANK COVER
    BRACKET, FUEL TANK COVER
  • 16146
    16146-1190 COVER-ASSY, FUEL TANK
    COVER-ASSY, FUEL TANK
  • 43049
    43049-1091 PACKING, TAP VALVE
    PACKING, TAP VALVE
  • 51001A
    51001-1593-170 TANK-COMP-FUEL, M. P. SILVER (EXCEPT CALIF.)
    TANK-COMP-FUEL, M. P. SILVER (EXCEPT CALIF.)
  • 51023
    51023-1279 TAP-ASSY, FUEL
    TAP-ASSY, FUEL
  • 51049
    51049-1142 CAP-TANK, FUEL
    CAP-TANK, FUEL
  • 51084A
    51084-5137-170 TANK-COMP-FUEL, M. P. SILVER (CALIF. ONLY)
    TANK-COMP-FUEL, M. P. SILVER (CALIF. ONLY)
  • 130
    130BB0612 BOLT-FLANGED, 6X12
    BOLT-FLANGED, 6X12
  • 130A
    130BB0620 BOLT-FLANGED, 6X20
    BOLT-FLANGED, 6X20
  • 220
    220AA0308 SCREW-PAN-CROS, 3X8
    SCREW-PAN-CROS, 3X8
  • 220A
    220AA0510 SCREW-PAN-CROSS, 5X10
    SCREW-PAN-CROSS, 5X10
  • 221
    221AA0414 SCREW-CSK-CROS, 4X14
    SCREW-CSK-CROS, 4X14
  • 53044
    53044-1316 TRIM, L=870
    TRIM, L=870
  • 92022
    92022-1977 WASHER, 5.1X10X1.0
    WASHER, 5.1X10X1.0
  • 92027
    92027-251 COLLAR, L=13.1
    COLLAR, L=13.1
  • 92037
    92037-1712 CLAMP (EXCEPT CALIF.)
    CLAMP (EXCEPT CALIF.)
  • 92037A
    92037-1794 CLAMP, TUBE
    CLAMP, TUBE
  • 92055
    92055-1112 RING-O, FUEL TAP PACKING
    RING-O, FUEL TAP PACKING
  • 92055A
    92055-1419 RING-O, TAP LEVER
    RING-O, TAP LEVER
  • 92055B
    92055-1552 RING-O, ID=9
    RING-O, ID=9
  • 92055C
    92055-1664 RING-O
    RING-O
  • 92066
    92066-1301 PLUG
    PLUG
  • 92075
    92075-035 DAMPER
    DAMPER
  • 92075A
    92075-101 DAMPER, FUEL TANK
    DAMPER, FUEL TANK
  • 92075B
    92075-209 DAMPER
    DAMPER
  • 92093
    92093-1030 SEAL, FUEL TANK CAP (CALIF. ONLY)
    SEAL, FUEL TANK CAP (CALIF. ONLY)
  • 92151
    92151-1248 BOLT, 6MM
    BOLT, 6MM
  • 92153
    92153-0514 BOLT, FLANGED, 6X25
    BOLT, FLANGED, 6X25
  • 92191
    92191-1302 TUBE, 7X10X530 (EXCEPT CALIF.)
    TUBE, 7X10X530 (EXCEPT CALIF.)
  • 92200
    92200-0117 WASHER, 6.5X11.5X0.8
    WASHER, 6.5X11.5X0.8
  • 92200A
    92200-1439 WASHER, 9.3X18X1.6
    WASHER, 9.3X18X1.6
