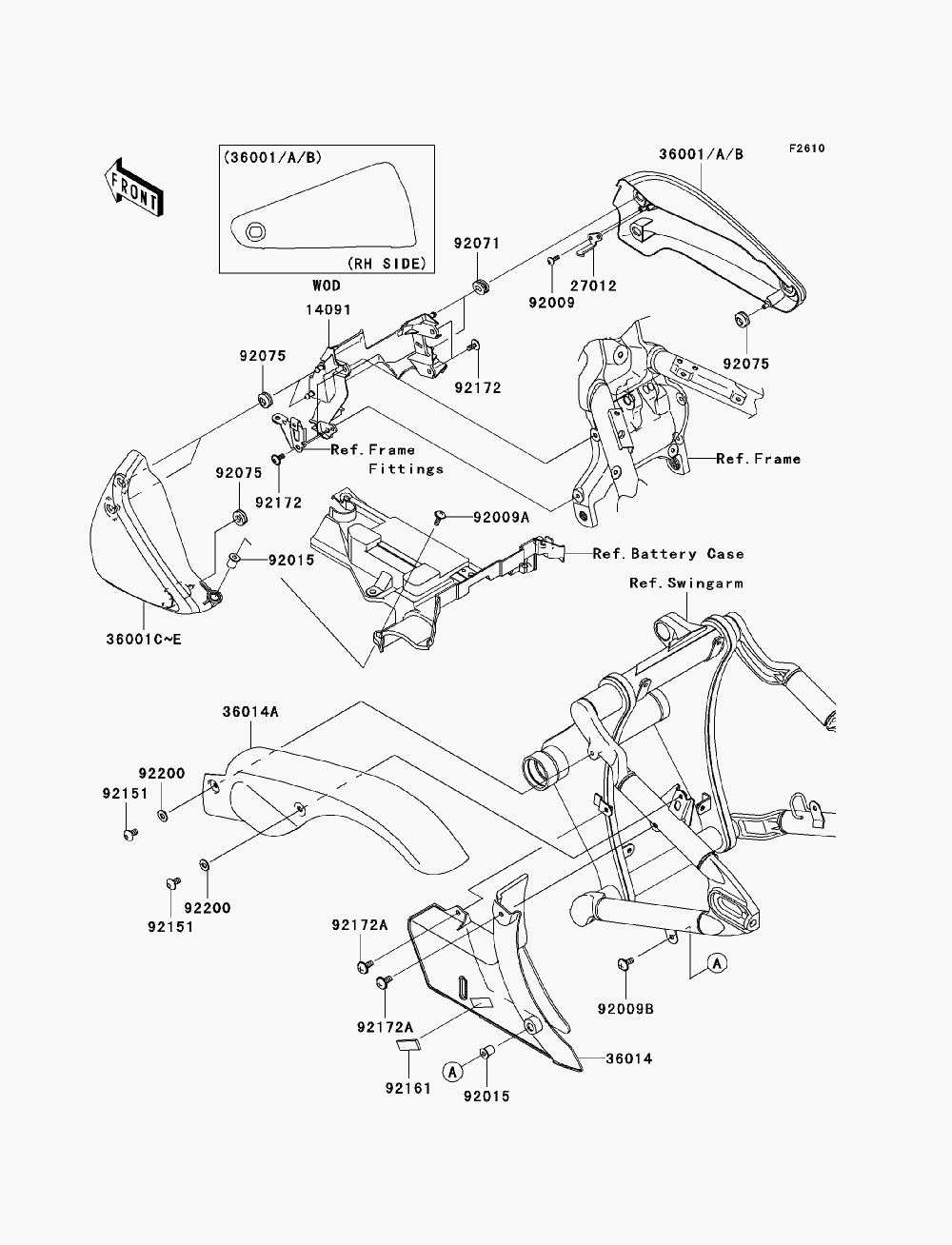

SIDE COVERS W/ CHAIN COVER для Kawasaki VULCAN 2000 CLASSIC (VN2000E7F) - 2007 года выпуска

  • №
    Артикул
    Название
  • 14091
    14091-0237 COVER, SIDE COVER, CNT
    COVER, SIDE COVER, CNT
  • 27012
    27012-0025 HOOK, SIDE COVER, RIGHT HAND
    HOOK, SIDE COVER, RIGHT HAND
  • 36001
    36001-0031-H8 COVER-SIDE, RIGHT HAND, EBONY (FOR H8)
    COVER-SIDE, RIGHT HAND, EBONY (FOR H8)
  • 36001B
    36001-0031-816 COVER-SIDE, RIGHT HAND, C.F.RED (FOR 816)
    COVER-SIDE, RIGHT HAND, C.F.RED (FOR 816)
  • 36001C
    36001-0035-H8 COVER-SIDE, LEFT HAND, EBONY (FOR H8)
    COVER-SIDE, LEFT HAND, EBONY (FOR H8)
  • 36001E
    36001-0035-816 COVER-SIDE, LEFT HAND, C.F.RED (FOR 816)
    COVER-SIDE, LEFT HAND, C.F.RED (FOR 816)
  • 36014
    36014-0014 CASE-CHAIN, LWR
    CASE-CHAIN, LWR
  • 36014A
    36014-0026 CASE-CHAIN, UPP
    CASE-CHAIN, UPP
  • 92009
    92009-1142 SCREW, TAPPING, 4X12, BLACK
    SCREW, TAPPING, 4X12, BLACK
  • 92009A
    92009-1465 SCREW, 6X25
    SCREW, 6X25
  • 92009B
    92009-1662 SCREW, 6X14
    SCREW, 6X14
  • 92015
    92015-1700 NUT
    NUT
  • 92071
    92071-0011 GROMMET
    GROMMET
  • 92075
    92075-1067 DAMPER
    DAMPER
  • 92151
    92151-1940 BOLT, SOCKET, 6X12
    BOLT, SOCKET, 6X12
  • 92161
    92161-0124 DAMPER
    DAMPER
  • 92172
    92172-0004 SCREW, 6X14
    SCREW, 6X14
  • 92172A
    92172-0140 SCREW, 6X14
    SCREW, 6X14
  • 92200
    92200-3775 WASHER, 6.5X14.5X1.5
    WASHER, 6.5X14.5X1.5
