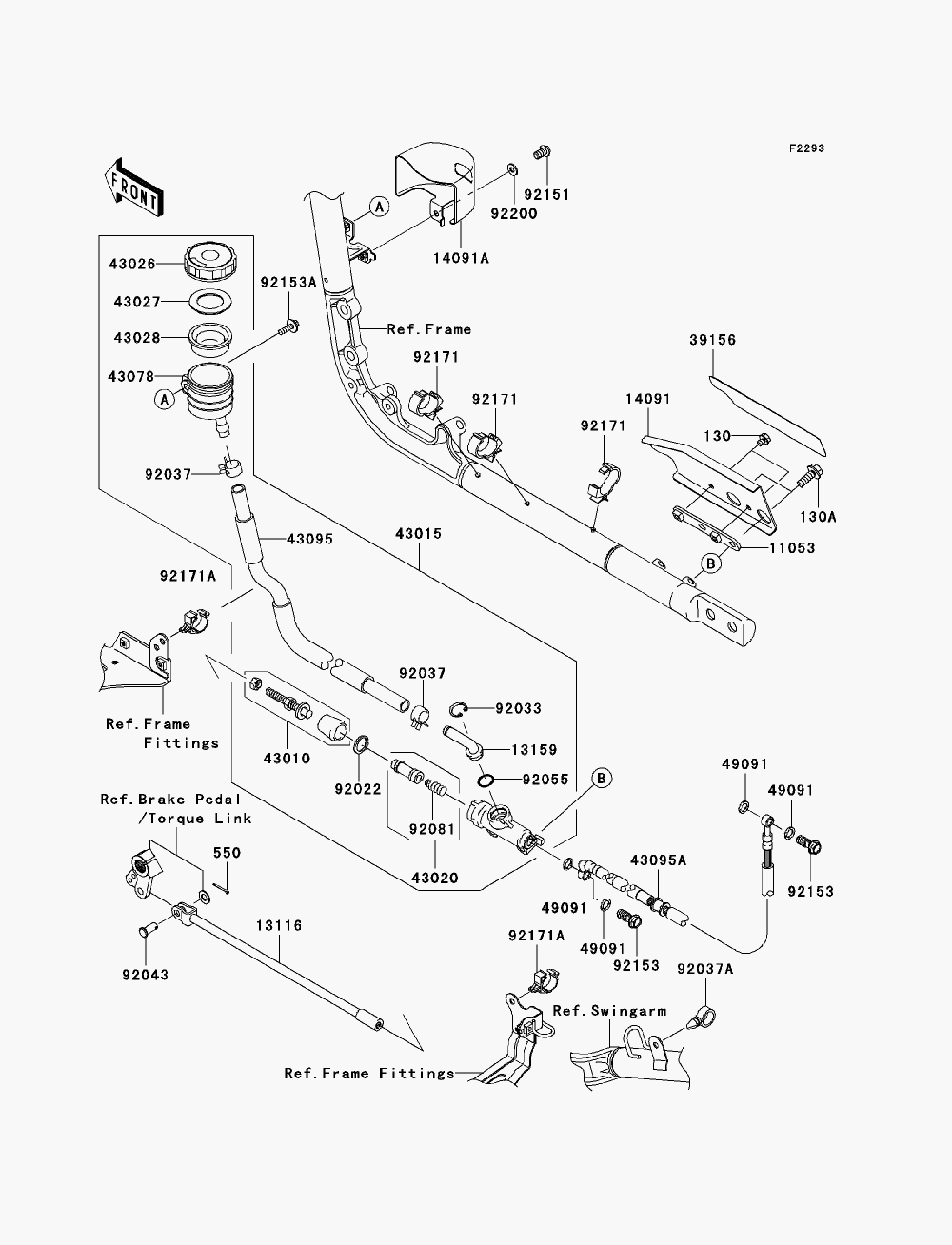

BRAKE - MASTER CYLINDER - REAR для Kawasaki VULCAN 2000 CLASSIC (VN2000E7F) - 2007 года выпуска
-
№АртикулНазвание
-
130130L0610 BOLT-FLANGED, 6X10BOLT-FLANGED, 6X10
-
130A130L0830 BOLT-FLANGED, 8X30BOLT-FLANGED, 8X30
-
550550D2015 PIN-COTTER, 2.0X15PIN-COTTER, 2.0X15
-
1105311053-0948 BRACKET, HEAT GUARD COVERBRACKET, HEAT GUARD COVER
-
1311613116-0011 ROD-PUSHROD-PUSH
-
1315913159-1052 CONNECTOR, REAR MASTER CYLINDERCONNECTOR, REAR MASTER CYLINDER
-
1409114091-0273 COVER, REAR MASTER HEAT GUARDCOVER, REAR MASTER HEAT GUARD
-
14091A14091-0352 COVER, RESERVOIR TANKCOVER, RESERVOIR TANK
-
3915639156-0057 PAD, REAR MASTER CYLINDERPAD, REAR MASTER CYLINDER
-
4301043010-0004 ROD-ASSY-BRAKEROD-ASSY-BRAKE
-
4301543015-0042 CYLINDER-ASSY-MASTER, REARCYLINDER-ASSY-MASTER, REAR
-
4302043020-1057 PISTON-COMP-BRAKEPISTON-COMP-BRAKE
-
4302643026-1051 CAP-BRAKECAP-BRAKE
-
4302743027-1051 PLATE-DIAPHRAGMPLATE-DIAPHRAGM
-
4302843028-1057 DIAPHRAGM, MASTER CYLINDERDIAPHRAGM, MASTER CYLINDER
-
4307843078-1178 RESERVOIR, REAR MASTER CYLINDERRESERVOIR, REAR MASTER CYLINDER
-
4309543095-0039 HOSE-BRAKE, REAR MASTER CYLINDERHOSE-BRAKE, REAR MASTER CYLINDER
-
43095A43095-0169 HOSE-BRAKE, REARHOSE-BRAKE, REAR
-
4909149091-0001 WASHER-SEAL, 10.1X14.5X1.5WASHER-SEAL, 10.1X14.5X1.5
-
9202292022-1601 WASHER, CIRCRIPWASHER, CIRCRIP
-
9203392033-1186 RING-SNAP, 20.5MMRING-SNAP, 20.5MM
-
9203792037-1547 CLAMP, BRAKE HOSECLAMP, BRAKE HOSE
-
92037A92037-1827 CLAMP, HOSECLAMP, HOSE
-
9204392043-1013 PIN, 8X16PIN, 8X16
-
9205592055-1251 RING-O, MASTER CYLINDERRING-O, MASTER CYLINDER
-
9208192081-1737 SPRING, MASTER CYLINDERSPRING, MASTER CYLINDER
-
9215192151-1940 BOLT, SOCKET, 6X12BOLT, SOCKET, 6X12
-
9215392153-0627 BOLT, OIL, L=23BOLT, OIL, L=23
-
92153A92153-0673 BOLT, FLANGED, 6X20BOLT, FLANGED, 6X20
-
9217192171-0081 CLAMP, DIA=20CLAMP, DIA=20
-
92171A92171-0316 CLAMP, BRAKE HOSECLAMP, BRAKE HOSE
-
9220092200-3775 WASHER, 6.5X14.5X1.5WASHER, 6.5X14.5X1.5
