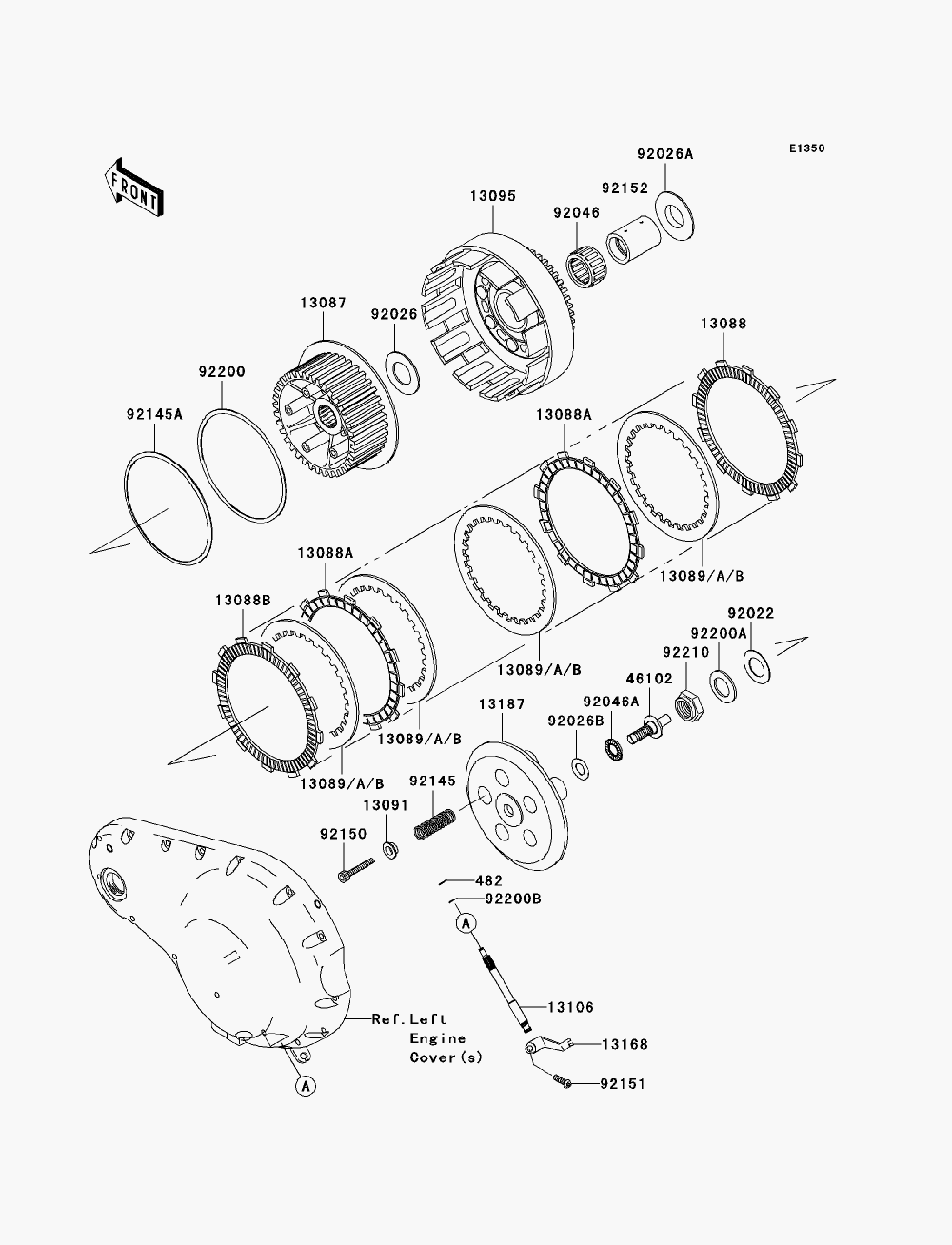

CLUTCH для Kawasaki VULCAN 2000 CLASSIC (VN2000E7F) - 2007 года выпуска

  • №
    Артикул
    Название
  • 482
    482J5000 CIRCLIP-TYPE-E
    CIRCLIP-TYPE-E
  • 13087
    13087-0005 HUB-CLUTCH
    HUB-CLUTCH
  • 13088
    13088-0001 PLATE-FRICTION
    PLATE-FRICTION
  • 13088A
    13088-0011 PLATE-FRICTION
    PLATE-FRICTION
  • 13088B
    13088-1146 PLATE-FRICTION
    PLATE-FRICTION
  • 13089
    13089-1075 PLATE-CLUTCH, T=2.0
    PLATE-CLUTCH, T=2.0
  • 13089A
    13089-1080 PLATE-CLUTCH, T=1.6
    PLATE-CLUTCH, T=1.6
  • 13089B
    13089-1081 PLATE-CLUTCH, T=2.3
    PLATE-CLUTCH, T=2.3
  • 13091
    13091-1041 HOLDER, CLUTCH SPRING
    HOLDER, CLUTCH SPRING
  • 13095
    13095-0001 HOUSING-COMP-CLUTCH
    HOUSING-COMP-CLUTCH
  • 13106
    13106-0002 SHAFT-CLUTCH RELEASE
    SHAFT-CLUTCH RELEASE
  • 13168
    13168-0006 LEVER, CLUTCH
    LEVER, CLUTCH
  • 13187
    13187-0002 PLATE-CLUTCH OPERATING
    PLATE-CLUTCH OPERATING
  • 46102
    46102-0013 ROD, CLUTCH RELEASE
    ROD, CLUTCH RELEASE
  • 92022
    92022-1390 WASHER, 25.3X44X1
    WASHER, 25.3X44X1
  • 92026
    92026-0008 SPACER, 30.5X56X2
    SPACER, 30.5X56X2
  • 92026A
    92026-0009 SPACER, 30.2X64X8.5
    SPACER, 30.2X64X8.5
  • 92026B
    92026-1238 SPACER, 15X28X1
    SPACER, 15X28X1
  • 92046
    92046-0001 BEARING-NEEDLE, K40X48X25V3
    BEARING-NEEDLE, K40X48X25V3
  • 92046A
    92046-1052 BEARING-NEEDLE, AXK1102
    BEARING-NEEDLE, AXK1102
  • 92145
    92145-0032 SPRING, CLUTCH
    SPRING, CLUTCH
  • 92145A
    92145-0033 SPRING
    SPRING
  • 92150
    92150-1855 BOLT, CLUTCH OPERATING
    BOLT, CLUTCH OPERATING
  • 92151
    92151-1749 BOLT, SOCKET, 6X20
    BOLT, SOCKET, 6X20
  • 92152
    92152-0190 COLLAR, 30X40X52.3
    COLLAR, 30X40X52.3
  • 92200
    92200-0015 WASHER, 140.1X150X1.2
    WASHER, 140.1X150X1.2
  • 92200A
    92200-0016 WASHER, 25.5X42X2.6
    WASHER, 25.5X42X2.6
  • 92200B
    92200-1107 WASHER, 7.7X13X1.0
    WASHER, 7.7X13X1.0
  • 92210
    92210-0138 NUT, 25MM
    NUT, 25MM
