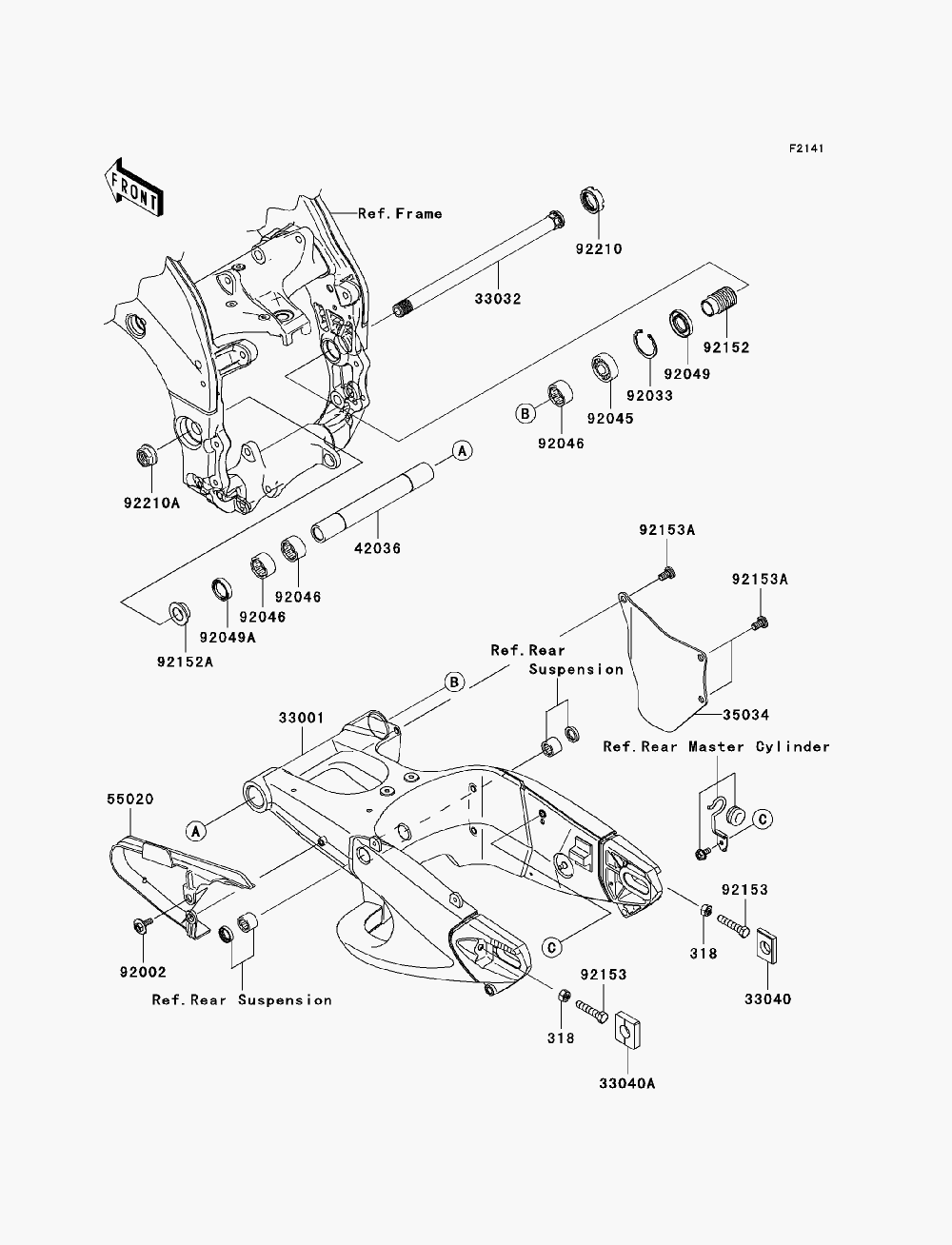

SUSPENSION - SWINGARM для Kawasaki NINJA ZX-10R (ZX1000D7FA) - 2007 года выпуска

  • №
    Артикул
    Название
  • 318
    318L0800 NUT-HEX-SMALL
    NUT-HEX-SMALL
  • 33001
    33001-0071-11E ARM-COMP-SWING, F.S.BLACK
    ARM-COMP-SWING, F.S.BLACK
  • 33032
    33032-0013 SHAFT-SWING ARM
    SHAFT-SWING ARM
  • 33040
    33040-0016 ADJUSTER-CHAIN, RIGHT HAND
    ADJUSTER-CHAIN, RIGHT HAND
  • 33040A
    33040-1109 ADJUSTER-CHAIN
    ADJUSTER-CHAIN
  • 35034
    35034-0071-11E REINFORCE, F.S.BLACK
    REINFORCE, F.S.BLACK
  • 42036
    42036-1341 SLEEVE, SWING ARM PIVOT, L=226
    SLEEVE, SWING ARM PIVOT, L=226
  • 55020
    55020-0201 GUARD, CHAIN
    GUARD, CHAIN
  • 92002
    92002-1187 BOLT, 6X16
    BOLT, 6X16
  • 92033
    92033-1041 RING-SNAP, 42MM
    RING-SNAP, 42MM
  • 92045
    92045-0017 BEARING-BALL, 6004UL11
    BEARING-BALL, 6004UL11
  • 92046
    92046-0008 BEARING-NEEDLE, 7E-HVS 28X34X17
    BEARING-NEEDLE, 7E-HVS 28X34X17
  • 92049
    92049-1314 SEAL-OIL, MHSA25 42 6
    SEAL-OIL, MHSA25 42 6
  • 92049A
    92049-1352 SEAL-OIL, MHSA25X34X7
    SEAL-OIL, MHSA25X34X7
  • 92152
    92152-0154 COLLAR, SWING ARM, L=47
    COLLAR, SWING ARM, L=47
  • 92152A
    92152-0363 COLLAR, SWING ARM, LEFT HAND, L=12.5
    COLLAR, SWING ARM, LEFT HAND, L=12.5
  • 92153
    92153-0736 BOLT, 8X40
    BOLT, 8X40
  • 92153A
    92153-1548 BOLT, SOCKET, 8X15
    BOLT, SOCKET, 8X15
  • 92210
    92210-0134 NUT, 30MM
    NUT, 30MM
  • 92210A
    92210-0320 NUT, FLANGED, 20MM
    NUT, FLANGED, 20MM
