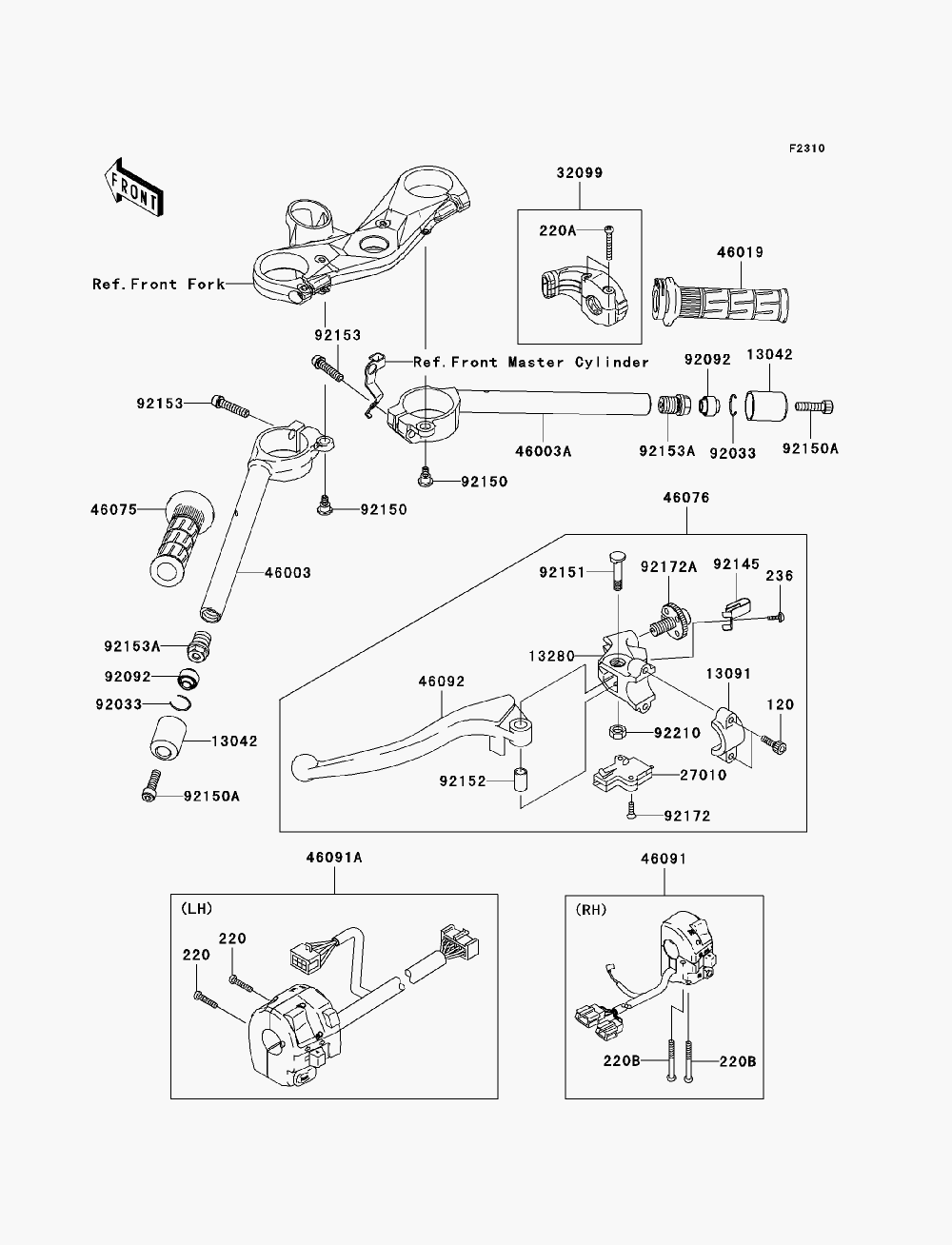

HANDLEBAR для Kawasaki NINJA ZX-10R (ZX1000D7FA) - 2007 года выпуска
-
№АртикулНазвание
-
120120P0620 BOLT-SOCKET, 6X20BOLT-SOCKET, 6X20
-
220220C0525 SCREW-PAN-CROS, 5X25SCREW-PAN-CROS, 5X25
-
220A220C0535 SCREW-PAN-CROS, 5X35SCREW-PAN-CROS, 5X35
-
220B220C0545 SCREW-PAN-CROS, 5X45SCREW-PAN-CROS, 5X45
-
236236C0410 SCREW-PAN-WSP-CROS, 4X10SCREW-PAN-WSP-CROS, 4X10
-
1304213042-1133 WEIGHT, HANDLEWEIGHT, HANDLE
-
1309113091-1624 HOLDER, CLUTCH LEVERHOLDER, CLUTCH LEVER
-
1328013280-1160 HOLDER, CLUTCH LEVERHOLDER, CLUTCH LEVER
-
2701027010-1492 SWITCH, CLUTCHSWITCH, CLUTCH
-
3209932099-1193 CASE, THROTTLE CABLECASE, THROTTLE CABLE
-
4600346003-0050 HANDLE, LEFT HANDHANDLE, LEFT HAND
-
46003A46003-0095 HANDLE, RIGHT HANDHANDLE, RIGHT HAND
-
4601946019-0001 GRIP-ASSY, THROTTLEGRIP-ASSY, THROTTLE
-
4607546075-1144 GRIP, LEFT HANDGRIP, LEFT HAND
-
4607646076-0033 LEVER-ASSY-GRIP, CLUTCHLEVER-ASSY-GRIP, CLUTCH
-
4609146091-0040 HOUSING-ASSY-CONTROL, RIGHT HANDHOUSING-ASSY-CONTROL, RIGHT HAND
-
46091A46091-0044 HOUSING-ASSY-CONTROL, LEFT HANDHOUSING-ASSY-CONTROL, LEFT HAND
-
4609246092-0006 LEVER-GRIP, CLUTCHLEVER-GRIP, CLUTCH
-
9203392033-1102 RING-SNAP, OD=22.2RING-SNAP, OD=22.2
-
9209292092-1075 BUSHING-RUBBER, HANDLEBUSHING-RUBBER, HANDLE
-
9214592145-1286 SPRINGSPRING
-
9215092150-1090 BOLT, 6MMBOLT, 6MM
-
92150A92150-1604 BOLT, SOCKET, 8X30BOLT, SOCKET, 8X30
-
9215192151-1523 BOLTBOLT
-
9215292152-0103 COLLARCOLLAR
-
9215392153-0907 BOLT, SOCKET, 8X35BOLT, SOCKET, 8X35
-
92153A92153-1667 BOLT, 17X18BOLT, 17X18
-
9217292172-0183 SCREW, 3X16SCREW, 3X16
-
92172A92172-1060 SCREW, ADJUST NUTSCREW, ADJUST NUT
-
9221092210-0006 NUT, LOCK, 6MMNUT, LOCK, 6MM
