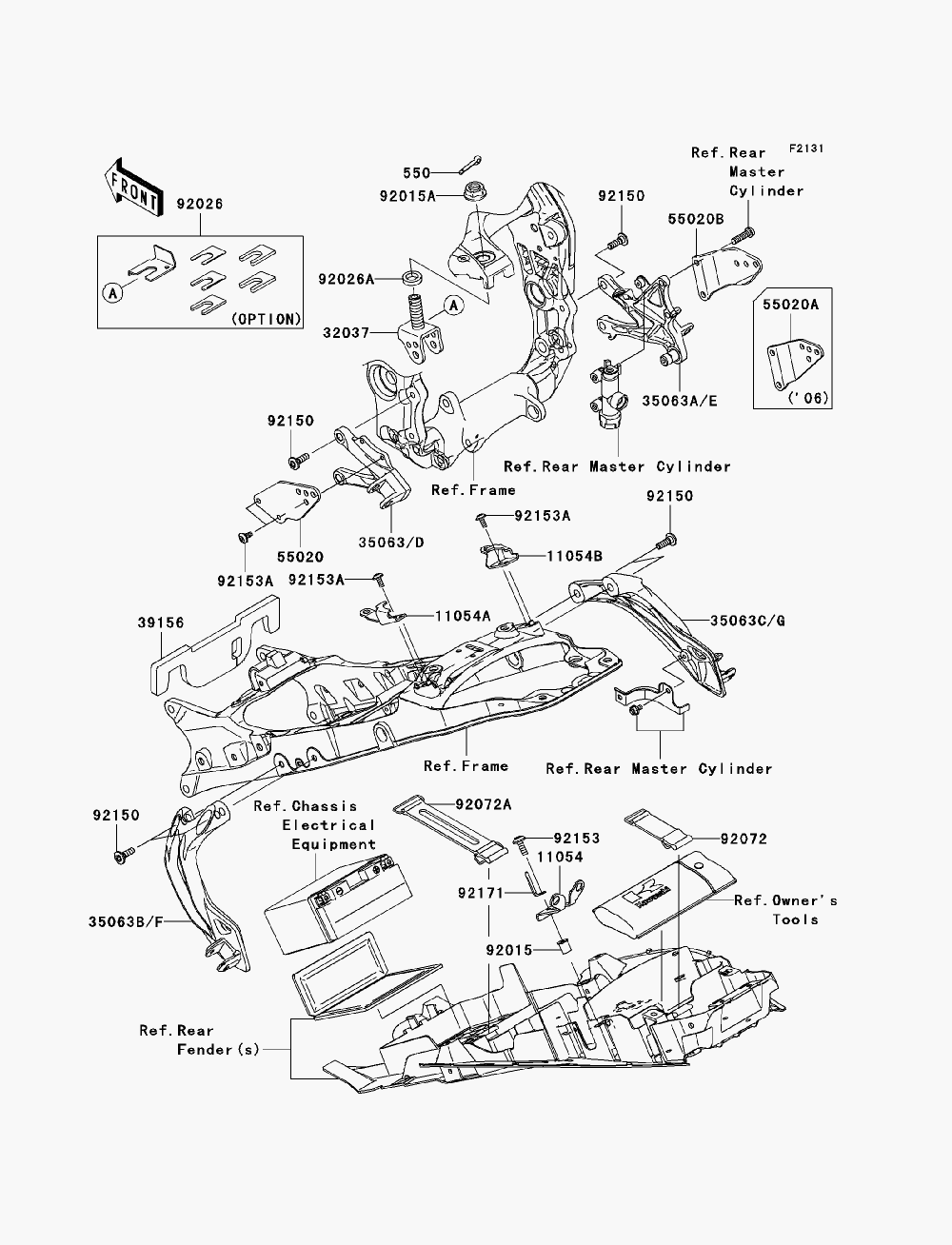

FRAME FITTINGS для Kawasaki NINJA ZX-10R (ZX1000D7FA) - 2007 года выпуска

  • №
    Артикул
    Название
  • 550
    550S3025 PIN-COTTER, 3X25
    PIN-COTTER, 3X25
  • 11054
    11054-0316 BRACKET, DOWN SENSOR
    BRACKET, DOWN SENSOR
  • 11054A
    11054-0594 BRACKET, HELMET HOLDER, LEFT HAND
    BRACKET, HELMET HOLDER, LEFT HAND
  • 11054B
    11054-0595 BRACKET, HELMET HOLDER, RIGHT HAND
    BRACKET, HELMET HOLDER, RIGHT HAND
  • 32037
    32037-0013 BRACKET-SHOCKABSORBER
    BRACKET-SHOCKABSORBER
  • 35063D
    35063-0369 STAY, FRONT, LEFT HAND
    STAY, FRONT, LEFT HAND
  • 35063E
    35063-0370 STAY, FRONT, RIGHT HAND
    STAY, FRONT, RIGHT HAND
  • 35063F
    35063-0371 STAY, REAR, LEFT HAND
    STAY, REAR, LEFT HAND
  • 35063G
    35063-0372 STAY, REAR, RIGHT HAND
    STAY, REAR, RIGHT HAND
  • 39156
    39156-0135 PAD, FUEL TANK
    PAD, FUEL TANK
  • 55020
    55020-0204 GUARD, FRONT STEP STAY, LEFT HAND
    GUARD, FRONT STEP STAY, LEFT HAND
  • 55020B
    55020-0296 GUARD, FRONT STEP STAY, RIGHT HAND
    GUARD, FRONT STEP STAY, RIGHT HAND
  • 92015
    92015-1700 NUT
    NUT
  • 92015A
    92015-1881 NUT, FLANGED, 16MM
    NUT, FLANGED, 16MM
  • 92026
    92026-0057 SPACER, SET (OPTION)
    SPACER, SET (OPTION)
  • 92026A
    92026-1594 SPACER, 16.5X26X6
    SPACER, 16.5X26X6
  • 92072
    92072-1176 BAND, TOOL
    BAND, TOOL
  • 92072A
    92072-1306 BAND, L=168
    BAND, L=168
  • 92150
    92150-1845 BOLT, 8X25
    BOLT, 8X25
  • 92153
    92153-0816 BOLT, 6X18
    BOLT, 6X18
  • 92153A
    92153-1612 BOLT, SOCKET, 6X14
    BOLT, SOCKET, 6X14
  • 92171
    92171-1420 CLAMP
    CLAMP
