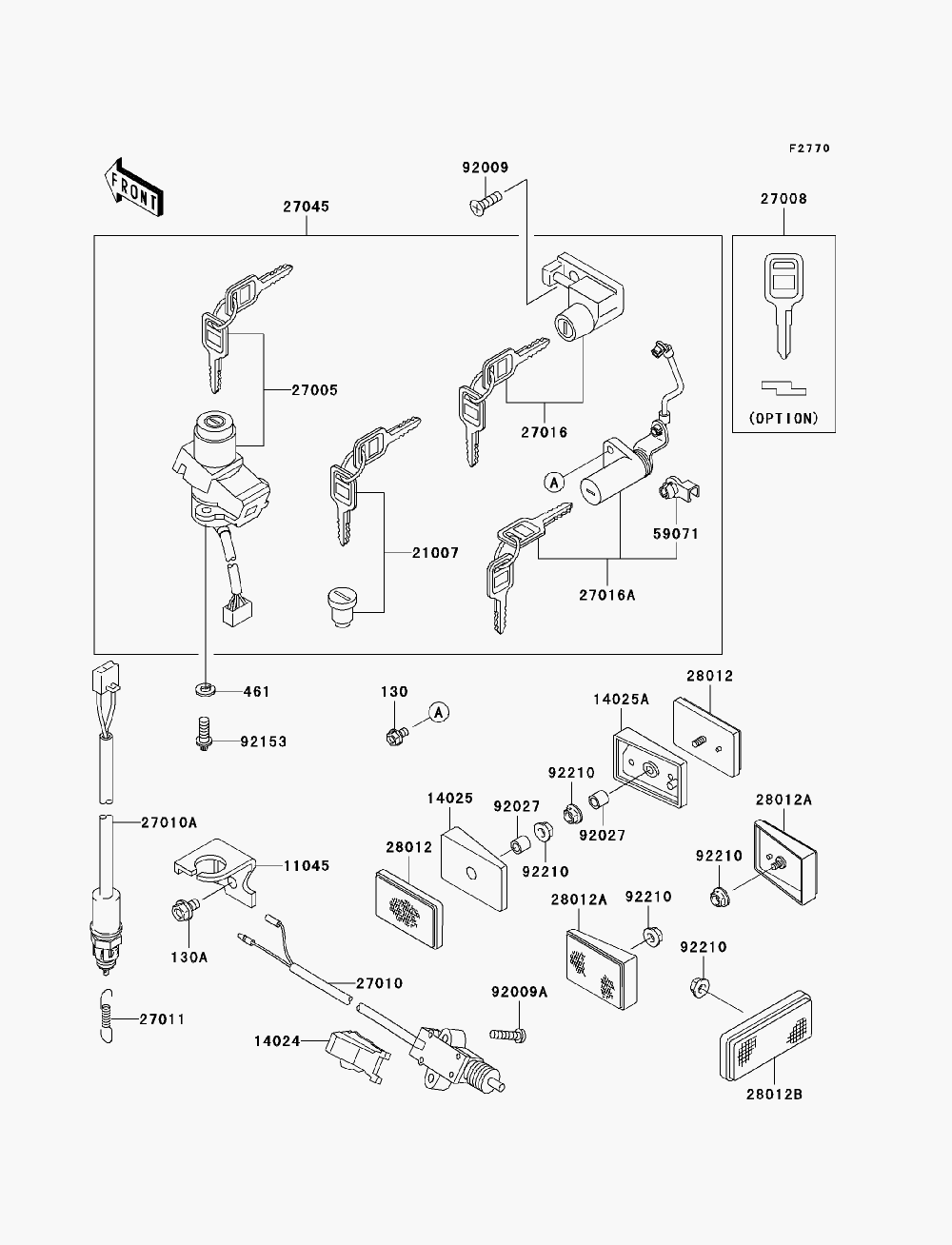

IGNITION SWITCH W/ LOCKS AND REFLECTORS для Kawasaki NINJA 250R (EX250F7F) - 2007 года выпуска
-
№АртикулНазвание
-
130130B0510 BOLT-FLANGED, 5X10BOLT-FLANGED, 5X10
-
130A130H0610 BOLT-FLANGED, 6X10BOLT-FLANGED, 6X10
-
461461L0600 WASHER-SPRINGWASHER-SPRING
-
1104511045-1641 BRACKET, REAR BRAKE SWITCHBRACKET, REAR BRAKE SWITCH
-
1402414024-1532 COVER, SIDE STAND SWITCHCOVER, SIDE STAND SWITCH
-
1402514025-1886 COVER, REFLECTOR, FRONTCOVER, REFLECTOR, FRONT
-
14025A14025-1887 COVER, REFLECTOR, FRONTCOVER, REFLECTOR, FRONT
-
2100721007-5037 ROTOR, LOCK, TANK CAPROTOR, LOCK, TANK CAP
-
2700527005-5105 SWITCH-ASSY-IGNITIONSWITCH-ASSY-IGNITION
-
2700827008-1173 KEY-LOCK, BLANK (OPTION)KEY-LOCK, BLANK (OPTION)
-
2701027010-1223 SWITCH, SIDE STANDSWITCH, SIDE STAND
-
27010A27010-1479 SWITCH, REAR BRAKESWITCH, REAR BRAKE
-
2701127011-004 SPRING, BRAKE LAMP SWITCHSPRING, BRAKE LAMP SWITCH
-
2701627016-5211 LOCK-ASSY, HELMETLOCK-ASSY, HELMET
-
27016A27016-5224 LOCK-ASSY, SEATLOCK-ASSY, SEAT
-
2704527045-5003 SWITCH-ASSYSWITCH-ASSY
-
2801228012-1052 REFLECTOR-REFLEX, FRONTREFLECTOR-REFLEX, FRONT
-
28012A28012-1056 REFLECTOR-REFLEX, REARREFLECTOR-REFLEX, REAR
-
28012B28012-1077 REFLECTOR-REFLEXREFLECTOR-REFLEX
-
5907159071-1103 JOINTJOINT
-
9200992009-1401 SCREW, 5X12SCREW, 5X12
-
92009A92009-1492 SCREW, 5X22SCREW, 5X22
-
9202792027-1789 COLLAR, 5X8X14.5COLLAR, 5X8X14.5
-
9215392153-0967 BOLT, TORX, 6X16BOLT, TORX, 6X16
-
9221092210-0007 NUT, FLANGED, 5MMNUT, FLANGED, 5MM
