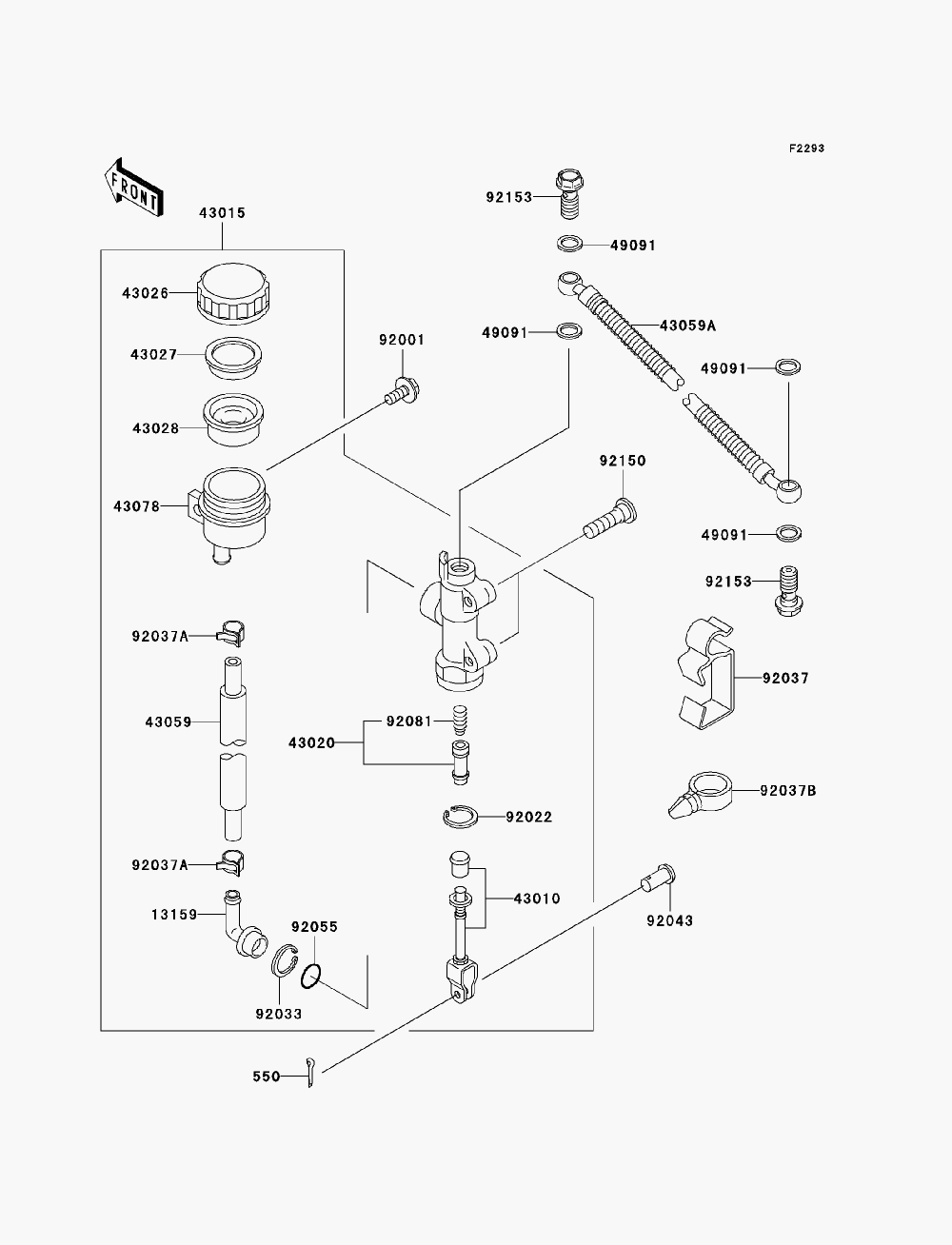

BRAKE - MASTER CYLINDER - REAR для Kawasaki NINJA 250R (EX250F7F) - 2007 года выпуска

  • №
    Артикул
    Название
  • 550
    550D2015 PIN-COTTER, 2.0X15
    PIN-COTTER, 2.0X15
  • 13159
    13159-1052 CONNECTOR, REAR MASTER CYLINDER
    CONNECTOR, REAR MASTER CYLINDER
  • 43010
    43010-1055 ROD-ASSY-BRAKE
    ROD-ASSY-BRAKE
  • 43015
    43015-1495 CYLINDER-ASSY-MASTER, REAR
    CYLINDER-ASSY-MASTER, REAR
  • 43020
    43020-1057 PISTON-COMP-BRAKE
    PISTON-COMP-BRAKE
  • 43026
    43026-1051 CAP-BRAKE
    CAP-BRAKE
  • 43027
    43027-1051 PLATE-DIAPHRAGM
    PLATE-DIAPHRAGM
  • 43028
    43028-1057 DIAPHRAGM, MASTER CYLINDER
    DIAPHRAGM, MASTER CYLINDER
  • 43059
    43059-1369 HOSE-BRAKE, REAR MASTER CYLINDER
    HOSE-BRAKE, REAR MASTER CYLINDER
  • 43059A
    43059-1883 HOSE-BRAKE, REAR
    HOSE-BRAKE, REAR
  • 43078
    43078-1165 RESERVOIR, REAR MASTER CYLINDER
    RESERVOIR, REAR MASTER CYLINDER
  • 49091
    49091-0001 WASHER-SEAL, 10.1X14.5X1.5
    WASHER-SEAL, 10.1X14.5X1.5
  • 92001
    92001-1860 BOLT, W/P, 6X16
    BOLT, W/P, 6X16
  • 92022
    92022-1601 WASHER, CIRCRIP
    WASHER, CIRCRIP
  • 92033
    92033-1186 RING-SNAP, 20.5MM
    RING-SNAP, 20.5MM
  • 92037
    92037-1498 CLAMP, REAR BRAKE HOSE
    CLAMP, REAR BRAKE HOSE
  • 92037A
    92037-1547 CLAMP, BRAKE HOSE
    CLAMP, BRAKE HOSE
  • 92037B
    92037-1827 CLAMP, HOSE
    CLAMP, HOSE
  • 92043
    92043-1013 PIN, 8X16
    PIN, 8X16
  • 92055
    92055-1251 RING-O, MASTER CYLINDER
    RING-O, MASTER CYLINDER
  • 92081
    92081-1737 SPRING, MASTER CYLINDER
    SPRING, MASTER CYLINDER
  • 92150
    92150-1843 BOLT, SOCKET, 8X30
    BOLT, SOCKET, 8X30
  • 92153
    92153-0627 BOLT, OIL, L=23
    BOLT, OIL, L=23
