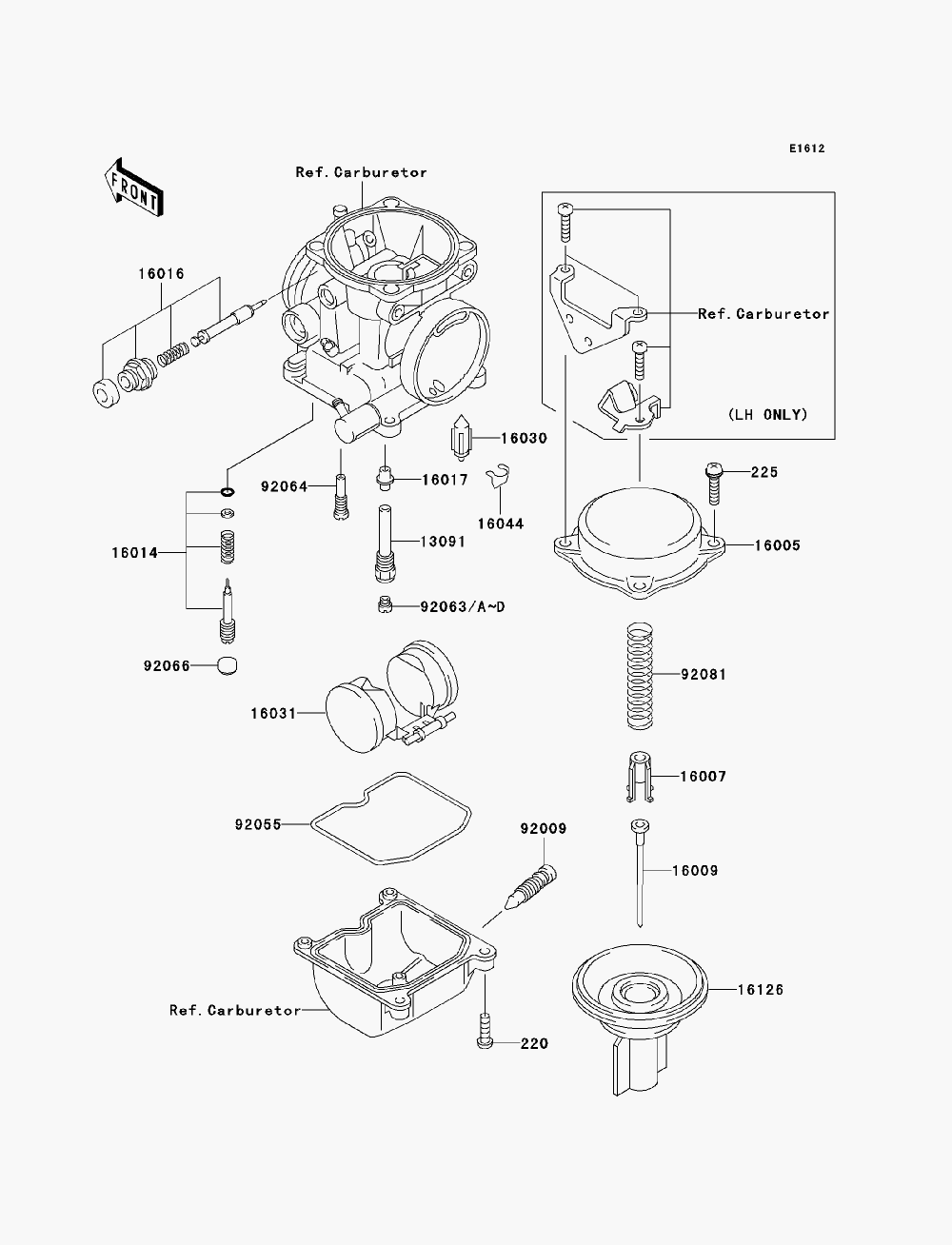

CARBURETOR PARTS для Kawasaki NINJA 250R (EX250F7F) - 2007 года выпуска
-
№АртикулНазвание
-
220220D0414 SCREW-PAN-CROS, 4X14SCREW-PAN-CROS, 4X14
-
225225C0418 SCREW-PAN-WSP-CROS, 4X18SCREW-PAN-WSP-CROS, 4X18
-
1309113091-1425 HOLDER, NEEDLE JETHOLDER, NEEDLE JET
-
1600516005-1056 TOP-CHAMBER, MIXINGTOP-CHAMBER, MIXING
-
1600716007-1120 SEAT-SPRING, THROTTLE VALVESEAT-SPRING, THROTTLE VALVE
-
1600916009-1461 NEEDLE-JET, N16INEEDLE-JET, N16I
-
1601416014-1081 SCREW-PILOT AIRSCREW-PILOT AIR
-
1601616016-1090 PLUNGER, STARTERPLUNGER, STARTER
-
1601716017-1326 JET-NEEDLEJET-NEEDLE
-
1603016030-1007 VALVE-FLOATVALVE-FLOAT
-
1603116031-1077 FLOATFLOAT
-
1604416044-007 CLAMP, FLOAT VALVECLAMP, FLOAT VALVE
-
1612616126-1198 VALVE, VACUUMVALVE, VACUUM
-
9200992009-1551 SCREW, DRAIN, 6X0.75SCREW, DRAIN, 6X0.75
-
9205592055-1222 O-RING, FLOAT CHAMBERO-RING, FLOAT CHAMBER
-
9206392063-1008 JET-MAIN, #100 (OPTION)JET-MAIN, #100 (OPTION)
-
92063A92063-1009 JET-MAIN, #105JET-MAIN, #105
-
92063B92063-1114 JET-MAIN, #110 (OPTION)JET-MAIN, #110 (OPTION)
-
92063C92063-1115 JET-MAIN, #102 (OPTION)JET-MAIN, #102 (OPTION)
-
92063D92063-1116 JET-MAIN, #108 (OPTION)JET-MAIN, #108 (OPTION)
-
9206492064-1050 JET-PILOT, #38JET-PILOT, #38
-
9206692066-1051 PLUG, PILOT AIR SCREW, 6.9X2PLUG, PILOT AIR SCREW, 6.9X2
-
9208192081-1925 SPRING, VACUUM VALVESPRING, VACUUM VALVE
