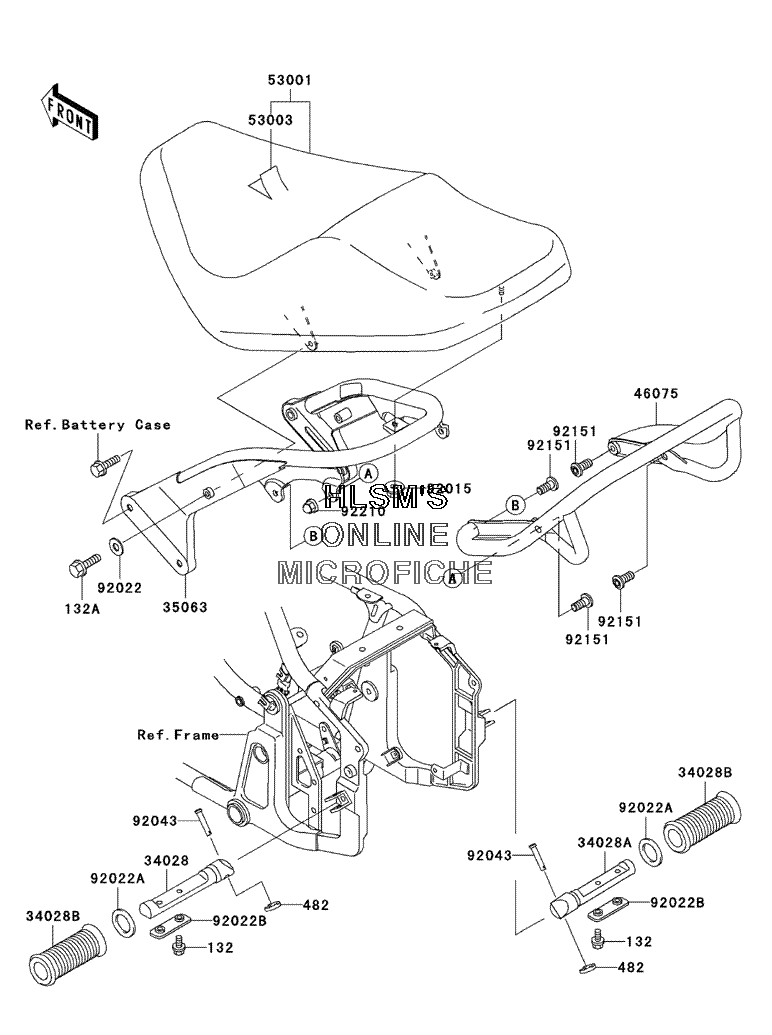

SEAT для Kawasaki Vulcan 800 Drifter - 2006 года выпуска

  • №
    Артикул
    Название
  • 132
    132J0510 BOLT, FLANGED, SMALL, 5X10
    BOLT, FLANGED, SMALL, 5X10
  • 132A
    132J0650 BOLT, FLANGED, SMALL, 6X50
    BOLT, FLANGED, SMALL, 6X50
  • 482
    482L7000 CIRCLIP, TYPE, E
    CIRCLIP, TYPE, E
  • 34028
    34028-1219 STEP, REAR (LEFT)
    STEP, REAR (LEFT)
  • 34028A
    34028-1220 STEP, REAR (RIGHT)
    STEP, REAR (RIGHT)
  • 34028B
    34028-1221 STEP, REAR, RUBBER
    STEP, REAR, RUBBER
  • 35063
    35063-1084 STAY, SEAT
    STAY, SEAT
  • 46075
    46075-1186 GRIP
    GRIP
  • 53001
    53001-1898-MA SEAT, ASSY, DUAL (BLACK)
    SEAT, ASSY, DUAL (BLACK)
  • 53003
    53003-1432-MA LEATHER, SEAT (BLACK)
    LEATHER, SEAT (BLACK)
  • 92015
    92015-1603 NUT, LOCK, FLANGED, 6MM
    NUT, LOCK, FLANGED, 6MM
  • 92022
    92022-1344 WASHER, 7X16X1.2
    WASHER, 7X16X1.2
  • 92022A
    92022-1568 WASHER, 20X30X2.3
    WASHER, 20X30X2.3
  • 92022B
    92022-1874 WASHER, STEP
    WASHER, STEP
  • 92043
    92043-1339 PIN, 8X36.5
    PIN, 8X36.5
  • 92151
    92151-1577 BOLT, SOCKET, 10X22
    BOLT, SOCKET, 10X22
  • 92210
    92210-1189 NUT, CAP, 10MM
    NUT, CAP, 10MM
