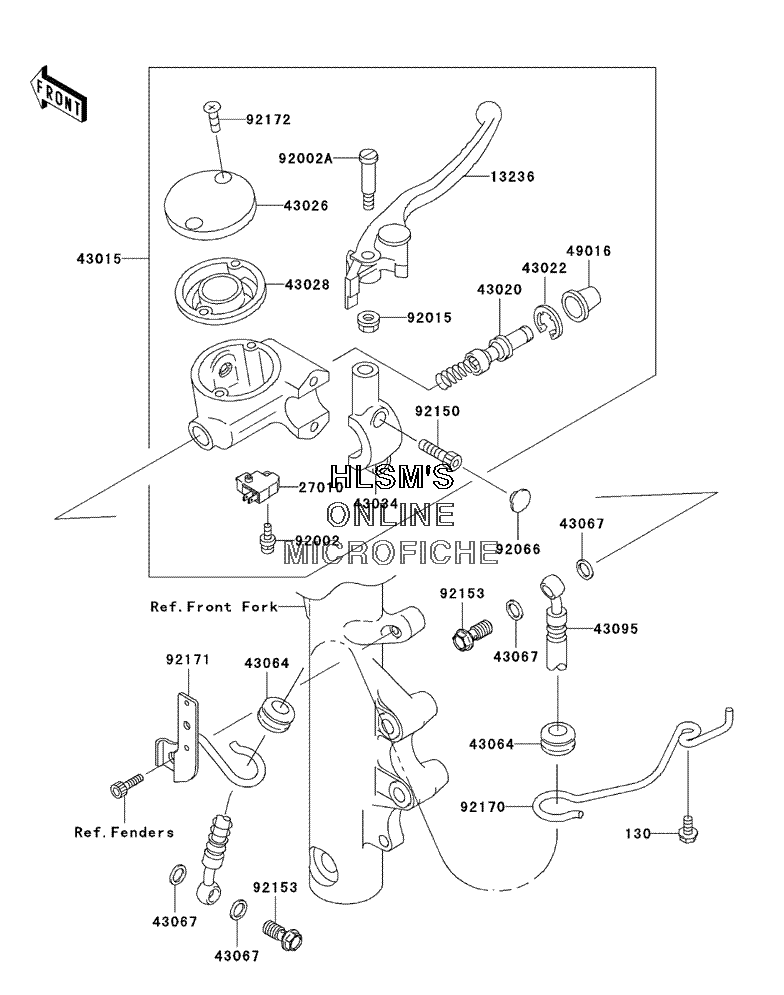

BRAKE - MASTER CYLINDER - FRONT для Kawasaki Vulcan 800 Drifter - 2006 года выпуска

  • №
    Артикул
    Название
  • 130
    130J0612 BOLT, FLANGED, 6X12
    BOLT, FLANGED, 6X12
  • 13236
    13236-1315 LEVER, COMP, FRONTONT BRAKE
    LEVER, COMP, FRONTONT BRAKE
  • 27010
    27010-0025 SWITCH, BRAKE
    SWITCH, BRAKE
  • 43015
    43015-0053 CYLINDER, ASSY, MASTER, FRONT
    CYLINDER, ASSY, MASTER, FRONT
  • 43020
    43020-1056 PISTON, COMP, BRAKE, FRONT
    PISTON, COMP, BRAKE, FRONT
  • 43022
    43022-1010 STOPPER, BRAKE, PISTON
    STOPPER, BRAKE, PISTON
  • 43026
    43026-1083 CAP, BRAKE
    CAP, BRAKE
  • 43028
    43028-1071 DIAPHRAGM, MASTER CYLINDER
    DIAPHRAGM, MASTER CYLINDER
  • 43034
    43034-1147 HOLDER, BRAKE
    HOLDER, BRAKE
  • 43064
    43064-006 GROMMET, HOSE CLAMP
    GROMMET, HOSE CLAMP
  • 43067
    43067-001 WASHER, 10.5X15X1.5
    WASHER, 10.5X15X1.5
  • 43095
    43095-1125 HOSE, BRAKE, FRONT
    HOSE, BRAKE, FRONT
  • 49016
    49016-1044 COVER, SEAL, MASTER CYLINDER
    COVER, SEAL, MASTER CYLINDER
  • 92002
    92002-1323 BOLT, SCREW, 4X12
    BOLT, SCREW, 4X12
  • 92002A
    92002-1561 BOLT, LEVER SET
    BOLT, LEVER SET
  • 92015
    92015-1528 NUT, FLANGED, 6MM
    NUT, FLANGED, 6MM
  • 92066
    92066-1301 PLUG
    PLUG
  • 92150
    92150-1025 BOLT, SOCKET, 6MM
    BOLT, SOCKET, 6MM
  • 92153
    92153-0627 BOLT, OIL, L=23
    BOLT, OIL, L=23
  • 92170
    92170-1978 CLAMP, HOSE
    CLAMP, HOSE
  • 92171
    92171-1291 CLAMP, BRAKE HOSE
    CLAMP, BRAKE HOSE
  • 92172
    92172-0089 SCREW, 5MM
    SCREW, 5MM
