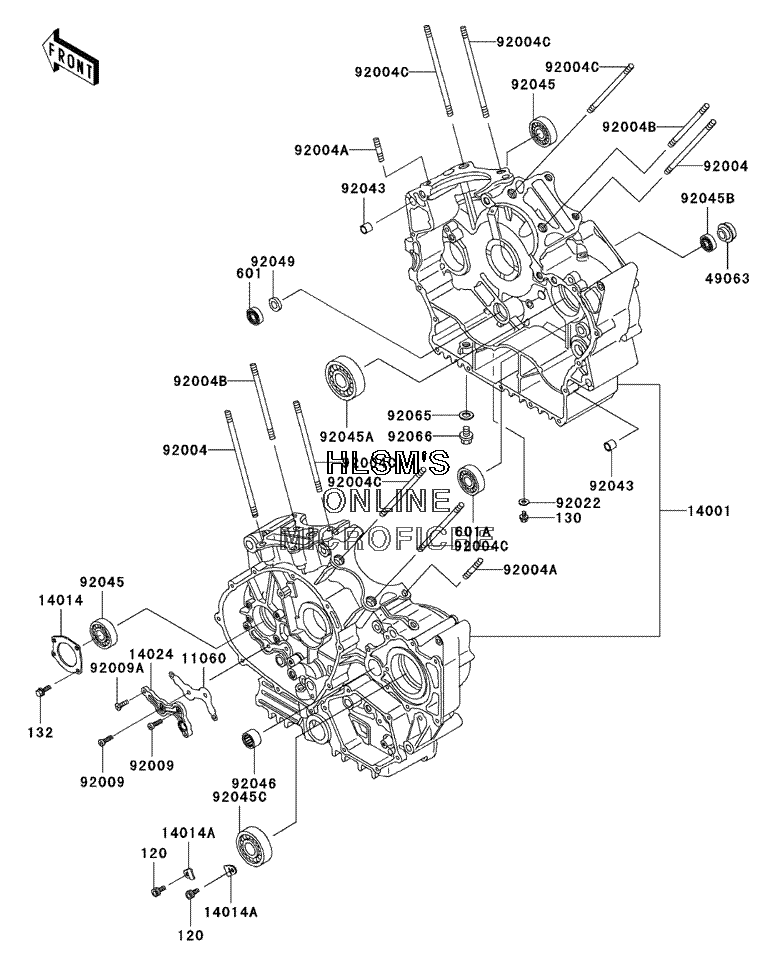

CRANKCASE для Kawasaki Vulcan 800 Drifter - 2006 года выпуска

  • №
    Артикул
    Название
  • 120
    120S0612 BOLT, SOCKET, 6X12
    BOLT, SOCKET, 6X12
  • 130
    130J0610 BOLT, FLANGED, 6X10
    BOLT, FLANGED, 6X10
  • 132
    132G0616 BOLT, FLANGED, SMALL, 6X16
    BOLT, FLANGED, SMALL, 6X16
  • 601
    601A6001 BEARING, BALL
    BEARING, BALL
  • 601A
    601A6204Z BEARING, BALL
    BEARING, BALL
  • 11060
    11060-1087 GASKET, OIL LINE COVER
    GASKET, OIL LINE COVER
  • 14001
    14001-5342 SET, CRANKCASE
    SET, CRANKCASE
  • 14014
    14014-1068 PLATE, POSITION
    PLATE, POSITION
  • 14014A
    14014-1121 PLATE, POSITION
    PLATE, POSITION
  • 14024
    14024-1074 COVER, OIL LINE
    COVER, OIL LINE
  • 49063
    49063-1057 SEAL, MECHANICAL
    SEAL, MECHANICAL
  • 92004
    92004-1035 STUD, 8X165.5
    STUD, 8X165.5
  • 92004A
    92004-1142 STUD, 8X28.5
    STUD, 8X28.5
  • 92004B
    92004-1220 STUD, 10X148
    STUD, 10X148
  • 92004C
    92004-1221 STUD, 10X160
    STUD, 10X160
  • 92009
    92009-1266 SCREW, PAN, CROS, 6X16
    SCREW, PAN, CROS, 6X16
  • 92009A
    92009-1447 SCREW, 6X20
    SCREW, 6X20
  • 92022
    92022-077 WASHER, 6.1X12X1
    WASHER, 6.1X12X1
  • 92043
    92043-1266 PIN, 11X14X12.3
    PIN, 11X14X12.3
  • 92045
    92045-1041 BEARING, BALL, TMB204 JR
    BEARING, BALL, TMB204 JR
  • 92045A
    92045-1137 BEARING, BALL, TMB305
    BEARING, BALL, TMB305
  • 92045B
    92045-1151 BEARING, BALL, 6001JRXLLU/5K
    BEARING, BALL, 6001JRXLLU/5K
  • 92045C
    92045-1167 BEARING, BALL, TMB305X3
    BEARING, BALL, TMB305X3
  • 92046
    92046-1239 BEARING, NEEDLE
    BEARING, NEEDLE
  • 92049
    92049-1228 SEAL, OIL, SC 12X22X5
    SEAL, OIL, SC 12X22X5
  • 92065
    92065-097 GASKET, 12X22X2
    GASKET, 12X22X2
  • 92066
    92066-1174 PLUG, OIL DRAIN, 12X15
    PLUG, OIL DRAIN, 12X15
