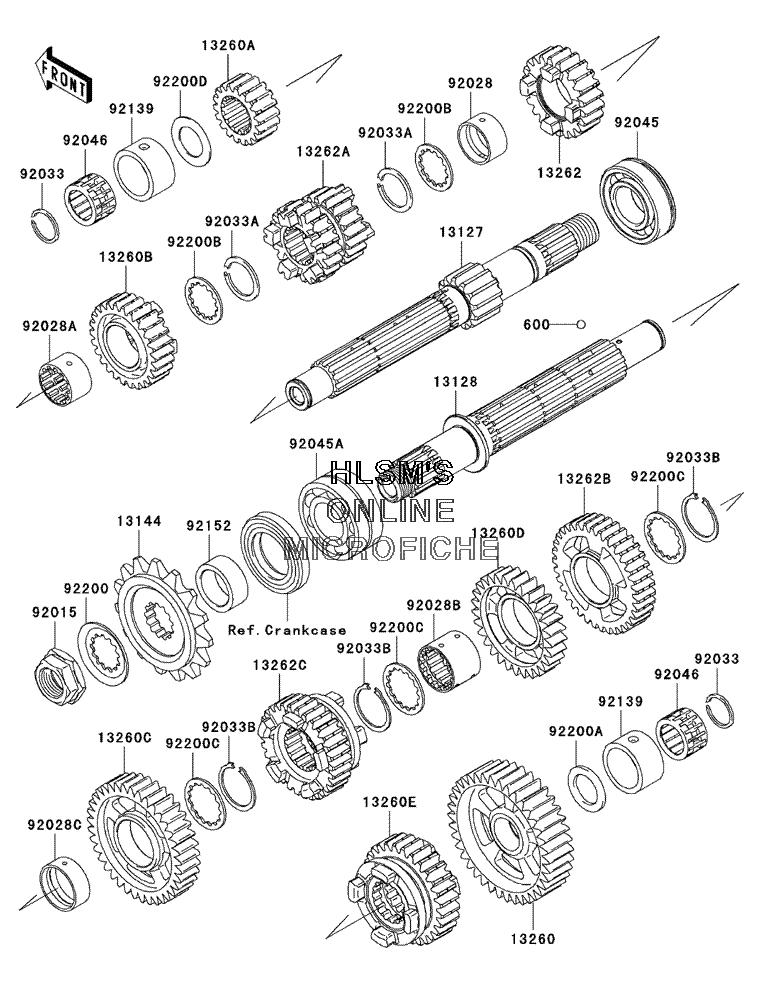

TRANSMISSION для Kawasaki NINJA ZX-6R - 2006 года выпуска

  • №
    Артикул
    Название
  • 600
    600A0500 BALL, STEEL, 5/32"
    BALL, STEEL, 5/32"
  • 13127
    13127-0021 SHAFT, TRANSMISSION INPUT (13 TEETH)
    SHAFT, TRANSMISSION INPUT (13 TEETH)
  • 13128
    13128-0018 SHAFT, TRANSMISSION OUTPUT
    SHAFT, TRANSMISSION OUTPUT
  • 13144
    13144-1324 SPROCKET, OUTPUT (15 TEETH)
    SPROCKET, OUTPUT (15 TEETH)
  • 13260
    13260-1456 GEAR, OUTPUT LOW (38 TEETH)
    GEAR, OUTPUT LOW (38 TEETH)
  • 13260A
    13260-1987 GEAR, INPUT 2ND (18 TEETH)
    GEAR, INPUT 2ND (18 TEETH)
  • 13260B
    13260-1990 GEAR, INPUT TOP (26 TEETH)
    GEAR, INPUT TOP (26 TEETH)
  • 13260C
    13260-1992 GEAR, OUTPUT 2ND (37 TEETH)
    GEAR, OUTPUT 2ND (37 TEETH)
  • 13260D
    13260-1994 GEAR, OUTPUT 4TH (29 TEETH)
    GEAR, OUTPUT 4TH (29 TEETH)
  • 13260E
    13260-1995 GEAR, OUTPUT 5TH (28 TEETH)
    GEAR, OUTPUT 5TH (28 TEETH)
  • 13262
    13262-0110 GEAR, INPUT, 5TH (22 TEETH)
    GEAR, INPUT, 5TH (22 TEETH)
  • 13262A
    13262-0236 GEAR, INPUT 3RD AND 4TH (21/20 TEETH)
    GEAR, INPUT 3RD AND 4TH (21/20 TEETH)
  • 13262B
    13262-0237 GEAR, OUTPUT 3RD (35 TEETH)
    GEAR, OUTPUT 3RD (35 TEETH)
  • 13262C
    13262-0254 GEAR, OUTPUT TOP (30 TEETH)
    GEAR, OUTPUT TOP (30 TEETH)
  • 92015
    92015-1963 NUT, 20MM
    NUT, 20MM
  • 92028
    92028-1735 BUSHING, INPUT 5TH GEAR
    BUSHING, INPUT 5TH GEAR
  • 92028A
    92028-1736 BUSHING, INPUT TOP GEAR
    BUSHING, INPUT TOP GEAR
  • 92028B
    92028-1738 BUSHING, OUTPUT, 3RD AND 4TH
    BUSHING, OUTPUT, 3RD AND 4TH
  • 92028C
    92028-1739 BUSHING, OUTPUT, 2ND
    BUSHING, OUTPUT, 2ND
  • 92033
    92033-015 RING, SNAP, 20MM
    RING, SNAP, 20MM
  • 92033A
    92033-026 RING, SNAP, 24MM
    RING, SNAP, 24MM
  • 92033B
    92033-1037 RING, SNAP, 25.9X30.6X1.2
    RING, SNAP, 25.9X30.6X1.2
  • 92045
    92045-0009 BEARING, BALL, HR6205C3
    BEARING, BALL, HR6205C3
  • 92045A
    92045-035 BEARING, BALL, 83993SH2, CS
    BEARING, BALL, 83993SH2, CS
  • 92046
    92046-0014 BEARING, NEEDLE, BN502053
    BEARING, NEEDLE, BN502053
  • 92139
    92139-1090 BUSHING, 27X34X18.6
    BUSHING, 27X34X18.6
  • 92152
    92152-0280 COLLAR, 23X32X15
    COLLAR, 23X32X15
  • 92200
    92200-1065 WASHER
    WASHER
  • 92200A
    92200-1238 WASHER, 20.3X30X2.3
    WASHER, 20.3X30X2.3
  • 92200B
    92200-1239 WASHER, 25.2X31.0X1.5
    WASHER, 25.2X31.0X1.5
  • 92200C
    92200-1240 WASHER, 28.5X34.0X1.5
    WASHER, 28.5X34.0X1.5
  • 92200D
    92200-1613 WASHER, 20.3X33X1.0
    WASHER, 20.3X33X1.0
