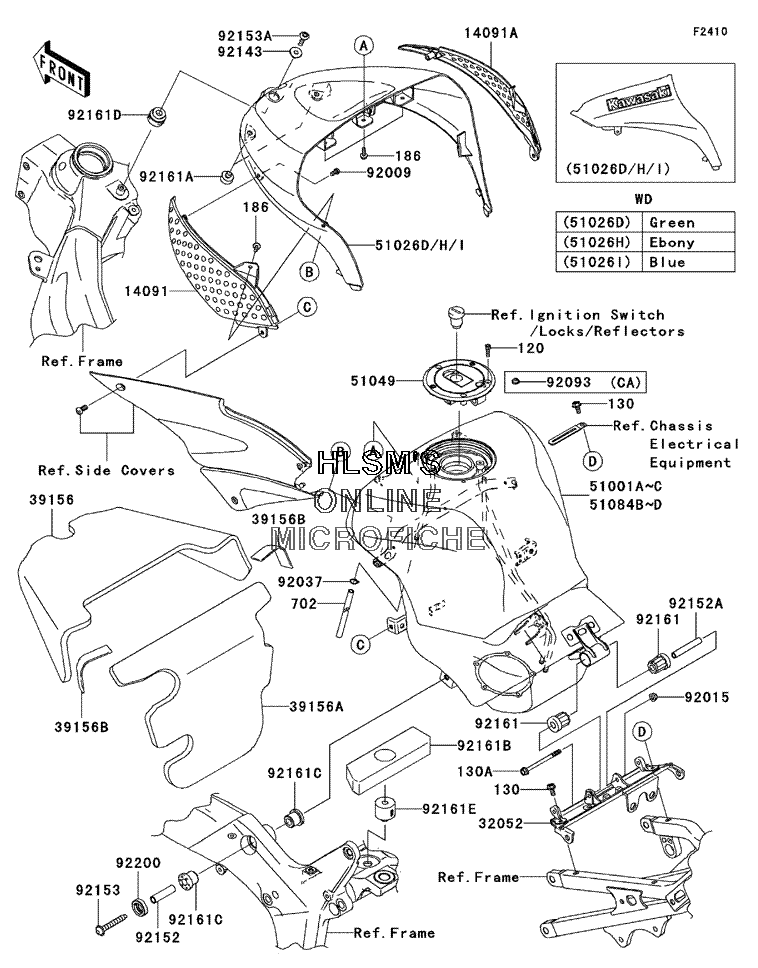

FUEL TANK для Kawasaki NINJA ZX-6R - 2006 года выпуска

  • №
    Артикул
    Название
  • 14091
    14091-0324 COVER, KNEE GRIP (LEFT)
    COVER, KNEE GRIP (LEFT)
  • 14091A
    14091-0325 COVER, KNEE GRIP (RIGHT)
    COVER, KNEE GRIP (RIGHT)
  • 32052
    32052-0033 BRACKET-TANK
    BRACKET-TANK
  • 39156
    39156-0079 PAD, FUEL TANK COVER
    PAD, FUEL TANK COVER
  • 39156A
    39156-0080 PAD, FUEL TANK
    PAD, FUEL TANK
  • 39156B
    39156-0096 PAD, FUEL TANK COVER
    PAD, FUEL TANK COVER
  • 51001A
    51001-0085-H8 TANK-COMP-FUEL (EBONY) (EXCEPT CALIF.)
    TANK-COMP-FUEL (EBONY) (EXCEPT CALIF.)
  • 51001B
    51001-0085-10E TANK-COMP-FUEL (BLUE) (EXCEPT CALIF.)
    TANK-COMP-FUEL (BLUE) (EXCEPT CALIF.)
  • 51001C
    51001-0085-777 TANK-COMP-FUEL (L.GREEN) (EXCEPT CALIF.)
    TANK-COMP-FUEL (L.GREEN) (EXCEPT CALIF.)
  • 51026D
    51026-5031-777 COVER TANK (L.GREEN)
    COVER TANK (L.GREEN)
  • 51026H
    51026-5038-H8 COVER TANK (EBONY)
    COVER TANK (EBONY)
  • 51026I
    51026-5039-10E COVER TANK (BLUE)
    COVER TANK (BLUE)
  • 51049
    51049-0010 CAP-TANK, FUEL
    CAP-TANK, FUEL
  • 51084B
    51084-5098-H8 TANK-COMP-FUEL (EBONY) (CALIF, ONLY)
    TANK-COMP-FUEL (EBONY) (CALIF, ONLY)
  • 51084C
    51084-5098-10E TANK-COMP-FUEL (BLUE) (CALIF, ONLY)
    TANK-COMP-FUEL (BLUE) (CALIF, ONLY)
  • 51084D
    51084-5098-777 TANK-COMP-FUEL (L.GREEN) (CALIF, ONLY)
    TANK-COMP-FUEL (L.GREEN) (CALIF, ONLY)
  • 92009
    92009-1319 SCREW, TAPPING, 5X12
    SCREW, TAPPING, 5X12
  • 92015
    92015-1675 NUT, LOCK, FLANGED, 6MM
    NUT, LOCK, FLANGED, 6MM
  • 92037
    92037-010 CLAMP, TUBE
    CLAMP, TUBE
  • 92093
    92093-1030 SEAL, FUEL TANK CAP (CALIF, ONLY)
    SEAL, FUEL TANK CAP (CALIF, ONLY)
  • 120
    120S0516 BOLT-SOCKET, 5X16
    BOLT-SOCKET, 5X16
  • 130
    130H0614 BOLT-FLANGED, 6X14
    BOLT-FLANGED, 6X14
  • 130A
    130H0680 BOLT-FLANGED, 6X80
    BOLT-FLANGED, 6X80
  • 186
    186H0514 BOLT-UPSET-WP, 5X14
    BOLT-UPSET-WP, 5X14
  • 702
    702A06850 TUBE-RUBBER, 6X850
    TUBE-RUBBER, 6X850
  • 92143
    92143-1016 COLLAR, L=9.6
    COLLAR, L=9.6
  • 92152
    92152-0271 COLLAR, 8.8X12X46.5
    COLLAR, 8.8X12X46.5
  • 92152A
    92152-1182 COLLAR, 6.8X10X60
    COLLAR, 6.8X10X60
  • 92153
    92153-0879 BOLT, SOCKET, 8X65
    BOLT, SOCKET, 8X65
  • 92153A
    92153-1267 BOLT, SOCKET, 6X23
    BOLT, SOCKET, 6X23
  • 92161
    92161-0207 DAMPER, FUEL TANK (REAR)
    DAMPER, FUEL TANK (REAR)
  • 92161A
    92161-0223 DAMPER
    DAMPER
  • 92161B
    92161-0262 DAMPER
    DAMPER
  • 92161C
    92161-0274 DAMPER, FUEL TANK, SIDE
    DAMPER, FUEL TANK, SIDE
  • 92161D
    92161-0287 DAMPER
    DAMPER
  • 92161E
    92161-1116 DAMPER
    DAMPER
  • 92200
    92200-0197 WASHER, FUEL TANK, SIDE
    WASHER, FUEL TANK, SIDE
