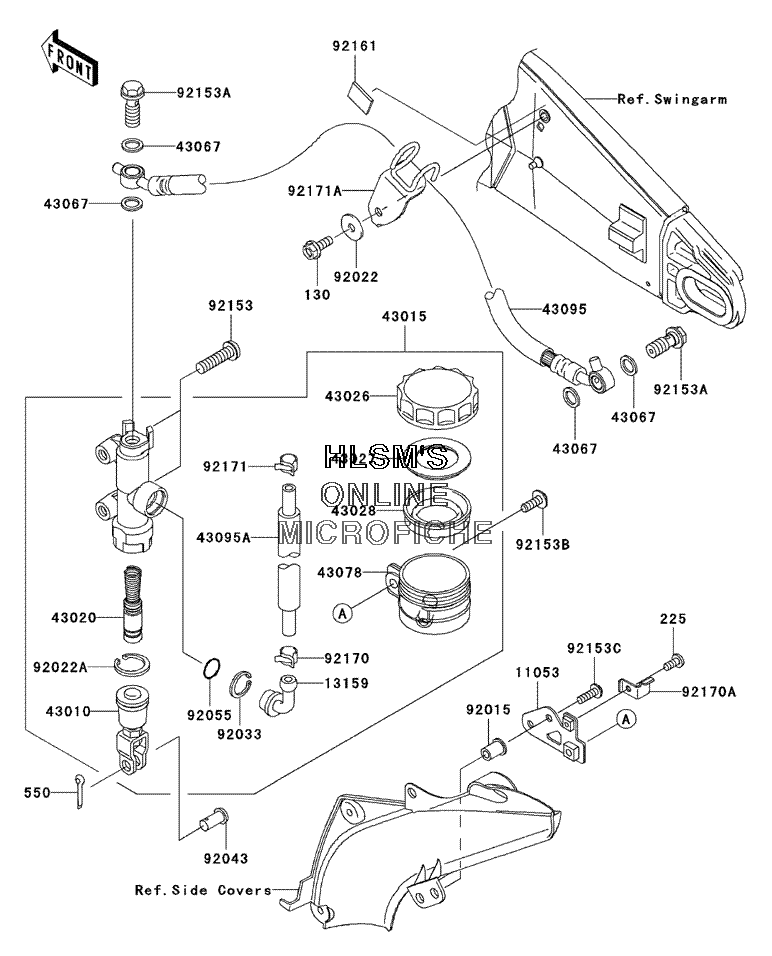

BRAKE - MASTER CYLINDER - REAR для Kawasaki NINJA ZX-6R - 2006 года выпуска

  • №
    Артикул
    Название
  • 130
    130L0616 BOLT, FLANGED, 6X16
    BOLT, FLANGED, 6X16
  • 225
    225F0412 SCREW, PAN, WSP, CROS, 4X12
    SCREW, PAN, WSP, CROS, 4X12
  • 550
    550D2015 PIN, COTTER, 2.0X15
    PIN, COTTER, 2.0X15
  • 11053
    11053-1398 BRACKET, RESERVOIR TANK, REAR
    BRACKET, RESERVOIR TANK, REAR
  • 13159
    13159-1056 CONNECTOR
    CONNECTOR
  • 43010
    43010-1062 ROD, ASSY, BRAKE
    ROD, ASSY, BRAKE
  • 43015
    43015-0033 CYLINDER, ASSY, MASTER, REAR
    CYLINDER, ASSY, MASTER, REAR
  • 43020
    43020-1094 PISTON, COMP, BRAKE
    PISTON, COMP, BRAKE
  • 43026
    43026-1051 CAP, BRAKE
    CAP, BRAKE
  • 43027
    43027-1051 PLATE, DIAPHRAGM
    PLATE, DIAPHRAGM
  • 43028
    43028-1057 DIAPHRAGM, MASTER CYLINDER
    DIAPHRAGM, MASTER CYLINDER
  • 43067
    43067-001 WASHER, 10.5X15X1.5
    WASHER, 10.5X15X1.5
  • 43078
    43078-1165 RESERVOIR, REAR MASTER CYLINDER
    RESERVOIR, REAR MASTER CYLINDER
  • 43095
    43095-0070 HOSE, BRAKE, REAR
    HOSE, BRAKE, REAR
  • 43095A
    43095-0170 HOSE, BRAKE, REAR MASTER CYLINDER
    HOSE, BRAKE, REAR MASTER CYLINDER
  • 92015
    92015-1757 NUT, WELL, 5MM
    NUT, WELL, 5MM
  • 92022
    92022-1346 WASHER, 6.5X20X1.6 (BLACK)
    WASHER, 6.5X20X1.6 (BLACK)
  • 92022A
    92022-1601 WASHER, CIRCRIP
    WASHER, CIRCRIP
  • 92033
    92033-1186 RING, SNAP, 20.5MM
    RING, SNAP, 20.5MM
  • 92043
    92043-1303 PIN, 8MM
    PIN, 8MM
  • 92055
    92055-1251 O-RING, MASTER CYLINDER
    O-RING, MASTER CYLINDER
  • 92153
    92153-0393 BOLT, SOCKET, 8X30
    BOLT, SOCKET, 8X30
  • 92153A
    92153-0627 BOLT, OIL, L=23
    BOLT, OIL, L=23
  • 92153B
    92153-0817 BOLT, 8X16
    BOLT, 8X16
  • 92153C
    92153-1244 BOLT, SOCKET, 5X16
    BOLT, SOCKET, 5X16
  • 92161
    92161-0273 DAMPER
    DAMPER
  • 92170
    92170-1091 CLAMP, HOSE
    CLAMP, HOSE
  • 92170A
    92170-1879 CLAMP, RESERVOIR TANK CAP
    CLAMP, RESERVOIR TANK CAP
  • 92171
    92171-0463 CLAMP, HOSE
    CLAMP, HOSE
  • 92171A
    92171-0480 CLAMP, BRAKE HOSE
    CLAMP, BRAKE HOSE
