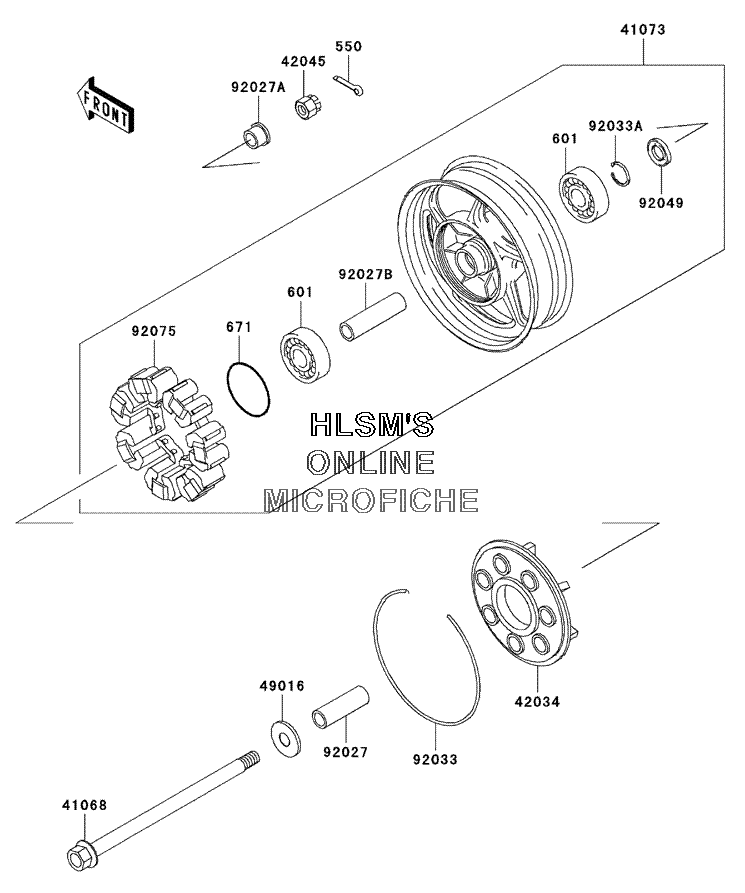

WHEEL - REAR W/ CHAIN для Kawasaki Concours - 2006 года выпуска

  • №
    Артикул
    Название
  • 550
    550D4035 PIN, COTTER, 4.0X35
    PIN, COTTER, 4.0X35
  • 601
    601B6304UU BEARING, BALL, #6304UUC3
    BEARING, BALL, #6304UUC3
  • 671
    671B2580 O-RING, 80MM
    O-RING, 80MM
  • 41068
    41068-1197 AXLE (REAR)
    AXLE (REAR)
  • 41073
    41073-1549-GE WHEEL, ASSY (REAR) (G.GRAY)
    WHEEL, ASSY (REAR) (G.GRAY)
  • 42034
    42034-0002 COUPLING, REAR HUB
    COUPLING, REAR HUB
  • 42045
    42045-018 NUT, CASTLE, 18MM
    NUT, CASTLE, 18MM
  • 49016
    49016-1019 COVER, SEAL
    COVER, SEAL
  • 92027
    92027-1553 COLLAR, 20.2X28X89
    COLLAR, 20.2X28X89
  • 92027A
    92027-1792 COLLAR, REAR AXLE, L=20
    COLLAR, REAR AXLE, L=20
  • 92027B
    92027-1901 COLLAR, 20.2X28X105.5
    COLLAR, 20.2X28X105.5
  • 92033
    92033-1019 RING, SNAP
    RING, SNAP
  • 92033A
    92033-1043 RING, SNAP, 52MM
    RING, SNAP, 52MM
  • 92049
    92049-1061 SEAL, OIL, 28X52X5
    SEAL, OIL, 28X52X5
  • 92075
    92075-1121 DAMPER, SHOCK, REAR HUB
    DAMPER, SHOCK, REAR HUB
