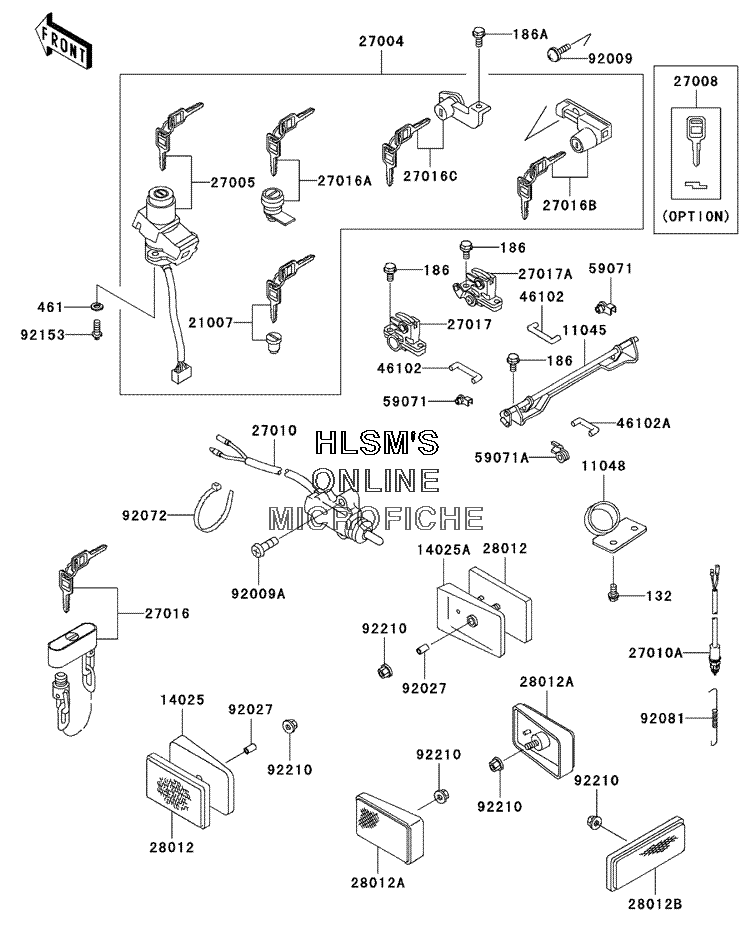

IGNITION SWITCH W/ LOCKS AND REFLECTORS для Kawasaki Concours - 2006 года выпуска`
-
№АртикулНазвание
-
132132J0612 BOLT, FLANGED, SMALL, 6X12BOLT, FLANGED, SMALL, 6X12
-
186186C0614 BOLT, UPSET, WP, 6X14BOLT, UPSET, WP, 6X14
-
186A186C0616 BOLT, UPSET, WP, 6X16BOLT, UPSET, WP, 6X16
-
461461L0600 WASHER, SPRINGWASHER, SPRING
-
1104511045-1544 BRACKET, SEAT LOCKBRACKET, SEAT LOCK
-
1104811048-1451 BRACKET, IGNITION GUARDBRACKET, IGNITION GUARD
-
1402514025-1886 COVER, REFLECTOR (FRONT)COVER, REFLECTOR (FRONT)
-
14025A14025-1887 COVER, REFLECTOR (FRONT)COVER, REFLECTOR (FRONT)
-
2100721007-5037 ROTOR, LOCK, TANK CAPROTOR, LOCK, TANK CAP
-
2700427004-5474 SWITCH, ASSYSWITCH, ASSY
-
2700527005-5101 SWITCH, ASSY, IGNITIONSWITCH, ASSY, IGNITION
-
2700827008-1173 KEY, LOCK, BLANK (OPTION)KEY, LOCK, BLANK (OPTION)
-
2701027010-1220 SWITCH, SIDE STANDSWITCH, SIDE STAND
-
27010A27010-1474 SWITCH, REAR BRAKESWITCH, REAR BRAKE
-
2701627016-1051 LOCK, ASSY, WHEELLOCK, ASSY, WHEEL
-
27016A27016-5204 LOCK, ASSY, TOOL BOXLOCK, ASSY, TOOL BOX
-
27016B27016-5211 LOCK, ASSY, HELMETLOCK, ASSY, HELMET
-
27016C27016-5221 LOCK, ASSY, SEATLOCK, ASSY, SEAT
-
2701727017-1112 LOCK, SEAT (LEFT)LOCK, SEAT (LEFT)
-
27017A27017-1113 LOCK, SEAT (RIGHT)LOCK, SEAT (RIGHT)
-
2801228012-1052 REFLECTOR, REFLEX (FRONT)REFLECTOR, REFLEX (FRONT)
-
28012A28012-1056 REFLECTOR, REFLEX (REAR)REFLECTOR, REFLEX (REAR)
-
28012B28012-1088 REFLECTOR, REFLEXREFLECTOR, REFLEX
-
4610246102-1187 ROD, SEAT LOCK (FRONT)ROD, SEAT LOCK (FRONT)
-
46102A46102-1188 ROD, SEAT LOCK (REAR)ROD, SEAT LOCK (REAR)
-
5907159071-1103 JOINTJOINT
-
59071A59071-1125 JOINTJOINT
-
9200992009-1401 SCREW, 5X12SCREW, 5X12
-
92009A92009-1459 SCREW, 5X20SCREW, 5X20
-
9202792027-1789 COLLAR, 5X8X14.5COLLAR, 5X8X14.5
-
9207292072-1195 BAND, L=202BAND, L=202
-
9208192081-1990 SPRING, BRAKE LAMP SWITCHSPRING, BRAKE LAMP SWITCH
-
9215392153-0967 BOLT, TORX, 6X16BOLT, TORX, 6X16
-
9221092210-0007 NUT, FLANGED, 5MMNUT, FLANGED, 5MM
