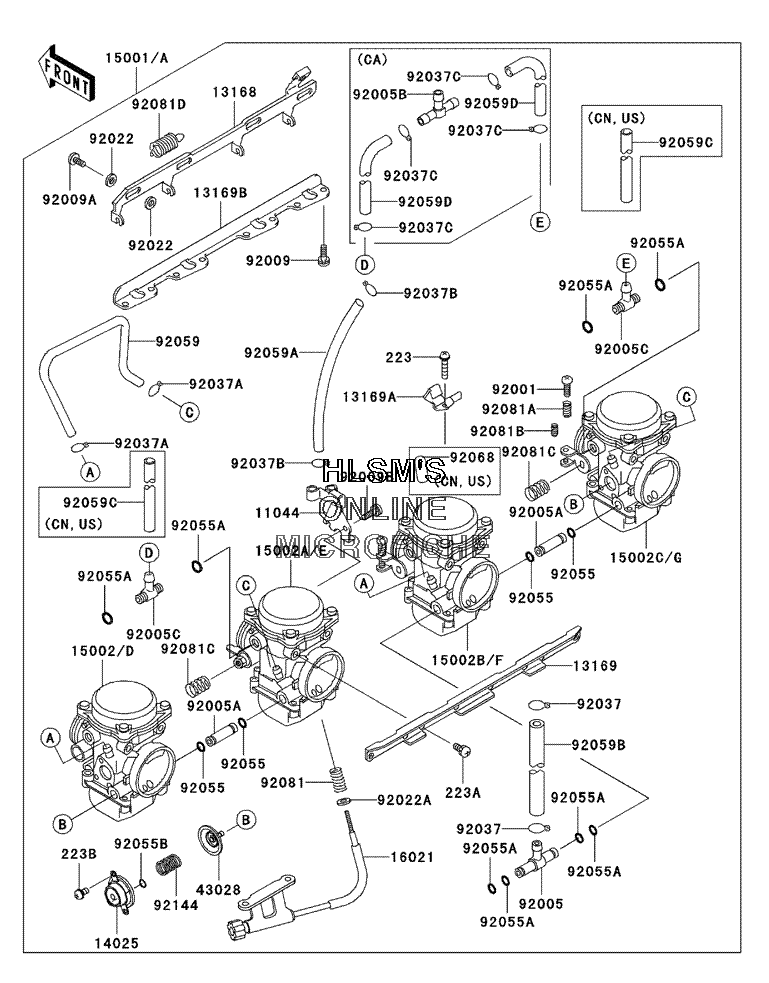

CARBURETOR для Kawasaki Concours - 2006 года выпуска

  • №
    Артикул
    Название
  • 11044
    11044-1546 BRACKET, THROTTLE CABLE
    BRACKET, THROTTLE CABLE
  • 13168
    13168-1245 LEVER, STARTER
    LEVER, STARTER
  • 13169
    13169-1869 PLATE, CARBURETOR STAY (UPPER)
    PLATE, CARBURETOR STAY (UPPER)
  • 13169A
    13169-1871 PLATE, STARTER CABLE
    PLATE, STARTER CABLE
  • 13169B
    13169-1873 PLATE, CARBURETOR STAY (LOWER) 6MM
    PLATE, CARBURETOR STAY (LOWER) 6MM
  • 14025
    14025-1903 COVER, AIR CUT VALVE
    COVER, AIR CUT VALVE
  • 15001
    15001-1251 CARBURETOR, ASSY (EXCEPT CALIF.)
    CARBURETOR, ASSY (EXCEPT CALIF.)
  • 15001A
    15001-1252 CARBURETOR, ASSY (CALIF. ONLY)
    CARBURETOR, ASSY (CALIF. ONLY)
  • 15002
    15002-1362 CARBURETOR, LEFT OUTSIDE (EXCEPT CALIF.)
    CARBURETOR, LEFT OUTSIDE (EXCEPT CALIF.)
  • 15002A
    15002-1363 CARBURETOR, LEFT INSIDE (EXCEPT CALIF.)
    CARBURETOR, LEFT INSIDE (EXCEPT CALIF.)
  • 15002B
    15002-1364 CARBURETOR, RIGHT INSIDE (EXCEPT CALIF.)
    CARBURETOR, RIGHT INSIDE (EXCEPT CALIF.)
  • 15002C
    15002-1365 CARBURETOR, RIGHT OUTSIDE (EXCEPT CALIF.)
    CARBURETOR, RIGHT OUTSIDE (EXCEPT CALIF.)
  • 15002D
    15002-1366 CARBURETOR, LEFT OUTSIDE (CALIF. ONLY)
    CARBURETOR, LEFT OUTSIDE (CALIF. ONLY)
  • 15002E
    15002-1367 CARBURETOR, LEFT INSIDE (CALIF. ONLY)
    CARBURETOR, LEFT INSIDE (CALIF. ONLY)
  • 15002F
    15002-1368 CARBURETOR, RIGHT INSIDE (CALIF. ONLY)
    CARBURETOR, RIGHT INSIDE (CALIF. ONLY)
  • 15002G
    15002-1369 CARBURETOR, RIGHT OUTSIDE (CALIF. ONLY)
    CARBURETOR, RIGHT OUTSIDE (CALIF. ONLY)
  • 16021
    16021-1101 SCREW, THROTTLE STOP
    SCREW, THROTTLE STOP
  • 43028
    43028-1053 DIAPHRAGM, 5.9MM, AIR CUT VALVE
    DIAPHRAGM, 5.9MM, AIR CUT VALVE
  • 92001
    92001-1998 BOLT, THROTTLE ADJUST
    BOLT, THROTTLE ADJUST
  • 92005
    92005-1108 FITTING, FUEL, T, TYPE
    FITTING, FUEL, T, TYPE
  • 92005A
    92005-1109 FITTING, FUEL, I, TYPE
    FITTING, FUEL, I, TYPE
  • 92005B
    92005-1119 FITTING, T, TYPE (CALIF. ONLY)
    FITTING, T, TYPE (CALIF. ONLY)
  • 92005C
    92005-1125 FITTING, T, TYPE
    FITTING, T, TYPE
  • 92009
    92009-1129 SCREW, 6X16
    SCREW, 6X16
  • 92009A
    92009-1262 SCREW
    SCREW
  • 92009B
    92009-1365 SCREW, 5X10
    SCREW, 5X10
  • 92022
    92022-1199 WASHER, 6.1X11X0.8, POLYACETAL
    WASHER, 6.1X11X0.8, POLYACETAL
  • 92022A
    92022-1480 WASHER, PLAIN, STOP SPRING
    WASHER, PLAIN, STOP SPRING
  • 92037
    92037-1075 CLAMP, FUEL TUBE
    CLAMP, FUEL TUBE
  • 92037A
    92037-1142 CLAMP, TUBE
    CLAMP, TUBE
  • 223
    223C0420 SCREW, PAN, WS, CROS, 4X20
    SCREW, PAN, WS, CROS, 4X20
  • 223A
    223C0510 SCREW, PAN, WS, CROS, 5X10
    SCREW, PAN, WS, CROS, 5X10
  • 223B
    223D0408 SCREW, PAN, WS, CROS, 4X8
    SCREW, PAN, WS, CROS, 4X8
  • 92037B
    92037-1477 CLAMP, TUBE
    CLAMP, TUBE
  • 92037C
    92037-1606 CLAMP, TUBE (CALIF. ONLY)
    CLAMP, TUBE (CALIF. ONLY)
  • 92055
    92055-1004 O-RING
    O-RING
  • 92055A
    92055-1223 O-RING
    O-RING
  • 92055B
    92055-1245 O-RING
    O-RING
  • 92059
    92059-1140 TUBE, 3.5X6.5X180
    TUBE, 3.5X6.5X180
  • 92059A
    92059-1173 TUBE, 5X9X200
    TUBE, 5X9X200
  • 92059B
    92059-1492 TUBE, 7.3X12.5X260
    TUBE, 7.3X12.5X260
  • 92059C
    92059-1598 TUBE, 6.5X9.5X260 (EXCEPT CALIF.)
    TUBE, 6.5X9.5X260 (EXCEPT CALIF.)
  • 92059D
    92059-1688 TUBE, 7X11X140 (CALIF. ONLY)
    TUBE, 7X11X140 (CALIF. ONLY)
  • 92068
    92068-006 PLUG, 12X25 (EXCEPT CALIF.)
    PLUG, 12X25 (EXCEPT CALIF.)
  • 92081
    92081-1617 SPRING, THROTTLE STOP SCREW
    SPRING, THROTTLE STOP SCREW
  • 92081A
    92081-1620 SPRING
    SPRING
  • 92081B
    92081-1621 SPRING, THROTTLE ADJUST LWR
    SPRING, THROTTLE ADJUST LWR
  • 92081C
    92081-1622 SPRING, THROTTLE ADJUST CNT
    SPRING, THROTTLE ADJUST CNT
  • 92081D
    92081-1762 SPRING, STARTER LEVER
    SPRING, STARTER LEVER
  • 92144
    92144-1072 SPRING, AIR CUT VALVE
    SPRING, AIR CUT VALVE
