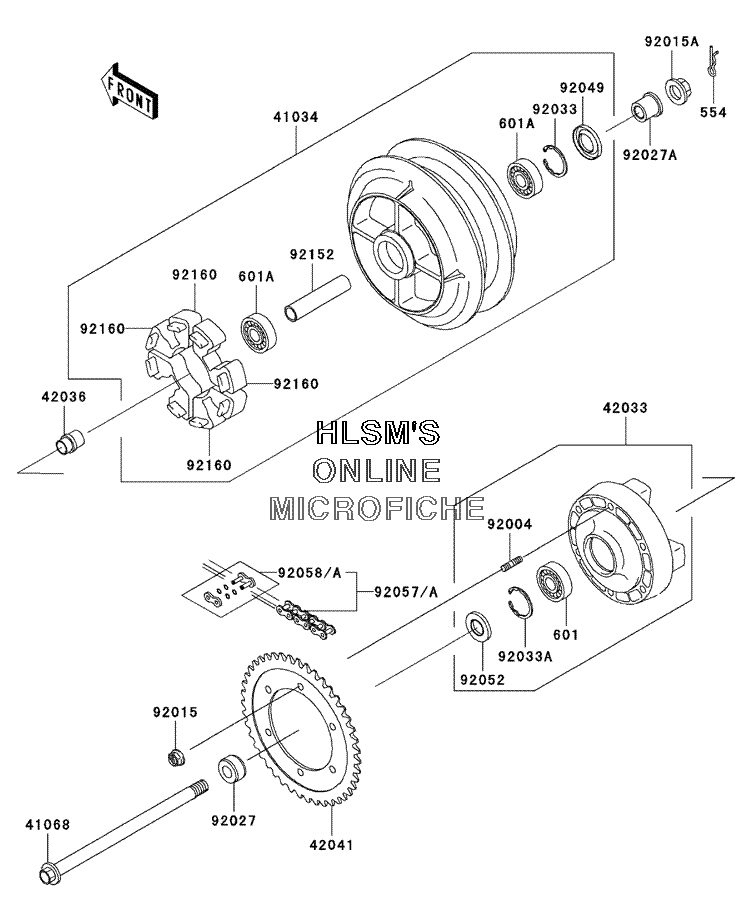

WHEEL - REAR W/ CHAIN для Kawasaki Vulcan 800 Drifter - 2005 года выпуска
-
№АртикулНазвание
-
554554A1000 PIN, SNAP, 10MMPIN, SNAP, 10MM
-
601601B6205UG BEARING, BALL, #6205UGBEARING, BALL, #6205UG
-
601A601B6303UU BEARING, BALL, #6303UUC3BEARING, BALL, #6303UUC3
-
4103441034-1299 DRUM, ASSY, REAR BRAKEDRUM, ASSY, REAR BRAKE
-
4106841068-1365 AXLE, REARAXLE, REAR
-
4203342033-1219 COUPLING, ASSY, REAR HUBCOUPLING, ASSY, REAR HUB
-
4203642036-1146 SLEEVE, REAR HUB, L=33SLEEVE, REAR HUB, L=33
-
4204142041-1519 SPROCKET, HUB, 40TSPROCKET, HUB, 40T
-
9200492004-1275 STUD, 10X19STUD, 10X19
-
9201592015-1335 NUT, FLANGED, 10MMNUT, FLANGED, 10MM
-
92015A92015-1946 NUT, FLANGED, 16MMNUT, FLANGED, 16MM
-
9202792027-1321 COLLAR, REAR AXLE (LEFT) L=18.5COLLAR, REAR AXLE (LEFT) L=18.5
-
92027A92027-1875 COLLAR, REAR AXLE, L=28COLLAR, REAR AXLE, L=28
-
9203392033-1042 RING, SNAP, 47MMRING, SNAP, 47MM
-
92033A92033-1043 RING, SNAP, 52MMRING, SNAP, 52MM
-
9204992049-1056 SEAL, OIL, BJN28475SEAL, OIL, BJN28475
-
9205292052-006 SEAL, OIL, TWC35527SEAL, OIL, TWC35527
-
9205792057-0002 CHAIN, DRIVE, EK50MV, XX112LCHAIN, DRIVE, EK50MV, XX112L
-
92058A92058-1098 JOINT, CHAIN, DRIVEJOINT, CHAIN, DRIVE
-
9215292152-1117 COLLAR, REAR HUB, L=101COLLAR, REAR HUB, L=101
-
9216092160-1697 DAMPER, SHOCK, REAR HUBDAMPER, SHOCK, REAR HUB
