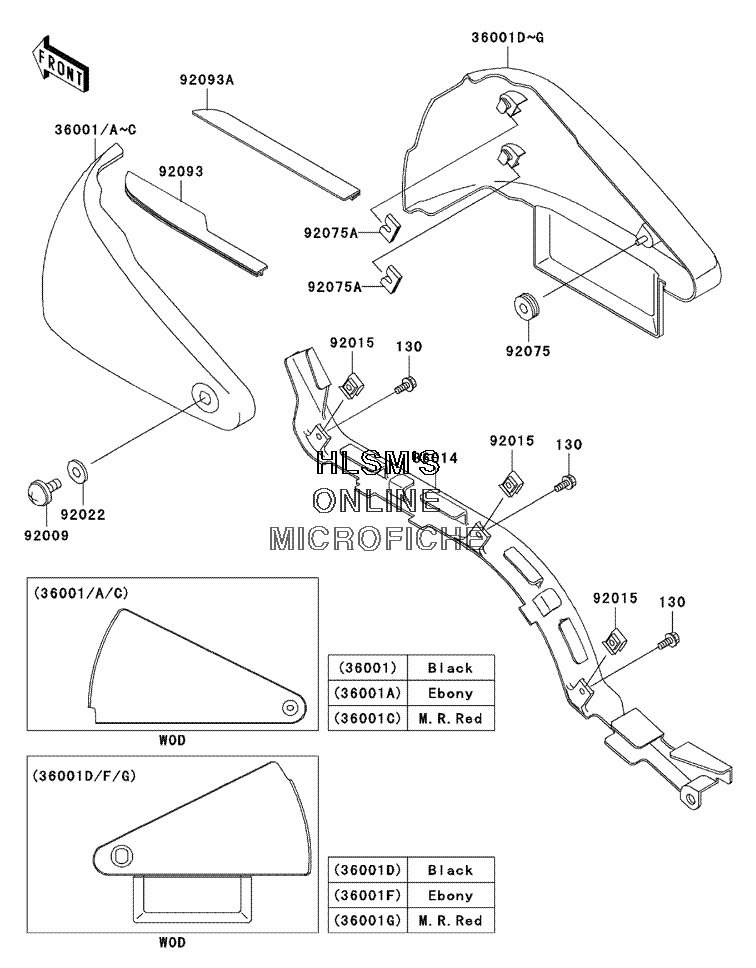

SIDE COVERS W/ CHAIN COVER для Kawasaki Vulcan 800 Drifter - 2005 года выпуска`
-
№АртикулНазвание
-
130130J0516 BOLT, FLANGEDBOLT, FLANGED
-
36001A36001-1550-H8 COVER, SIDE (LEFT) (EBONY)COVER, SIDE (LEFT) (EBONY)
-
36001F36001-1551-H8 COVER, SIDE (RIGHT) (EBONY)COVER, SIDE (RIGHT) (EBONY)
-
3601436014-1239 CASE, CHAINCASE, CHAIN
-
9200992009-1663 SCREW, 6X18SCREW, 6X18
-
9201592015-1798 NUT, 5MMNUT, 5MM
-
9202292022-1143 WASHER, 6.5X16X1WASHER, 6.5X16X1
-
9207592075-1629 DAMPERDAMPER
-
92075A92075-1967 DAMPERDAMPER
-
9209392093-1405 SEAL, SIDE COVER (LEFT)SEAL, SIDE COVER (LEFT)
-
92093A92093-1406 SEAL, SIDE COVER (RIGHT)SEAL, SIDE COVER (RIGHT)
