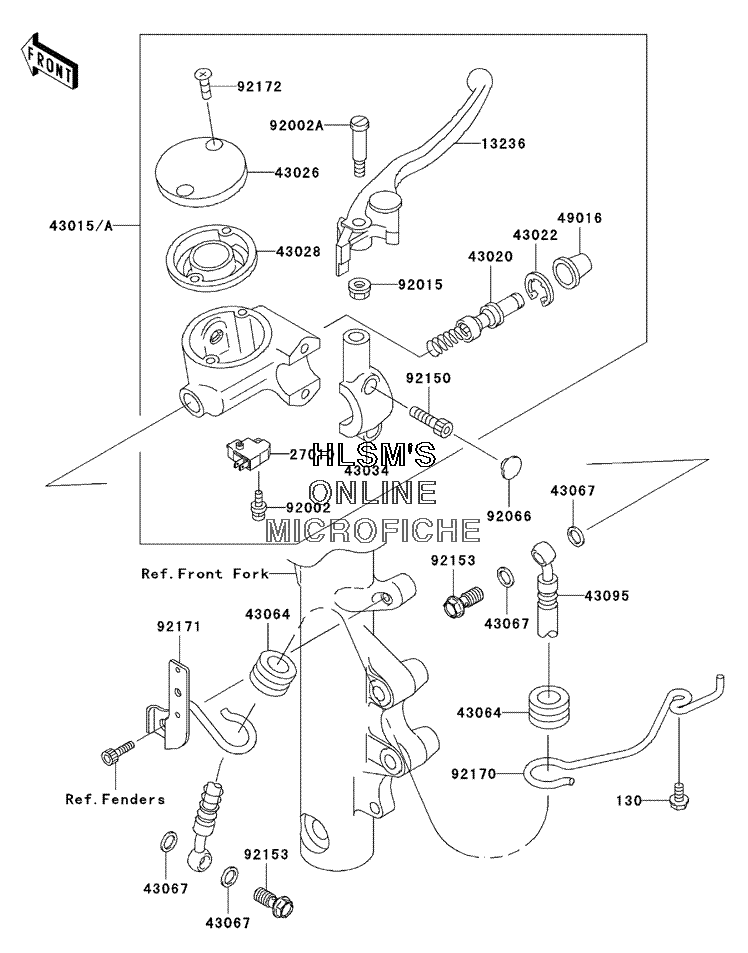

BRAKE - MASTER CYLINDER - FRONT для Kawasaki Vulcan 800 Drifter - 2005 года выпуска`
-
№АртикулНазвание
-
130130J0612 BOLT, FLANGEDBOLT, FLANGED
-
1323613236-1315 LEVER, COMP, FRONT BRAKELEVER, COMP, FRONT BRAKE
-
2701027010-0025 SWITCH, BRAKESWITCH, BRAKE
-
4301543015-0013 CYLINDER, ASSY, MASTER, FRONTCYLINDER, ASSY, MASTER, FRONT
-
4302043020-1056 PISTON, COMP, BRAKE, FRONTPISTON, COMP, BRAKE, FRONT
-
4302243022-1010 STOPPER, BRAKE, PISTONSTOPPER, BRAKE, PISTON
-
4302643026-1083 CAP, BRAKECAP, BRAKE
-
4302843028-1071 DIAPHRAGM, MASTER CYLINDERDIAPHRAGM, MASTER CYLINDER
-
4303443034-1147 HOLDER, BRAKEHOLDER, BRAKE
-
4306443064-006 GROMMET, HOSE CLAMPGROMMET, HOSE CLAMP
-
4306743067-001 WASHER, 10.5X15X1.5WASHER, 10.5X15X1.5
-
4309543095-1125 HOSE, BRAKE, FRONTHOSE, BRAKE, FRONT
-
4901649016-1044 COVER, SEAL, MASTER CYLINDERCOVER, SEAL, MASTER CYLINDER
-
9200292002-1323 BOLT, SCREW, 4X12BOLT, SCREW, 4X12
-
92002A92002-1561 BOLT, LEVER SETBOLT, LEVER SET
-
9201592015-1528 NUT, FLANGED, 6MMNUT, FLANGED, 6MM
-
9206692066-1301 PLUGPLUG
-
9215092150-1025 BOLT, SOCKET, 6MMBOLT, SOCKET, 6MM
-
9215392153-0627 BOLT, OIL, L=23BOLT, OIL, L=23
-
9217092170-1978 CLAMP, HOSECLAMP, HOSE
-
9217192171-1291 CLAMP, BRAKE HOSECLAMP, BRAKE HOSE
-
9217292172-0089 SCREW, 5MMSCREW, 5MM
