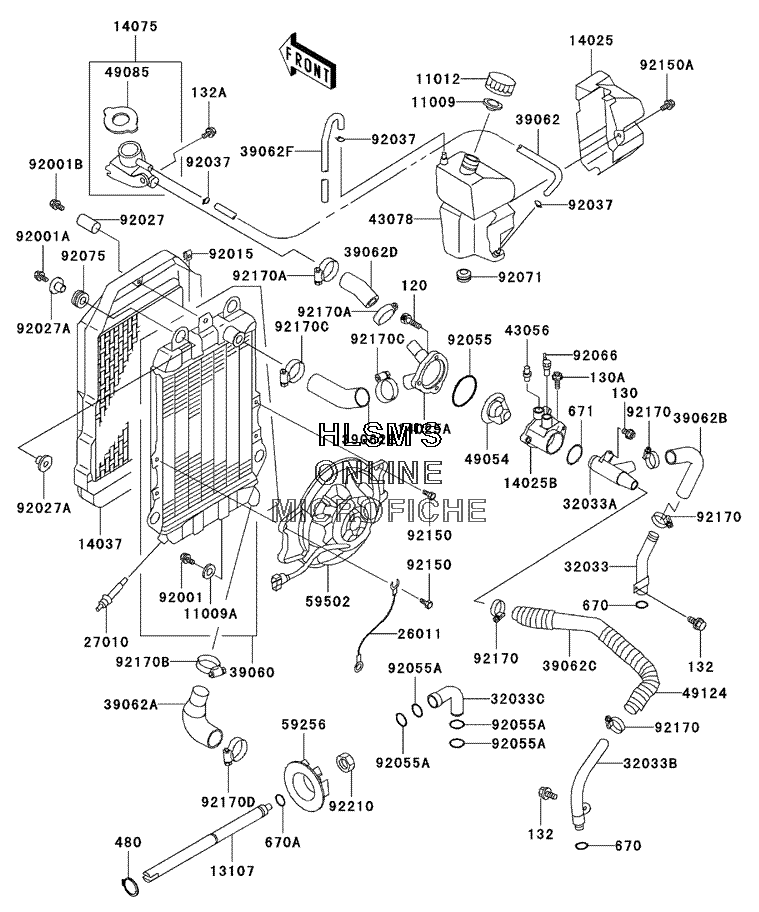

RADIATOR для Kawasaki Vulcan 750 - 2005 года выпуска`
-
№АртикулНазвание
-
1100911009-1145 GASKET, RESERVOIR TANK CAPGASKET, RESERVOIR TANK CAP
-
11009A11009-1152 GASKET, DRAIN BOLTGASKET, DRAIN BOLT
-
1101211012-1084 CAPCAP
-
1310713107-1155 SHAFT, IMPELLERSHAFT, IMPELLER
-
1402514025-1962 COVER, RESORVOIRCOVER, RESORVOIR
-
14025A14025-1972 COVER, THERMOSTAT, UPPERCOVER, THERMOSTAT, UPPER
-
14025B14025-1973 COVER, THERMOSTAT, LOWERCOVER, THERMOSTAT, LOWER
-
1403714037-1066 SCREEN, RADIATORSCREEN, RADIATOR
-
1407514075-1057 CAP, ASSY, RADIATORCAP, ASSY, RADIATOR
-
2601126011-1326 WIRE, LEADWIRE, LEAD
-
2701027010-1167 SWITCH, FANSWITCH, FAN
-
3203332033-1484 PIPEPIPE
-
32033A32033-1486 PIPEPIPE
-
32033B32033-1738 PIPEPIPE
-
32033C32033-1966 PIPEPIPE
-
3906039060-1065 RADIATORRADIATOR
-
3906239062-1069 HOSE, COOLING, 5.5X10.5X950HOSE, COOLING, 5.5X10.5X950
-
39062A39062-1100 HOSE, COOLINGHOSE, COOLING
-
39062B39062-1101 HOSE, COOLINGHOSE, COOLING
-
39062C39062-1102 HOSE, COOLINGHOSE, COOLING
-
39062D39062-1103 HOSE, COOLINGHOSE, COOLING
-
39062E39062-1104 HOSE, COOLINGHOSE, COOLING
-
39062F39062-1122 HOSE, COOLINGHOSE, COOLING
-
4305643056-003 BREATHERBREATHER
-
4307843078-1057 RESERVOIRRESERVOIR
-
4905449054-1051 THERMOSTATTHERMOSTAT
-
4908549085-1066 CAP, ASSY, PRESSURECAP, ASSY, PRESSURE
-
4912449124-1051 SPRING, TUBE GUARDSPRING, TUBE GUARD
-
5925659256-1058 IMPELLERIMPELLER
-
5950259502-1059 FAN, ASSYFAN, ASSY
-
9200192001-1277 BOLT, RADIATOR DRAINBOLT, RADIATOR DRAIN
-
92001A92001-1352 BOLT, FLANGED, 6X22BOLT, FLANGED, 6X22
-
92001B92001-1852 BOLT, 6X25BOLT, 6X25
-
9201592015-1487 NUTNUT
-
9202792027-1210 COLLAR, 6.8X10X11.5COLLAR, 6.8X10X11.5
-
92027A92027-1906 COLLARCOLLAR
-
9203792037-147 CLAMP, TUBECLAMP, TUBE
-
9205592055-112 O-RING, 53.5X2.6O-RING, 53.5X2.6
-
92055A92055-1308 O-RING, 19MMO-RING, 19MM
-
9206692066-1183 PLUG, SENSOR WATERPLUG, SENSOR WATER
-
120120P0620 BOLT, SOCKET, 6X20BOLT, SOCKET, 6X20
-
130130C0610 BOLT, FLANGED, 6X10 (BLACK)BOLT, FLANGED, 6X10 (BLACK)
-
130A130C0616 BOLT, FLANGED, 6X16BOLT, FLANGED, 6X16
-
132132J0612 BOLT, FLANGED, SMALLBOLT, FLANGED, SMALL
-
132A132J0614 BOLT, FLANGED, SMALLBOLT, FLANGED, SMALL
-
480480J1200 CIRCLIP, TYPE, C, 12MMCIRCLIP, TYPE, C, 12MM
-
670670B2014 O-RING, 14MMO-RING, 14MM
-
670A670D1509 O-RING, 9MMO-RING, 9MM
-
671671B2525 O-RING, 25MMO-RING, 25MM
-
9207192071-1115 GROMMETGROMMET
-
9207592075-1665 DAMPERDAMPER
-
9215092150-1187 BOLT, 6X16BOLT, 6X16
-
92150A92150-1764 BOLT, 6X16BOLT, 6X16
-
9217092170-1032 CLAMP, COOLING HOSECLAMP, COOLING HOSE
-
92170A92170-1033 CLAMP, COOLING HOSECLAMP, COOLING HOSE
-
92170B92170-1034 CLAMP, COOLING HOSECLAMP, COOLING HOSE
-
92170C92170-1035 CLAMP, COOLING HOSECLAMP, COOLING HOSE
-
92170D92170-1036 CLAMPCLAMP
-
9221092210-0006 NUT, LOCK, 6MMNUT, LOCK, 6MM
