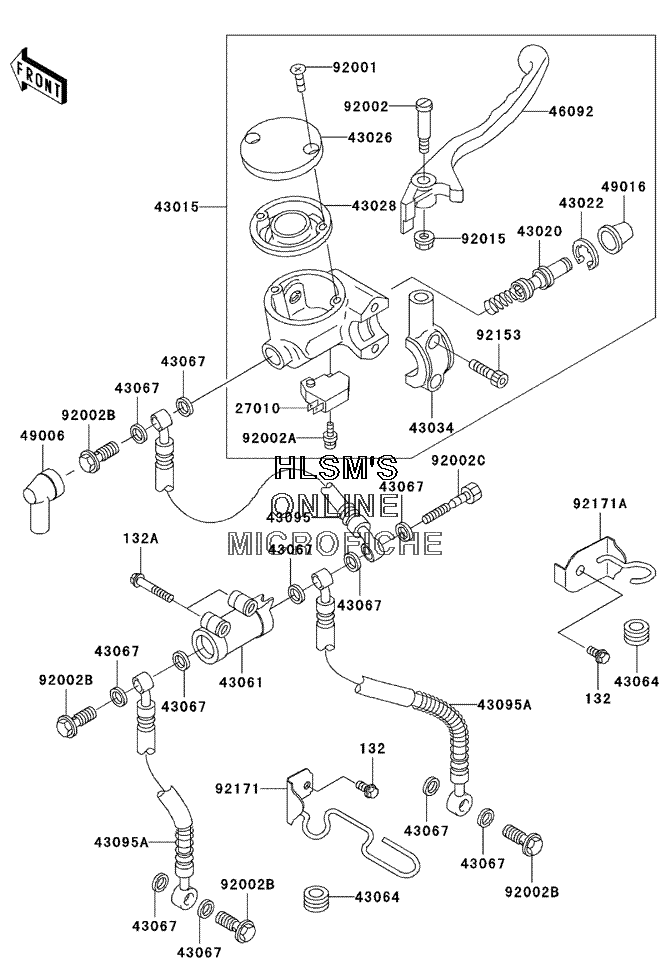

BRAKE - MASTER CYLINDER - FRONT для Kawasaki Vulcan 750 - 2005 года выпуска

  • №
    Артикул
    Название
  • 132
    132E0612 BOLT, FLANGED, SMALL
    BOLT, FLANGED, SMALL
  • 132A
    132G0635 BOLT, FLANGED, SMALL
    BOLT, FLANGED, SMALL
  • 27010
    27010-1170 SWITCH, BRAKE
    SWITCH, BRAKE
  • 43015
    43015-1493 CYLINDER, ASSY, MASTER, FRONT
    CYLINDER, ASSY, MASTER, FRONT
  • 43020
    43020-1054 PISTON, COMP, BRAKE, FRONT
    PISTON, COMP, BRAKE, FRONT
  • 43022
    43022-1010 STOPPER, BRAKE, PISTON
    STOPPER, BRAKE, PISTON
  • 43026
    43026-1079 CAP, BRAKE (BLACK)
    CAP, BRAKE (BLACK)
  • 43028
    43028-1071 DIAPHRAGM, MASTER CYLINDER
    DIAPHRAGM, MASTER CYLINDER
  • 43034
    43034-1113 HOLDER, BRAKE, MASTER CYLINDER
    HOLDER, BRAKE, MASTER CYLINDER
  • 43061
    43061-1002 JOINT, BRAKE
    JOINT, BRAKE
  • 43064
    43064-006 GROMMET, HOSE CLAMP
    GROMMET, HOSE CLAMP
  • 43067
    43067-001 WASHER, 10.5X15X1.5
    WASHER, 10.5X15X1.5
  • 43095
    43095-1373 HOSE, BRAKE, FRONT
    HOSE, BRAKE, FRONT
  • 43095A
    43095-1374 HOSE, BRAKE, FRONT
    HOSE, BRAKE, FRONT
  • 46092
    46092-1171 LEVER, GRIP, FRONT BRAKE
    LEVER, GRIP, FRONT BRAKE
  • 49006
    49006-1040 BOOT, DUST
    BOOT, DUST
  • 49016
    49016-1044 COVER, SEAL, MASTER CYLINDER
    COVER, SEAL, MASTER CYLINDER
  • 92001
    92001-1727 SCREW, 5MM (BLACK)
    SCREW, 5MM (BLACK)
  • 92002
    92002-1322 BOLT, LEVER SET (BLACK)
    BOLT, LEVER SET (BLACK)
  • 92002A
    92002-1323 BOLT, SCREW, 4X12
    BOLT, SCREW, 4X12
  • 92002B
    92002-1888 BOLT, OIL, L=23
    BOLT, OIL, L=23
  • 92002C
    92002-1909 BOLT, OIL, L=37
    BOLT, OIL, L=37
  • 92015
    92015-1233 NUT, FLANGED, 6MM (BLACK)
    NUT, FLANGED, 6MM (BLACK)
  • 92153
    92153-0417 BOLT, SOCKET, 6X20
    BOLT, SOCKET, 6X20
  • 92171
    92171-0103 CLAMP, BRAKE HOSE (LEFT)
    CLAMP, BRAKE HOSE (LEFT)
  • 92171A
    92171-0105 CLAMP, BRAKE HOSE
    CLAMP, BRAKE HOSE
