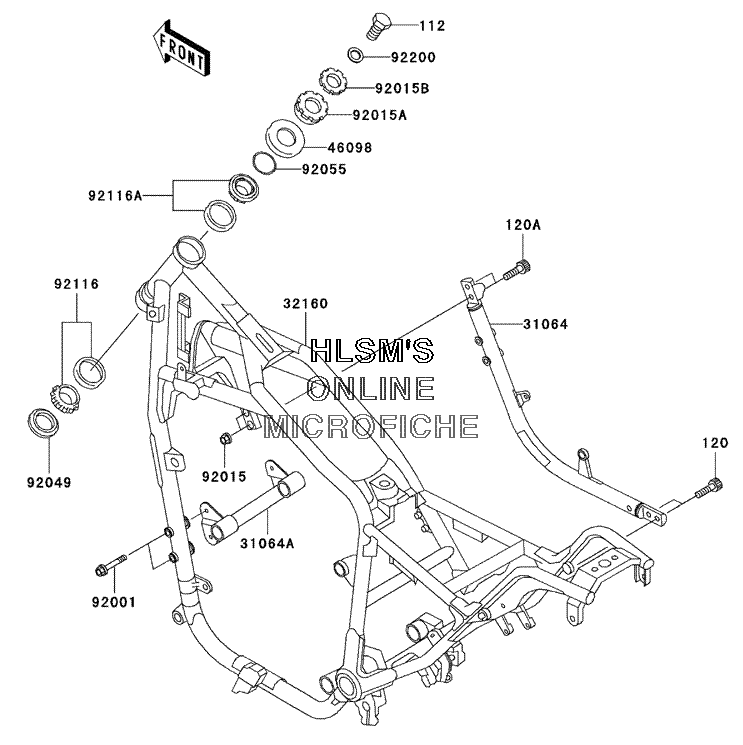

FRAME для Kawasaki Vulcan 750 - 2005 года выпуска

  • №
    Артикул
    Название
  • 112
    112G1425 BOLT, UPSET
    BOLT, UPSET
  • 120
    120S1020 BOLT, SOCKET
    BOLT, SOCKET
  • 120A
    120S1030 BOLT, SOCKET, 10X30
    BOLT, SOCKET, 10X30
  • 31064
    31064-1058 PIPE, COMP, SUB FRAME
    PIPE, COMP, SUB FRAME
  • 31064A
    31064-1059 PIPE, COMP
    PIPE, COMP
  • 32160
    32160-1314 FRAME, COMP
    FRAME, COMP
  • 46098
    46098-017 CAP, STEERING STEM
    CAP, STEERING STEM
  • 92001
    92001-1615 BOLT, FLANGED, 8X60 (BLACK)
    BOLT, FLANGED, 8X60 (BLACK)
  • 92015
    92015-1021 NUT, 10MM
    NUT, 10MM
  • 92015A
    92015-1377 NUT, 25MM, T=10
    NUT, 25MM, T=10
  • 92015B
    92015-1378 NUT, 25MM, T=6
    NUT, 25MM, T=6
  • 92049
    92049-1162 SEAL, OIL, XMHE36X52X4J
    SEAL, OIL, XMHE36X52X4J
  • 92055
    92055-1459 O-RING, ID=24.5
    O-RING, ID=24.5
  • 92116
    92116-1009 BEARING, ROLLER, HR320/28XJ
    BEARING, ROLLER, HR320/28XJ
  • 92116A
    92116-1058 BEARING, ROLLER, HI, CAP32005JR
    BEARING, ROLLER, HI, CAP32005JR
  • 92200
    92200-1140 WASHER
    WASHER
