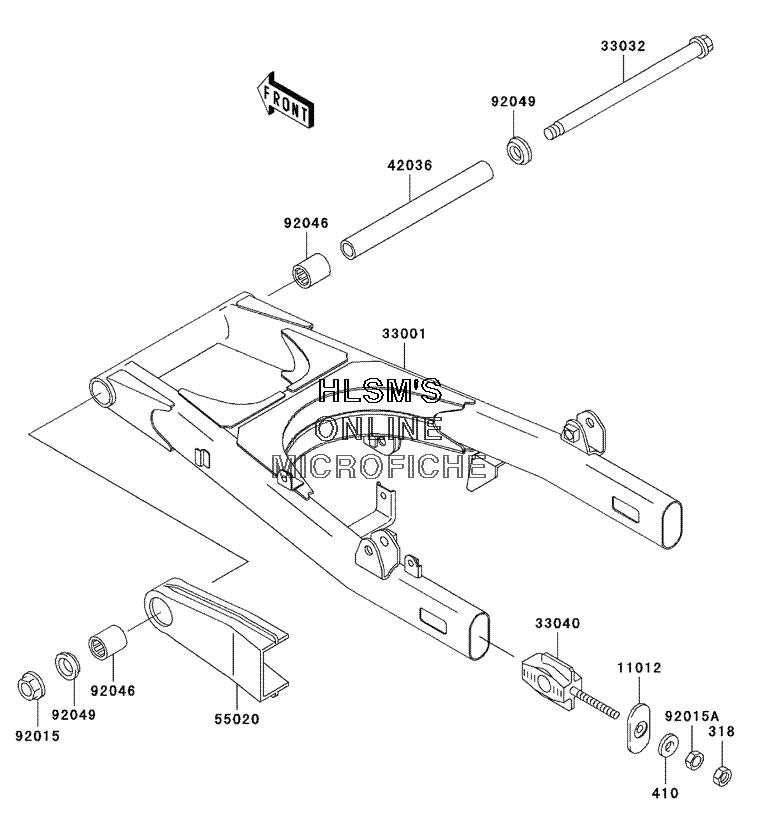

SUSPENSION - SWINGARM для Kawasaki Vulcan 500 LTD - 2005 года выпуска`
-
№АртикулНазвание
-
318318C0800 NUT, HEX, SMALLNUT, HEX, SMALL
-
410410F0800 WASHER, PLAIN, SMALL, 8MM (BLACK)WASHER, PLAIN, SMALL, 8MM (BLACK)
-
1101211012-1819 CAP, CHAIN ADJUSTERCAP, CHAIN ADJUSTER
-
3300133001-1499 ARM, COMP, SWINGARM, COMP, SWING
-
3303233032-1180 SHAFT, SWING ARMSHAFT, SWING ARM
-
3304033040-1140 ADJUSTER, CHAIN, INNERADJUSTER, CHAIN, INNER
-
4203642036-1329 SLEEVE, SWING ARM, L=228.5SLEEVE, SWING ARM, L=228.5
-
5502055020-1559 GUARD, CHAINGUARD, CHAIN
-
9201592015-1407 NUT, 14MMNUT, 14MM
-
92015A92015-1959 NUT, 8MMNUT, 8MM
-
9204692046-1174 BEARING, NEEDLE, TA2230ZBEARING, NEEDLE, TA2230Z
-
9204992049-1289 SEAL, OIL, MHA22X29X5.7FSEAL, OIL, MHA22X29X5.7F
