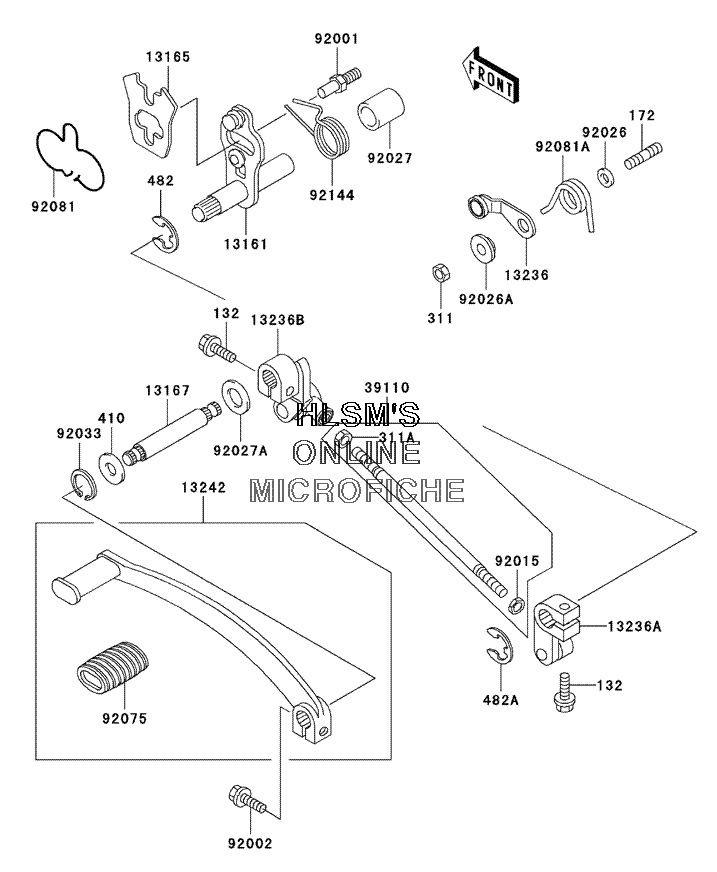

GEAR CHANGE MECHANISM для Kawasaki Vulcan 500 LTD - 2005 года выпуска

  • №
    Артикул
    Название
  • 132
    132J0620 BOLT, FLANGED, SMALL
    BOLT, FLANGED, SMALL
  • 172
    172G0614 BOLT, STUD, 6X14
    BOLT, STUD, 6X14
  • 311
    311G0600 NUT, HEX, 6MM
    NUT, HEX, 6MM
  • 311A
    311J0600 NUT, HEX
    NUT, HEX
  • 410
    410F1200 WASHER, PLAIN, SMALL, 12MM (BLACK)
    WASHER, PLAIN, SMALL, 12MM (BLACK)
  • 482
    482J0200 CIRCLIP, TYPE, E, 12MM
    CIRCLIP, TYPE, E, 12MM
  • 482A
    482L7000 CIRCLIP, TYPE, E
    CIRCLIP, TYPE, E
  • 13161
    13161-1117 LEVER, COMP, CHANGE SHAFT
    LEVER, COMP, CHANGE SHAFT
  • 13165
    13165-1034 PAWL, CHANGE LEVER
    PAWL, CHANGE LEVER
  • 13167
    13167-1059 SHAFT, CHANGE
    SHAFT, CHANGE
  • 13236
    13236-1103 LEVER, COMP, GEAR POSITION
    LEVER, COMP, GEAR POSITION
  • 13236A
    13236-1123 LEVER, COMP, CHANGE
    LEVER, COMP, CHANGE
  • 13236B
    13236-1401 LEVER, COMP, CHANGE
    LEVER, COMP, CHANGE
  • 13242
    13242-1331 LEVER, ASSY, CHANGE, PEDAL
    LEVER, ASSY, CHANGE, PEDAL
  • 39110
    39110-1116 ROD, ASSY, TIE
    ROD, ASSY, TIE
  • 92001
    92001-1455 BOLT, RETURN SPRING
    BOLT, RETURN SPRING
  • 92002
    92002-1237 BOLT, 6X20
    BOLT, 6X20
  • 92015
    92015-1178 NUT, LEFT HANDED, 6MM
    NUT, LEFT HANDED, 6MM
  • 92026
    92026-094 SPACER, 6.3X12X1.0
    SPACER, 6.3X12X1.0
  • 92026A
    92026-1217 SPACER
    SPACER
  • 92027
    92027-1440 COLLAR, 13X18.3X21.5
    COLLAR, 13X18.3X21.5
  • 92027A
    92027-1855 COLLAR, 13.2X22X5.5
    COLLAR, 13.2X22X5.5
  • 92033
    92033-1189 RING, SNAP, 11MM
    RING, SNAP, 11MM
  • 92075
    92075-1585 DAMPER, CHANGE PEDAL
    DAMPER, CHANGE PEDAL
  • 92081
    92081-1785 SPRING, CHANGE LEVER
    SPRING, CHANGE LEVER
  • 92081A
    92081-1786 SPRING, POSITION LEVER
    SPRING, POSITION LEVER
  • 92144
    92144-1644 SPRING, CHANGE PEDAL RETURN
    SPRING, CHANGE PEDAL RETURN
