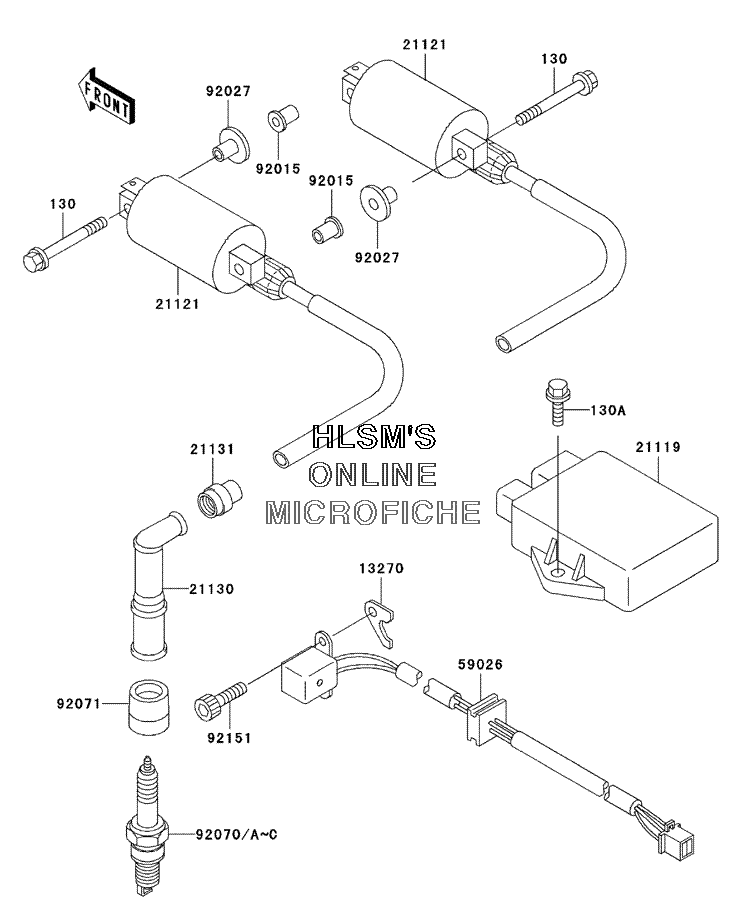

IGNITION SYSTEM для Kawasaki Vulcan 500 LTD - 2005 года выпуска

  • №
    Артикул
    Название
  • 130
    130G0645 BOLT, FLANGED, 6X45
    BOLT, FLANGED, 6X45
  • 130A
    130H0616 BOLT, FLANGED, 6X16
    BOLT, FLANGED, 6X16
  • 13270
    13270-1721 PLATE
    PLATE
  • 21119
    21119-1466 IGNITER
    IGNITER
  • 21121
    21121-1153 COIL, IGNITION
    COIL, IGNITION
  • 21130
    21130-1068 CAP, SPARK PLUG
    CAP, SPARK PLUG
  • 21131
    21131-005 GROMMET, HIGH TENSION
    GROMMET, HIGH TENSION
  • 59026
    59026-1141 COIL, PULSING
    COIL, PULSING
  • 92015
    92015-1700 NUT
    NUT
  • 92027
    92027-195 COLLAR, L=21 PLUG, SPARK, X24ESR, U (ND) (LOCAL PROCUREMENT ITEM) (OPT) PLUG, SPARK, X27ESR, U (ND) (LOCAL PROCUREMENT ITEM)
    COLLAR, L=21 PLUG, SPARK, X24ESR, U (ND) (LOCAL PROCUREMENT ITEM) (OPT) PLUG, SPARK, X27ESR, U (ND) (LOCAL PROCUREMENT ITEM)
  • 92070B
    92070-1189 PLUG, SPARK, DR9EA (NGK)
    PLUG, SPARK, DR9EA (NGK)
  • 92070C
    92070-1199 PLUG, SPARK, DR8EA (NGK) (OPT)
    PLUG, SPARK, DR8EA (NGK) (OPT)
  • 92071
    92071-1146 GROMMET, PLUG CAP
    GROMMET, PLUG CAP
  • 92151
    92151-1118 BOLT, SOCKET, 5X12
    BOLT, SOCKET, 5X12
