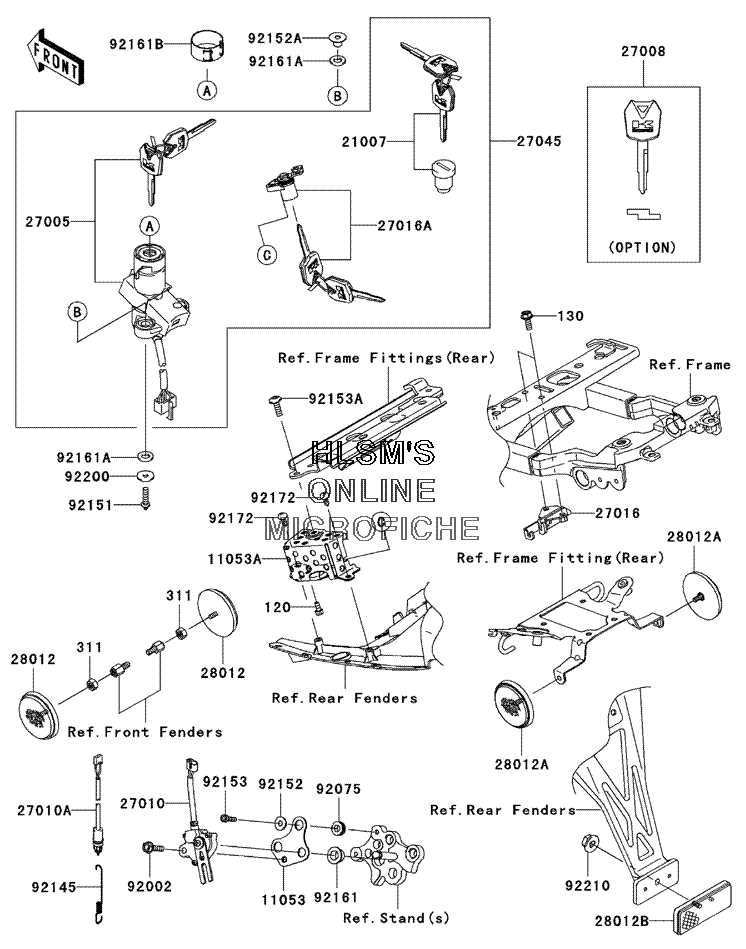

IGNITION SWITCH W/ LOCKS AND REFLECTORS для Kawasaki NINJA ZX-6R - 2005 года выпуска
-
№АртикулНазвание
-
120120S0512 BOLT, SOCKET, M5X12BOLT, SOCKET, M5X12
-
130130L0616 BOLT, FLANGED, M6X16BOLT, FLANGED, M6X16
-
311311C0500 NUT, HEXNUT, HEX
-
1105311053-0056 BRACKET, SIDE STAND SWITCHBRACKET, SIDE STAND SWITCH
-
11053A11053-1400 BRACKET, SEAT LOCKBRACKET, SEAT LOCK
-
2100721007-5057 ROTOR, LOCK, TANK CAPROTOR, LOCK, TANK CAP
-
2700527005-5133 SWITCH, ASSY, IGNITIONSWITCH, ASSY, IGNITION
-
2700827008-0030 KEY, LOCK, BLANK (OPT)KEY, LOCK, BLANK (OPT)
-
2701027010-1455 SWITCH, SIDE STANDSWITCH, SIDE STAND
-
27010A27010-1479 SWITCH, REAR BRAKESWITCH, REAR BRAKE
-
2701627016-1115 LOCK, ASSY, SEAT STRIKERLOCK, ASSY, SEAT STRIKER
-
27016A27016-5309 LOCK, ASSY, SEATLOCK, ASSY, SEAT
-
2704527045-5300 SWITCH, ASSYSWITCH, ASSY
-
2801228012-0001 REFLECTOR, REFLEX, FRONT, SIDEREFLECTOR, REFLEX, FRONT, SIDE
-
28012A28012-0002 REFLECTOR, REFLEXREFLECTOR, REFLEX
-
28012B28012-1077 REFLECTOR, REFLEXREFLECTOR, REFLEX
-
9200292002-1582 BOLT, FLANGED, 6X25BOLT, FLANGED, 6X25
-
9207592075-161 DAMPERDAMPER
-
9214592145-0251 SPRING, REAR BRAKE SWITCHSPRING, REAR BRAKE SWITCH
-
9215192151-1946 BOLT, TORX, 6X22BOLT, TORX, 6X22
-
9215292152-0017 COLLARCOLLAR
-
92152A92152-0288 COLLARCOLLAR
-
9215392153-0414 BOLT, SOCKET, 5X18BOLT, SOCKET, 5X18
-
92153A92153-0816 BOLT, 6X18BOLT, 6X18
-
9216192161-0016 DAMPERDAMPER
-
92161A92161-0240 DAMPER, IGNITION SWITCHDAMPER, IGNITION SWITCH
-
92161B92161-0257 DAMPER, IGINITION SWITCHDAMPER, IGINITION SWITCH
-
9217292172-1061 SCREW, TAPPING, 5X10SCREW, TAPPING, 5X10
-
9220092200-0212 WASHER, 6X20X1.6WASHER, 6X20X1.6
-
9221092210-0007 NUT, FLANGED, 5MMNUT, FLANGED, 5MM
