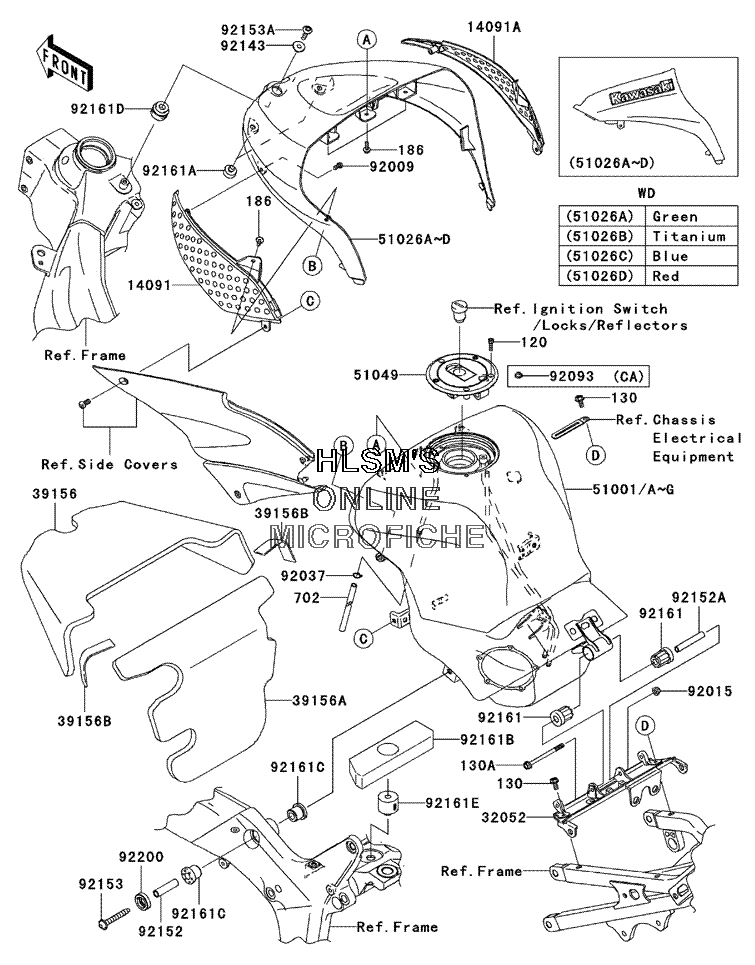

FUEL TANK для Kawasaki NINJA ZX-6R - 2005 года выпуска
-
№АртикулНазвание
-
1409114091-0324 COVER, KNEE GRIP (LEFT)COVER, KNEE GRIP (LEFT)
-
14091A14091-0325 COVER, KNEE GRIP (RIGHT)COVER, KNEE GRIP (RIGHT)
-
3205232052-0033 BRACKET, TANKBRACKET, TANK
-
3915639156-0079 PAD, FUEL TANK COVERPAD, FUEL TANK COVER
-
39156A39156-0080 PAD, FUEL TANKPAD, FUEL TANK
-
39156B39156-0096 PAD, FUEL TANK COVERPAD, FUEL TANK COVER
-
5100151001-0050-723 TANK, COMP, FUEL (C.P.BLUE) (CALIF. ONLY)TANK, COMP, FUEL (C.P.BLUE) (CALIF. ONLY)
-
51001A51001-0050-724 TANK, COMP, FUEL (P.M.RED) (CALIF. ONLY)TANK, COMP, FUEL (P.M.RED) (CALIF. ONLY)
-
51001B51001-0050-725 TANK, COMP, FUEL, M.F.R.TITANIUM (CALIF. ONLY)TANK, COMP, FUEL, M.F.R.TITANIUM (CALIF. ONLY)
-
51001C51001-0050-777 TANK, COMP, FUEL (L.GREEN) (CALIF. ONLY)TANK, COMP, FUEL (L.GREEN) (CALIF. ONLY)
-
51001D51001-0054-723 TANK, COMP, FUEL (C.P.BLUE) (EXCEPT CALIF.)TANK, COMP, FUEL (C.P.BLUE) (EXCEPT CALIF.)
-
51001E51001-0054-724 TANK, COMP, FUEL (P.M.RED) (EXCEPT CALIF.)TANK, COMP, FUEL (P.M.RED) (EXCEPT CALIF.)
-
51001F51001-0054-725 TANK, COMP, FUEL, M.F.R.TITANIUM (EXCEPT CALIF.)TANK, COMP, FUEL, M.F.R.TITANIUM (EXCEPT CALIF.)
-
51001G51001-0054-777 TANK, COMP, FUEL (L.GREEN) (EXCEPT CALIF.)TANK, COMP, FUEL (L.GREEN) (EXCEPT CALIF.)
-
51026A51026-5023-777 COVER TANK (L.GREEN)COVER TANK (L.GREEN)
-
51026B51026-5024-725 COVER TANK, M.F.R.TITANIUMCOVER TANK, M.F.R.TITANIUM
-
51026C51026-5025-723 COVER TANK (C.P.BLUE)COVER TANK (C.P.BLUE)
-
51026D51026-5026-724 COVER TANK (P.M.RED)COVER TANK (P.M.RED)
-
5104951049-0010 CAP, TANK, FUELCAP, TANK, FUEL
-
9200992009-1319 SCREW, TAPPING, 5X12SCREW, TAPPING, 5X12
-
9201592015-1675 NUT, LOCK, FLANGED, 6MMNUT, LOCK, FLANGED, 6MM
-
9203792037-010 CLAMP, TUBECLAMP, TUBE
-
9209392093-1030 SEAL, FUEL TANK CAP (CALIF. ONLY)SEAL, FUEL TANK CAP (CALIF. ONLY)
-
9214392143-1016 COLLAR, L=9.6COLLAR, L=9.6
-
9215292152-0271 COLLAR, 8.8X12X46.5COLLAR, 8.8X12X46.5
-
92152A92152-1182 COLLAR, 6.8X10X60COLLAR, 6.8X10X60
-
9215392153-0879 BOLT, SOCKET, 8X65BOLT, SOCKET, 8X65
-
92153A92153-1267 BOLT, SOCKET, 6X23BOLT, SOCKET, 6X23
-
120120S0516 BOLT, SOCKET, M5X16BOLT, SOCKET, M5X16
-
130130H0614 BOLT, FLANGED, 6X14BOLT, FLANGED, 6X14
-
130A130H0680 BOLT, FLANGED, M6X80BOLT, FLANGED, M6X80
-
186186H0514 BOLT, UPSET, WPBOLT, UPSET, WP
-
702702A06850 TUBE, RUBBER, 6X850TUBE, RUBBER, 6X850
-
9216192161-0207 DAMPER, FUEL TANK, REARDAMPER, FUEL TANK, REAR
-
92161A92161-0223 DAMPERDAMPER
-
92161B92161-0262 DAMPERDAMPER
-
92161C92161-0274 DAMPER, FUEL TANK, SIDEDAMPER, FUEL TANK, SIDE
-
92161D92161-0287 DAMPERDAMPER
-
92161E92161-1116 DAMPERDAMPER
-
9220092200-0197 WASHER, FUEL TANK, SIDEWASHER, FUEL TANK, SIDE
