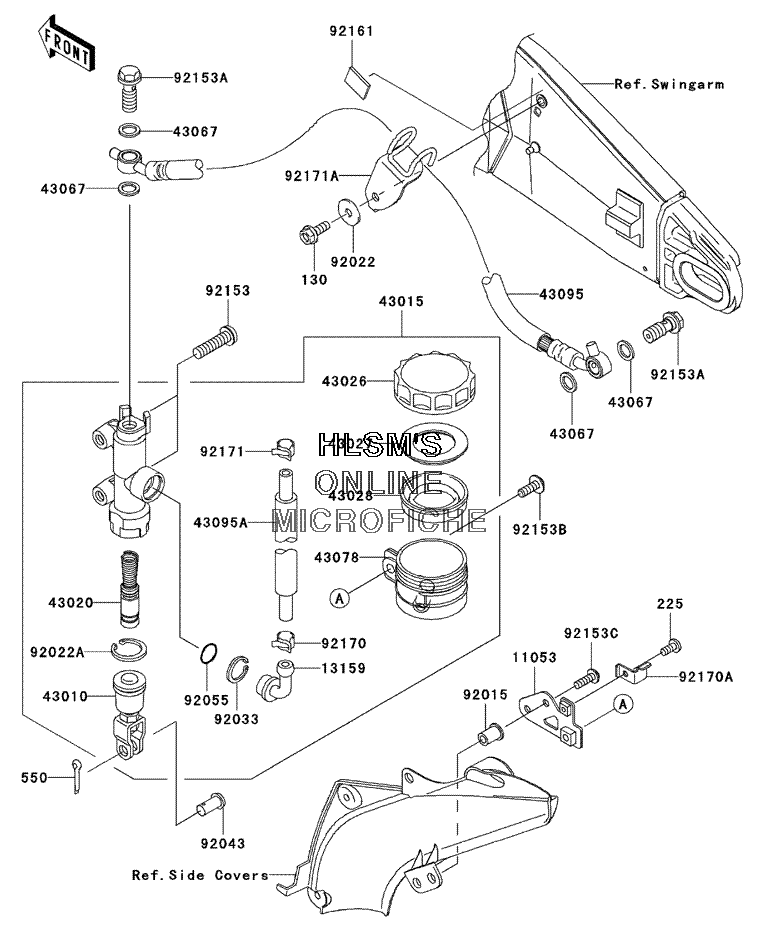

BRAKE - MASTER CYLINDER - REAR для Kawasaki NINJA ZX-6R - 2005 года выпуска`
-
№АртикулНазвание
-
130130L0616 BOLT, FLANGED, M6X16BOLT, FLANGED, M6X16
-
225225F0412 SCREW, PAN, WSP, CROSSCREW, PAN, WSP, CROS
-
550550D2015 PIN, COTTER, 2.0X15PIN, COTTER, 2.0X15
-
1105311053-1398 BRACKET, RESERVOIR TANK, REARBRACKET, RESERVOIR TANK, REAR
-
1315913159-1056 CONNECTORCONNECTOR
-
4301043010-1062 ROD, ASSY, BRAKEROD, ASSY, BRAKE
-
4301543015-0033 CYLINDER, ASSY, MASTER, REARCYLINDER, ASSY, MASTER, REAR
-
4302043020-1094 PISTON, COMP, BRAKEPISTON, COMP, BRAKE
-
4302643026-1051 CAP, BRAKECAP, BRAKE
-
4302743027-1051 PLATE, DIAPHRAGMPLATE, DIAPHRAGM
-
4302843028-1057 DIAPHRAGM, MASTER CYLINDERDIAPHRAGM, MASTER CYLINDER
-
4306743067-001 WASHER, 10.5X15X1.5WASHER, 10.5X15X1.5
-
4307843078-1165 RESERVOIR, REAR MASTER CYLINDERRESERVOIR, REAR MASTER CYLINDER
-
4309543095-0070 HOSE, BRAKE, REARHOSE, BRAKE, REAR
-
43095A43095-0170 HOSE, BRAKE, REAR MASTER CYLINDERHOSE, BRAKE, REAR MASTER CYLINDER
-
9201592015-1757 NUT, WELL, 5MMNUT, WELL, 5MM
-
9202292022-1346 WASHER, 6.5X20X1.6 (BLACK)WASHER, 6.5X20X1.6 (BLACK)
-
92022A92022-1601 WASHER, CIRCRIPWASHER, CIRCRIP
-
9203392033-1186 RING, SNAP, 20.5MMRING, SNAP, 20.5MM
-
9204392043-1303 PIN, 8MMPIN, 8MM
-
9205592055-1251 O-RING, MASTER CYLINDERO-RING, MASTER CYLINDER
-
9215392153-0393 BOLT, SOCKET, 8X30BOLT, SOCKET, 8X30
-
92153A92153-0627 BOLT, OIL, L=23BOLT, OIL, L=23
-
92153B92153-0817 BOLT, 8X16BOLT, 8X16
-
92153C92153-1244 BOLT, SOCKET, 5X16BOLT, SOCKET, 5X16
-
9216192161-0273 DAMPERDAMPER
-
9217092170-1091 CLAMP, HOSECLAMP, HOSE
-
92170A92170-1879 CLAMP, RESERVE TANK CAPCLAMP, RESERVE TANK CAP
-
9217192171-0463 CLAMP, HOSECLAMP, HOSE
-
92171A92171-0480 CLAMP, BRAKE HOSECLAMP, BRAKE HOSE
