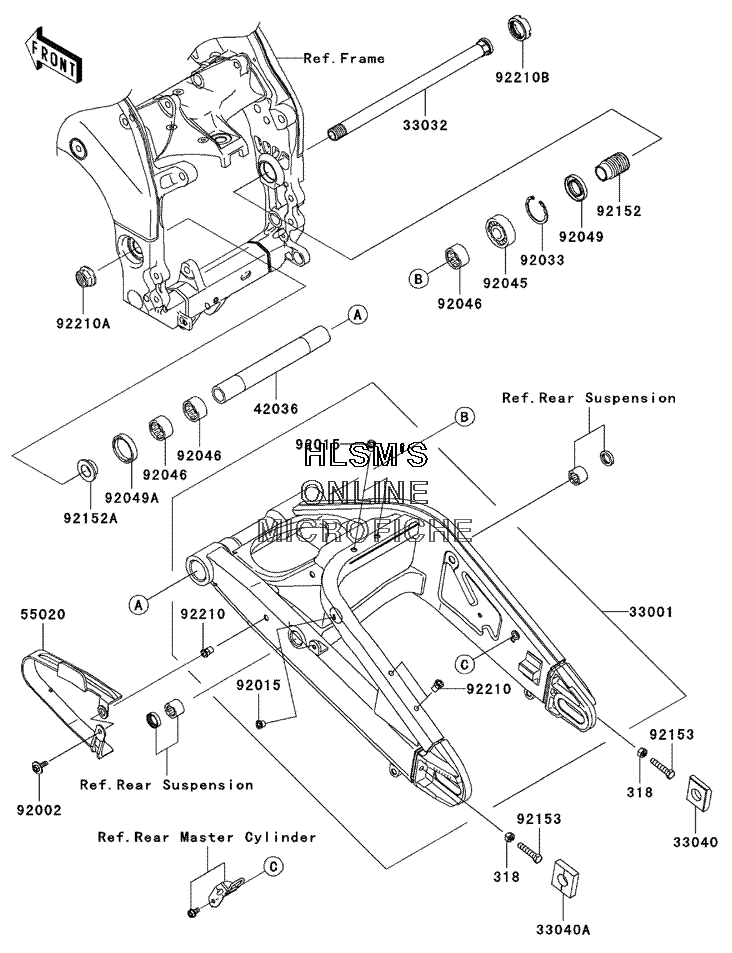

SUSPENSION - SWINGARM для Kawasaki NINJA ZX-10R - 2005 года выпуска

  • №
    Артикул
    Название
  • 318
    318L0800 NUT, HEX, SMALL
    NUT, HEX, SMALL
  • 33001
    33001-0039-8F ARM, COMP, SWING (F.S.BLACK)
    ARM, COMP, SWING (F.S.BLACK)
  • 33032
    33032-0009 SHAFT, SWING ARM
    SHAFT, SWING ARM
  • 33040
    33040-0008 ADJUSTER, CHAIN (RIGHT)
    ADJUSTER, CHAIN (RIGHT)
  • 33040A
    33040-1109 ADJUSTER, CHAIN
    ADJUSTER, CHAIN
  • 42036
    42036-1341 SLEEVE, SWING ARM PIVOT, L=226
    SLEEVE, SWING ARM PIVOT, L=226
  • 55020
    55020-0101 GUARD, CHAIN
    GUARD, CHAIN
  • 92002
    92002-1187 BOLT, 6X16
    BOLT, 6X16
  • 92015
    92015-1791 NUT, POP, 6MM, L=15
    NUT, POP, 6MM, L=15
  • 92033
    92033-1041 RING, SNAP, 42MM
    RING, SNAP, 42MM
  • 92045
    92045-0017 BEARING, BALL, 6004UL11
    BEARING, BALL, 6004UL11
  • 92046
    92046-0008 BEARING, NEEDLE, 7E, HVS 28X34X17
    BEARING, NEEDLE, 7E, HVS 28X34X17
  • 92049
    92049-1314 SEAL, OIL, MHSA25 42 6
    SEAL, OIL, MHSA25 42 6
  • 92049A
    92049-1352 SEAL, OIL, MHSA25X34X7
    SEAL, OIL, MHSA25X34X7
  • 92152
    92152-0154 COLLAR, SWING ARM, L=47
    COLLAR, SWING ARM, L=47
  • 92152A
    92152-1234 COLLAR, SWING ARM, L=12.5
    COLLAR, SWING ARM, L=12.5
  • 92153
    92153-0736 BOLT, 8X40
    BOLT, 8X40
  • 92210
    92210-0099 NUT, 6MM
    NUT, 6MM
  • 92210A
    92210-0106 NUT, FLANGED, 20MM
    NUT, FLANGED, 20MM
  • 92210B
    92210-0134 NUT, 30MM
    NUT, 30MM
