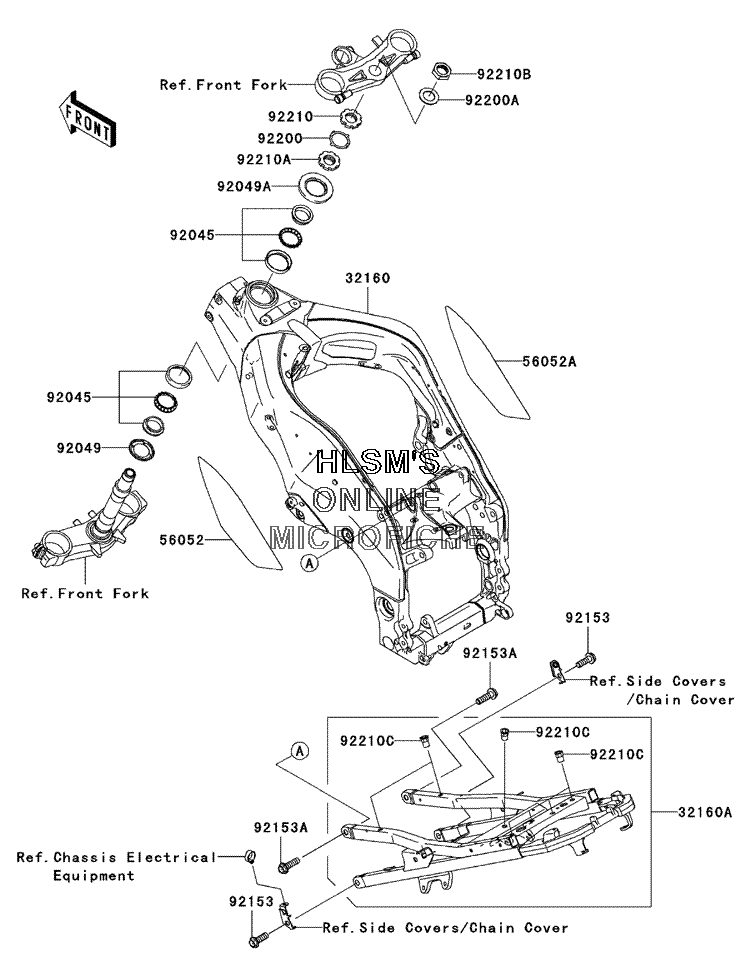

FRAME для Kawasaki NINJA ZX-10R - 2005 года выпуска
-
№АртикулНазвание
-
3216032160-0021-8F FRAME, COMP, FRONT (F.S.BLACK)FRAME, COMP, FRONT (F.S.BLACK)
-
32160A32160-0024-8F FRAME, COMP, REAR (F.S.BLACK)FRAME, COMP, REAR (F.S.BLACK)
-
5605256052-0378 MARK, FRAME OUTER PLATE (LEFT)MARK, FRAME OUTER PLATE (LEFT)
-
56052A56052-0379 MARK, FRAME OUTER PLATE (RIGHT)MARK, FRAME OUTER PLATE (RIGHT)
-
9204592045-1384 BEARING, BALL, SF07A17PX1V1BEARING, BALL, SF07A17PX1V1
-
9204992049-0022 SEAL, OIL, DS35X55X4SEAL, OIL, DS35X55X4
-
92049A92049-1382 SEAL, OIL, XMH 43 75 6.4JSEAL, OIL, XMH 43 75 6.4J
-
9215392153-0801 BOLT, FLANGED, 10X30BOLT, FLANGED, 10X30
-
92153A92153-0802 BOLT, FLANGED, 10X35BOLT, FLANGED, 10X35
-
9220092200-0036 WASHERWASHER
-
92200A92200-0110 WASHER, 28.5X42X1.6WASHER, 28.5X42X1.6
-
9221092210-0095 NUT, 35MMNUT, 35MM
-
92210A92210-0096 NUT, 35MMNUT, 35MM
-
92210B92210-0097 NUT, 28MMNUT, 28MM
-
92210C92210-0099 NUT, 6MMNUT, 6MM
