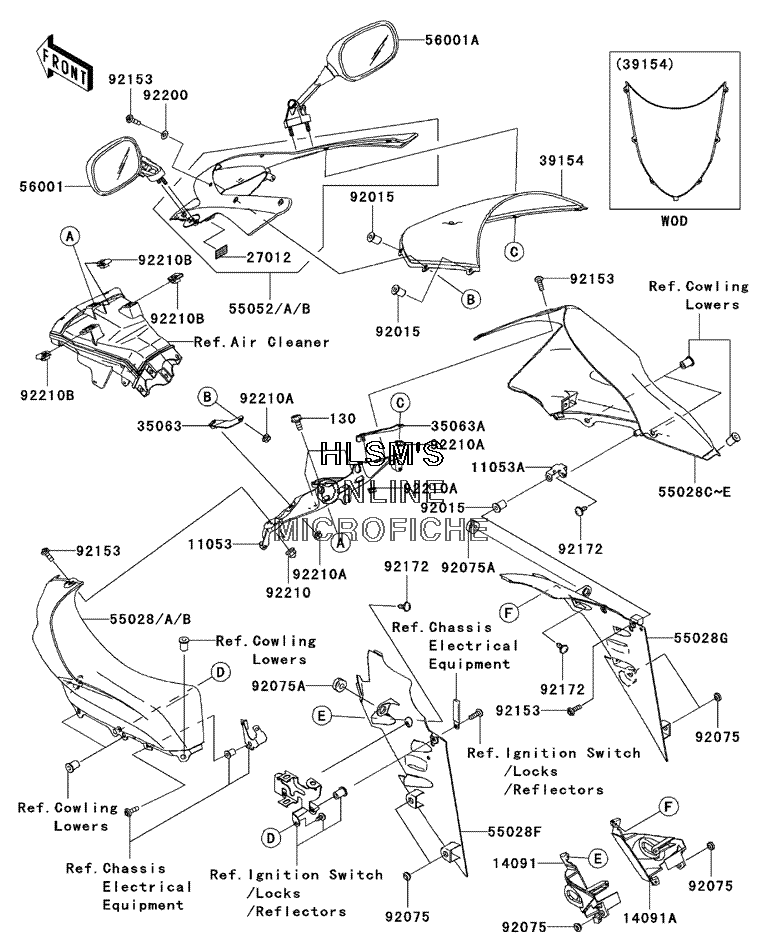

COWLING для Kawasaki NINJA ZX-10R - 2005 года выпуска
-
№АртикулНазвание
-
130130L0616 BOLT, FLANGEDBOLT, FLANGED
-
1105311053-0404 BRACKET, UPPER COWLINGBRACKET, UPPER COWLING
-
11053A11053-1613 BRACKET, UPPER COWLINGBRACKET, UPPER COWLING
-
1409114091-0406 COVER, SIGNAL LAMP (LEFT)COVER, SIGNAL LAMP (LEFT)
-
14091A14091-0407 COVER, SIGNAL LAMP (RIGHT)COVER, SIGNAL LAMP (RIGHT)
-
2701227012-0051 MAGIC TAPEMAGIC TAPE
-
3506335063-0100 STAY, UPPER COWLING (LEFT)STAY, UPPER COWLING (LEFT)
-
35063A35063-0101 STAY, UPPER COWLING (RIGHT)STAY, UPPER COWLING (RIGHT)
-
3915439154-0001 WINDSHIELDWINDSHIELD
-
5502855028-0005-724 COWLING, UPPER (LEFT) (P.M.RED)COWLING, UPPER (LEFT) (P.M.RED)
-
55028A55028-0005-725 COWLING, UPPER (LEFT)TITANIUMCOWLING, UPPER (LEFT)TITANIUM
-
55028B55028-0005-777 COWLING, UPPER (LEFT)L.GREENCOWLING, UPPER (LEFT)L.GREEN
-
55028C55028-0006-724 COWLING, UPPER (RIGHT) (P.M.RED)COWLING, UPPER (RIGHT) (P.M.RED)
-
55028D55028-0006-725 COWLING, UPPER (RIGHT)TITANIUMCOWLING, UPPER (RIGHT)TITANIUM
-
55028E55028-0006-777 COWLING, UPPER (RIGHT)L.GREENCOWLING, UPPER (RIGHT)L.GREEN
-
55028F55028-0038 COWLING, FRONT (LEFT)COWLING, FRONT (LEFT)
-
55028G55028-0039 COWLING, FRONT (RIGHT)COWLING, FRONT (RIGHT)
-
5505255052-5121-724 COWLING, ASSY, UPPER, CENTER (P.M.RED)COWLING, ASSY, UPPER, CENTER (P.M.RED)
-
55052A55052-5121-725 COWLING, ASSY, UPPER, CENTER, TITANIUMCOWLING, ASSY, UPPER, CENTER, TITANIUM
-
55052B55052-5121-777 COWLING, ASSY, UPPER, CENTER (L.GREEN)COWLING, ASSY, UPPER, CENTER (L.GREEN)
-
5600156001-0005 MIRROR, ASSY (LEFT)MIRROR, ASSY (LEFT)
-
56001A56001-0006 MIRROR, ASSY (RIGHT)MIRROR, ASSY (RIGHT)
-
9201592015-1757 NUT, WELL, 5MMNUT, WELL, 5MM
-
9207592075-1067 DAMPERDAMPER
-
92075A92075-1690 DAMPERDAMPER
-
9215392153-1244 BOLT, SOCKET, 5X16BOLT, SOCKET, 5X16
-
9217292172-0006 SCREW, TAPPING, 5X14SCREW, TAPPING, 5X14
-
9220092200-1011 WASHER, NYLON, 5.2X12X1WASHER, NYLON, 5.2X12X1
-
9221092210-0003 NUT, CAP, 6MMNUT, CAP, 6MM
-
92210A92210-0007 NUT, FLANGED, 5MMNUT, FLANGED, 5MM
-
92210B92210-0130 NUTNUT
