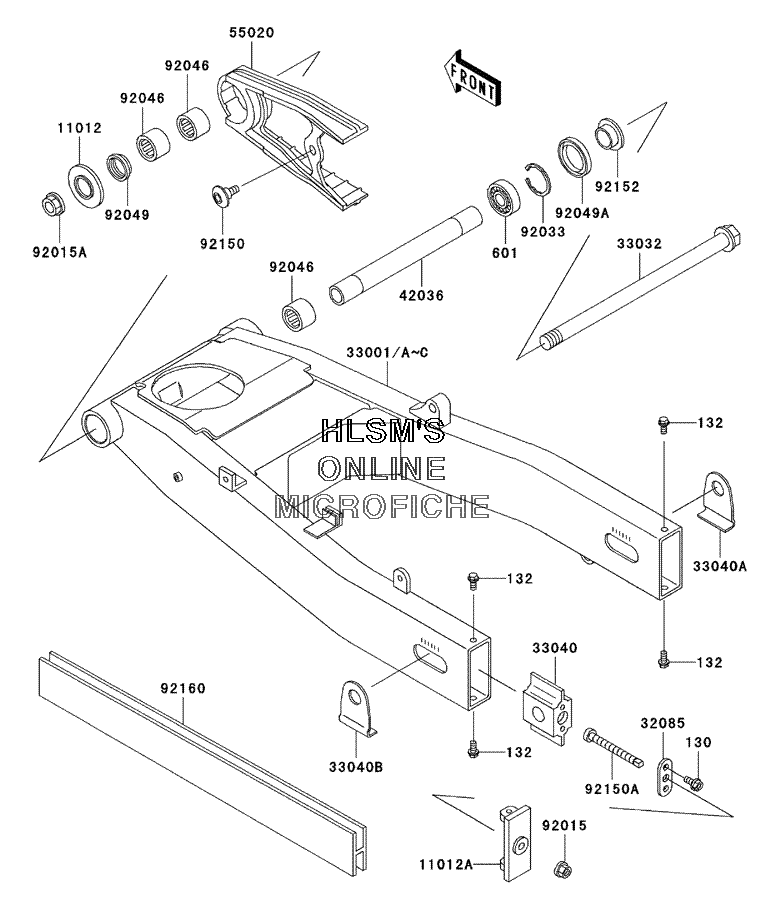

SUSPENSION - SWINGARM для Kawasaki ZZR600 - 2004 года выпуска

  • №
    Артикул
    Название
  • 130
    130H0614 BOLT, FLANGED, 6X14
    BOLT, FLANGED, 6X14
  • 132
    132E0612 BOLT, FLANGED, SMALL
    BOLT, FLANGED, SMALL
  • 601
    601A6004 BEARING, BALL, #6004
    BEARING, BALL, #6004
  • 11012
    11012-1658 CAP
    CAP
  • 11012A
    11012-1704 CAP, CHAIN ADJUSTER
    CAP, CHAIN ADJUSTER
  • 32085
    32085-1351 STOPPER, CHAIN ADJUSTER
    STOPPER, CHAIN ADJUSTER
  • 33001
    33001-0033-TX ARM, COMP, SWING (SILVER) (CANADA ONLY)
    ARM, COMP, SWING (SILVER) (CANADA ONLY)
  • 33001A
    33001-0033-VZ ARM, COMP, SWING (SILVER) (US ONLY)
    ARM, COMP, SWING (SILVER) (US ONLY)
  • 33032
    33032-1165 SHAFT, SWING ARM
    SHAFT, SWING ARM
  • 33040
    33040-1133 ADJUSTER, CHAIN, INNERSIDE
    ADJUSTER, CHAIN, INNERSIDE
  • 33040A
    33040-1135 ADJUSTER, CHAIN, OUTERSIDE (RIGHT)
    ADJUSTER, CHAIN, OUTERSIDE (RIGHT)
  • 33040B
    33040-1141 ADJUSTER, CHAIN, OUTERSIDE (LEFT)
    ADJUSTER, CHAIN, OUTERSIDE (LEFT)
  • 42036
    42036-1283 SLEEVE, SWING ARM, L=213
    SLEEVE, SWING ARM, L=213
  • 55020
    55020-1524 GUARD, CHAIN
    GUARD, CHAIN
  • 92015
    92015-1406 NUT, FLANGED, 8MM
    NUT, FLANGED, 8MM
  • 92015A
    92015-1724 NUT, FLANGED, 20MM
    NUT, FLANGED, 20MM
  • 92033
    92033-1041 RING, SNAP, 42MM
    RING, SNAP, 42MM
  • 92046
    92046-0008 BEARING, NEEDLE, 7E, HVS 28X34X17
    BEARING, NEEDLE, 7E, HVS 28X34X17
  • 92049
    92049-1181 SEAL, OIL
    SEAL, OIL
  • 92049A
    92049-1314 SEAL, OIL, MHSA25 42 6
    SEAL, OIL, MHSA25 42 6
  • 92150
    92150-1154 BOLT, SOCKET, 6MM
    BOLT, SOCKET, 6MM
  • 92150A
    92150-1285 BOLT, CHAIN ADJUSTER
    BOLT, CHAIN ADJUSTER
  • 92152
    92152-1234 COLLAR, SWING ARM, L=12.5
    COLLAR, SWING ARM, L=12.5
  • 92160
    92160-1174 DAMPER, SWING ARM
    DAMPER, SWING ARM
