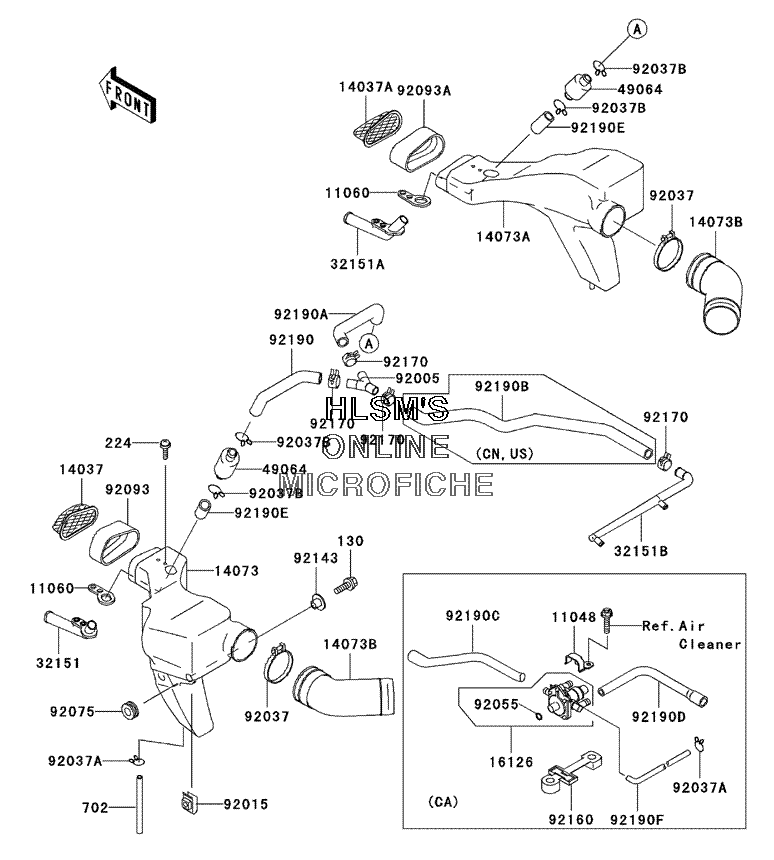

AIR DUCT для Kawasaki ZZR600 - 2004 года выпуска

  • №
    Артикул
    Название
  • 11048
    11048-1179 BRACKET, VALVE (CALIF. ONLY)
    BRACKET, VALVE (CALIF. ONLY)
  • 11060
    11060-1343 GASKET
    GASKET
  • 14037
    14037-1166 SCREEN, AIR DUCT (LEFT)
    SCREEN, AIR DUCT (LEFT)
  • 14037A
    14037-1167 SCREEN, AIR DUCT (RIGHT)
    SCREEN, AIR DUCT (RIGHT)
  • 14073
    14073-1549 DUCT, AIR INTAKE (LEFT)
    DUCT, AIR INTAKE (LEFT)
  • 14073A
    14073-1550 DUCT, AIR INTAKE (RIGHT)
    DUCT, AIR INTAKE (RIGHT)
  • 14073B
    14073-1574 DUCT, DUCT, AIR FILTER
    DUCT, DUCT, AIR FILTER
  • 16126
    16126-1274 VALVE, CANISTER (CALIF. ONLY)
    VALVE, CANISTER (CALIF. ONLY)
  • 32151
    32151-1462 PIPE, LEFT
    PIPE, LEFT
  • 32151A
    32151-1463 PIPE, RIGHT
    PIPE, RIGHT
  • 32151B
    32151-1540 PIPE
    PIPE
  • 49064
    49064-1055 FILTER, AIR
    FILTER, AIR
  • 92005
    92005-1250 FITTING, Y, TIPE
    FITTING, Y, TIPE
  • 92015
    92015-1602 NUT, 6MM
    NUT, 6MM
  • 92037
    92037-1409 CLAMP, AIR FILTER
    CLAMP, AIR FILTER
  • 92037A
    92037-1712 CLAMP (EXCEPT CALIF.)
    CLAMP (EXCEPT CALIF.)
  • 92037A
    92037-1712 CLAMP (CALIF. ONLY)
    CLAMP (CALIF. ONLY)
  • 92037B
    92037-213 CLAMP, TUBE
    CLAMP, TUBE
  • 92055
    92055-1524 O-RING (CALIF. ONLY)
    O-RING (CALIF. ONLY)
  • 92075
    92075-1634 DAMPER
    DAMPER
  • 92093
    92093-1347 SEAL (LEFT)
    SEAL (LEFT)
  • 92093A
    92093-1348 SEAL (RIGHT)
    SEAL (RIGHT)
  • 92143
    92143-1016 COLLAR, L=9.6
    COLLAR, L=9.6
  • 92160
    92160-1431 DAMPER (CALIF. ONLY)
    DAMPER (CALIF. ONLY)
  • 92170
    92170-1060 CLAMP
    CLAMP
  • 92190
    92190-1413 TUBE, 14X20X158 (LEFT)
    TUBE, 14X20X158 (LEFT)
  • 92190A
    92190-1414 TUBE, 14X20X158 (RIGHT)
    TUBE, 14X20X158 (RIGHT)
  • 92190B
    92190-1415 TUBE, 14X20X525 (EXCEPT CALIF.)
    TUBE, 14X20X525 (EXCEPT CALIF.)
  • 92190C
    92190-1422 TUBE, VALVE, FITTING (CALIF. ONLY)
    TUBE, VALVE, FITTING (CALIF. ONLY)
  • 92190D
    92190-1423 TUBE, VALVE, FITTING (CALIF. ONLY)
    TUBE, VALVE, FITTING (CALIF. ONLY)
  • 92190E
    92190-1429 TUBE, 14X20X28
    TUBE, 14X20X28
  • 92190F
    92190-1444 TUBE, 4X9X276 (CALIF. ONLY)
    TUBE, 4X9X276 (CALIF. ONLY)
  • 130
    130H0625 BOLT, FLANGED, 6X25
    BOLT, FLANGED, 6X25
  • 224
    224C0512 SCREW, PAN, WP, CROS, 5X12
    SCREW, PAN, WP, CROS, 5X12
  • 702
    702A07120 TUBE, RUBBER, 7X10X120
    TUBE, RUBBER, 7X10X120
