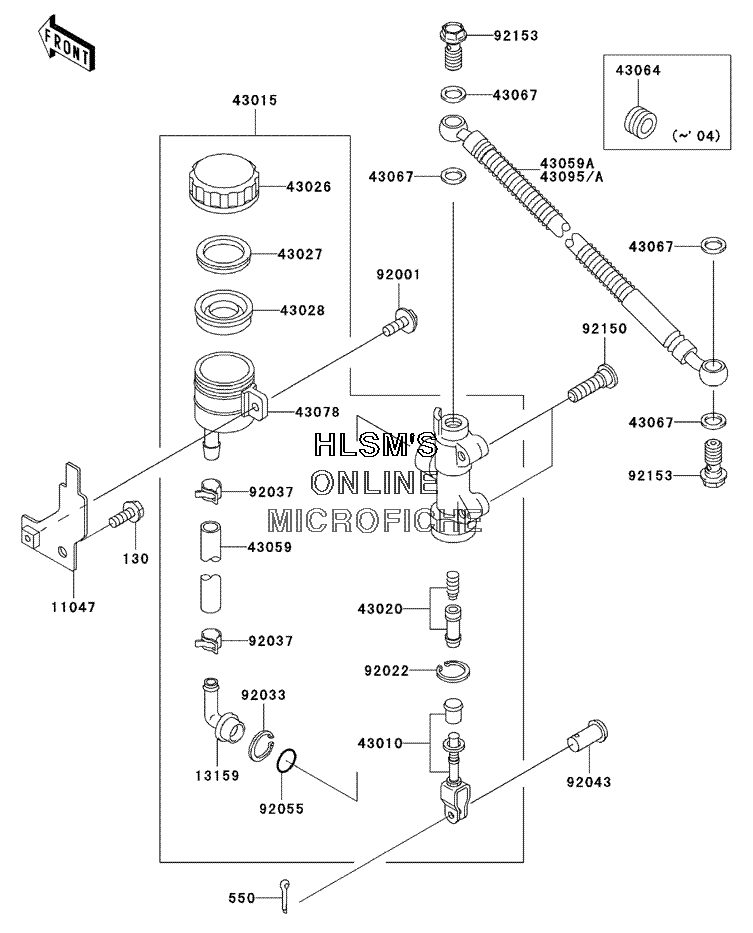

BRAKE - MASTER CYLINDER - REAR для Kawasaki ZZR600 - 2004 года выпуска

  • №
    Артикул
    Название
  • 130
    130J0616 BOLT, FLANGED, 6X16 (BLACK)
    BOLT, FLANGED, 6X16 (BLACK)
  • 550
    550D2015 PIN, COTTER, 2.0X15
    PIN, COTTER, 2.0X15
  • 11047
    11047-1940 BRACKET, RESERVOIR TANK
    BRACKET, RESERVOIR TANK
  • 13159
    13159-1052 CONNECTOR, REAR MASTER CYLINDER
    CONNECTOR, REAR MASTER CYLINDER
  • 43010
    43010-1055 ROD, ASSY., BRAKE
    ROD, ASSY., BRAKE
  • 43015
    43015-1510 CYLINDER, ASSY., MASTER, REAR
    CYLINDER, ASSY., MASTER, REAR
  • 43020
    43020-1073 PISTON, COMP, BRAKE
    PISTON, COMP, BRAKE
  • 43026
    43026-1051 CAP, BRAKE
    CAP, BRAKE
  • 43027
    43027-1051 PLATE, DIAPHRAGM
    PLATE, DIAPHRAGM
  • 43028
    43028-1057 DIAPHRAGM, MASTER CYLINDER
    DIAPHRAGM, MASTER CYLINDER
  • 43059
    43059-1566 HOSE, BRAKE, REAR MASTER CYLINDER
    HOSE, BRAKE, REAR MASTER CYLINDER
  • 43064
    43064-006 GROMMET, HOSE CLAMP (US ONLY)
    GROMMET, HOSE CLAMP (US ONLY)
  • 43067
    43067-001 WASHER, 10.5X15X1.5
    WASHER, 10.5X15X1.5
  • 43078
    43078-1082 RESERVOIR, REAR MASTER CYLINDER
    RESERVOIR, REAR MASTER CYLINDER
  • 43095
    43095-1378 HOSE, BRAKE, REAR (US ONLY)
    HOSE, BRAKE, REAR (US ONLY)
  • 43095A
    43095-1382 HOSE, BRAKE, REAR (CANADA ONLY)
    HOSE, BRAKE, REAR (CANADA ONLY)
  • 92001
    92001-1860 BOLT, W/P, 6X16
    BOLT, W/P, 6X16
  • 92022
    92022-1601 WASHER, CIRCRIP
    WASHER, CIRCRIP
  • 92033
    92033-1186 RING, SNAP, 20.5MM
    RING, SNAP, 20.5MM
  • 92037
    92037-1547 CLAMP, BRAKE HOSE
    CLAMP, BRAKE HOSE
  • 92043
    92043-1303 PIN, 8MM
    PIN, 8MM
  • 92055
    92055-1251 O-RING, MASTER CYLINDER
    O-RING, MASTER CYLINDER
  • 92150
    92150-1843 BOLT, SOCKET, 8X30
    BOLT, SOCKET, 8X30
  • 92153
    92153-0627 BOLT, OIL, L=23
    BOLT, OIL, L=23
