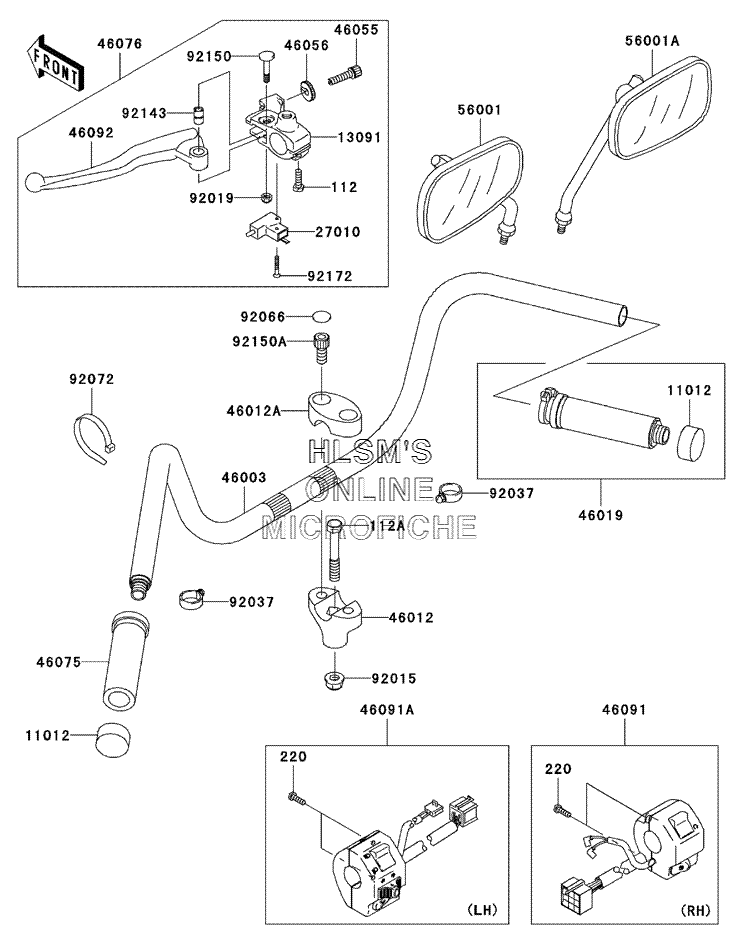

HANDLEBAR для Kawasaki Vulcan 800 - 2004 года выпуска`
-
№АртикулНазвание
-
112112G0620 BOLT, UPSETBOLT, UPSET
-
112A112H1065 BOLT, UPSET, 10X65BOLT, UPSET, 10X65
-
220220R0516 SCREW, PAN, CROSSCREW, PAN, CROS
-
1101211012-1975 CAP, GRIP ENDCAP, GRIP END
-
1309113091-1671 HOLDER, CLUTCH LEVER (SILVER)HOLDER, CLUTCH LEVER (SILVER)
-
2701027010-1268 SWITCH, CLUTCHSWITCH, CLUTCH
-
4600346003-1459 HANDLEHANDLE
-
4601246012-1272 HOLDER, HANDLE, LOWERHOLDER, HANDLE, LOWER
-
46012A46012-1273 HOLDER, HANDLE, UPPERHOLDER, HANDLE, UPPER
-
4601946019-1109 GRIP, ASSY, THROTTLEGRIP, ASSY, THROTTLE
-
4605546055-003 SCREW, CABLE ADJUST, 8MMSCREW, CABLE ADJUST, 8MM
-
4605646056-005 NUT, CABLE ADJUST LOCK, 8MMNUT, CABLE ADJUST LOCK, 8MM
-
4607546075-1074 GRIP (LEFT)GRIP (LEFT)
-
4607646076-1174 LEVER, ASSY, GRIP, CLUTCH (SILVER)LEVER, ASSY, GRIP, CLUTCH (SILVER)
-
4609146091-0014 HOUSING, ASSY, CONTROL (RIGHT)HOUSING, ASSY, CONTROL (RIGHT)
-
46091A46091-0015 HOUSING, ASSY, CONTROL (LEFT)HOUSING, ASSY, CONTROL (LEFT)
-
4609246092-1164 LEVER, GRIP, CLUTCHLEVER, GRIP, CLUTCH
-
5600156001-1407 MIRROR, ASSY (LEFT)MIRROR, ASSY (LEFT)
-
56001A56001-1408 MIRROR, ASSY (RIGHT)MIRROR, ASSY (RIGHT)
-
9201592015-1717 NUT, LOCK, FLANGED, 10MMNUT, LOCK, FLANGED, 10MM
-
9201992019-008 NUT, LOCK, 6MMNUT, LOCK, 6MM
-
9203792037-1827 CLAMP, HOSECLAMP, HOSE
-
9206692066-1285 PLUGPLUG
-
9207292072-1195 BAND, L=202BAND, L=202
-
9214392143-1351 COLLARCOLLAR
-
9215092150-1330 BOLT, LEVER SETBOLT, LEVER SET
-
92150A92150-1942 BOLT, SOCKET, 10X23BOLT, SOCKET, 10X23
-
9217292172-0164 SCREW, 3X20SCREW, 3X20
