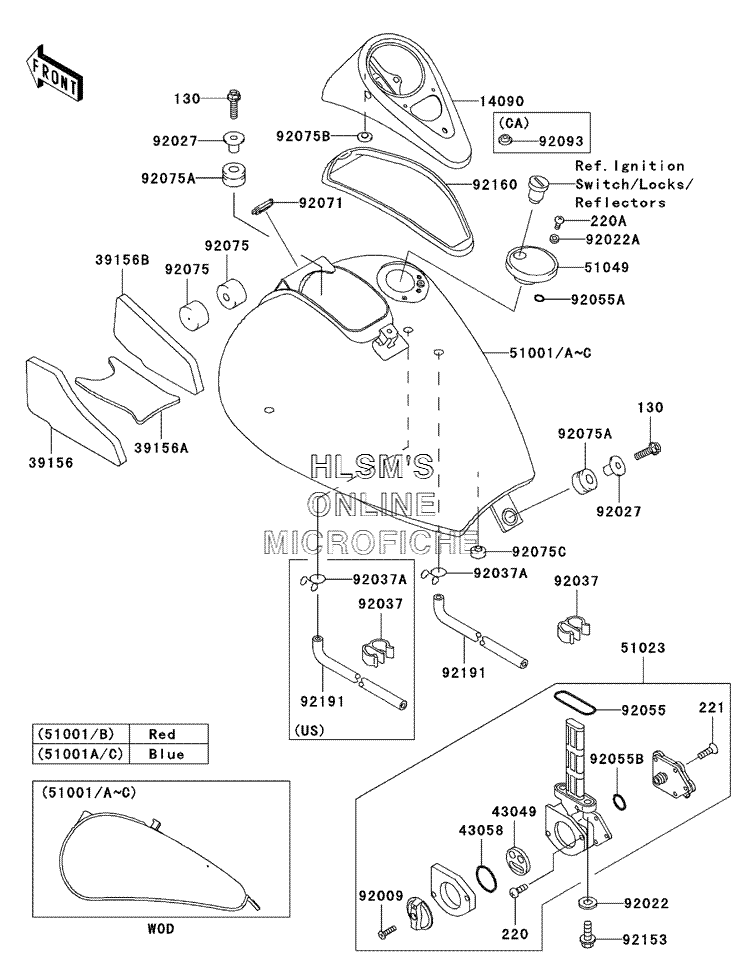

FUEL TANK для Kawasaki Vulcan 800 - 2004 года выпуска`
-
№АртикулНазвание
-
1409014090-1560 COVER, METERCOVER, METER
-
3915639156-1512 PAD, FUEL TANK (LEFT)PAD, FUEL TANK (LEFT)
-
39156A39156-1513 PAD, FUEL TANK (CENTER)PAD, FUEL TANK (CENTER)
-
39156B39156-1629 PAD, FUEL TANK (RIGHT)PAD, FUEL TANK (RIGHT)
-
4304943049-1075 PACKING, TAP VALVEPACKING, TAP VALVE
-
4305843058-1083 RING, TAP LEVERRING, TAP LEVER
-
5100151001-1649-369 TANK, COMP, FUEL (M.R.RED) (CALIF. ONLY)TANK, COMP, FUEL (M.R.RED) (CALIF. ONLY)
-
51001B51001-1650-369 TANK, COMP, FUEL (M.R.RED) (US ONLY)TANK, COMP, FUEL (M.R.RED) (US ONLY)
-
5102351023-1260 TAP, ASSY, FUELTAP, ASSY, FUEL
-
5104951049-0003 CAP, TANK, FUELCAP, TANK, FUEL
-
130130H0830 BOLT, FLANGED, 8X30BOLT, FLANGED, 8X30
-
220220B0308 SCREW, PAN, CROSSCREW, PAN, CROS
-
220A220D0510 SCREW, PAN, CROSSCREW, PAN, CROS
-
9200992009-1742 SCREW, 4X12SCREW, 4X12
-
9202292022-183 WASHER, 6.2X11X1.5WASHER, 6.2X11X1.5
-
92022A92022-1977 WASHER, 5.1X10X1.0WASHER, 5.1X10X1.0
-
9202792027-1780 COLLAR, L=19.3COLLAR, L=19.3
-
9203792037-1458 CLAMP (CALIF. ONLY)CLAMP (CALIF. ONLY)
-
9203792037-1458 CLAMP (US ONLY)CLAMP (US ONLY)
-
92037A92037-147 CLAMP, TUBE (CALIF. ONLY)CLAMP, TUBE (CALIF. ONLY)
-
92037A92037-147 CLAMP, TUBE (US ONLY)CLAMP, TUBE (US ONLY)
-
9205592055-1112 O-RING, FUEL TAP PACKINGO-RING, FUEL TAP PACKING
-
92055A92055-1552 O-RING, ID=9O-RING, ID=9
-
92055B92055-1649 O-RINGO-RING
-
9207192071-0013 GROMMETGROMMET
-
9207592075-125 DAMPER, FUEL TANKDAMPER, FUEL TANK
-
92075A92075-1736 DAMPERDAMPER
-
92075B92075-261 DAMPER, RUBBERDAMPER, RUBBER
-
92075C92075-281 DAMPERDAMPER
-
9209392093-1030 SEAL, FUEL TANK CAP (CALIF. ONLY)SEAL, FUEL TANK CAP (CALIF. ONLY)
-
9215392153-0514 BOLT, FLANGED, 6X25BOLT, FLANGED, 6X25
-
9216092160-1593 DAMPER, METER COVERDAMPER, METER COVER
-
9219192191-1015 TUBE (CALIF. ONLY)TUBE (CALIF. ONLY)
-
9219192191-1015 TUBE (US ONLY)TUBE (US ONLY)
-
221221B0414 SCREW, CSK, CROS, 4X14SCREW, CSK, CROS, 4X14
