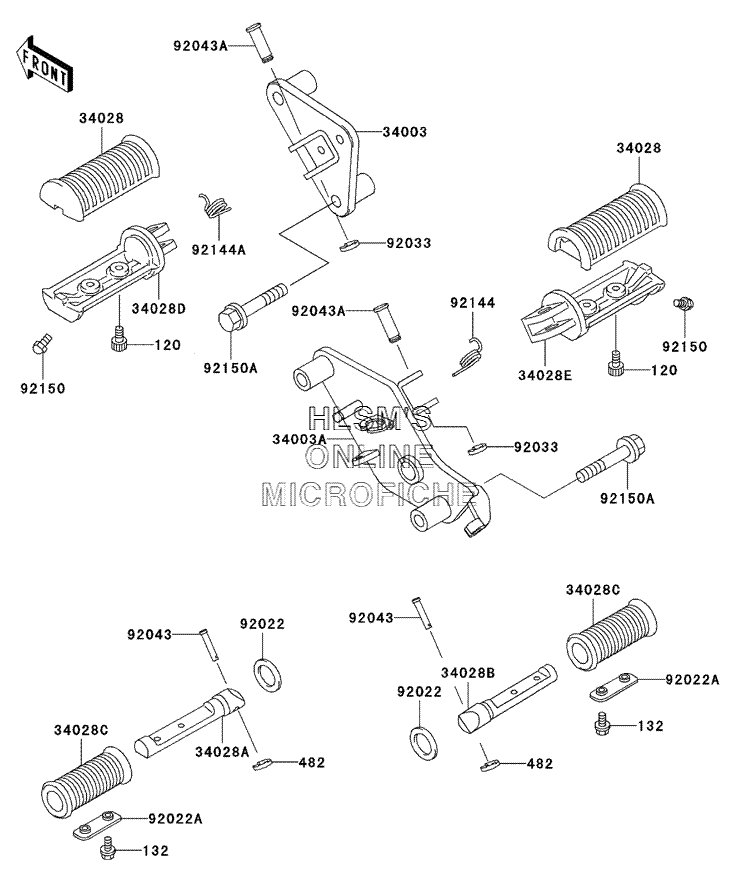

FOOTRESTS для Kawasaki Vulcan 800 - 2004 года выпуска

  • №
    Артикул
    Название
  • 120
    120S0512 BOLT, SOCKET
    BOLT, SOCKET
  • 132
    132J0510 BOLT, FLANGED, SMALL
    BOLT, FLANGED, SMALL
  • 482
    482L7000 CIRCLIP, TYPE, E
    CIRCLIP, TYPE, E
  • 34003
    34003-1413 HOLDER, STEP, FRONT (LEFT)
    HOLDER, STEP, FRONT (LEFT)
  • 34003A
    34003-1414 HOLDER, STEP, FRONT (RIGHT)
    HOLDER, STEP, FRONT (RIGHT)
  • 34028
    34028-1217 STEP, FRONT, RUBBER
    STEP, FRONT, RUBBER
  • 34028A
    34028-1219 STEP, REAR (LEFT)
    STEP, REAR (LEFT)
  • 34028B
    34028-1220 STEP, REAR (RIGHT)
    STEP, REAR (RIGHT)
  • 34028C
    34028-1221 STEP, REAR, RUBBER
    STEP, REAR, RUBBER
  • 34028D
    34028-1407 STEP, FRONT (LEFT)
    STEP, FRONT (LEFT)
  • 34028E
    34028-1408 STEP, FRONT (RIGHT)
    STEP, FRONT (RIGHT)
  • 92022
    92022-1568 WASHER, 20X30X2.3
    WASHER, 20X30X2.3
  • 92022A
    92022-1874 WASHER, STEP
    WASHER, STEP
  • 92033
    92033-1166 RING, SNAP, 10MM
    RING, SNAP, 10MM
  • 92043
    92043-1339 PIN, 8X36.5
    PIN, 8X36.5
  • 92043A
    92043-1358 PIN, 12X37
    PIN, 12X37
  • 92144
    92144-1126 SPRING, STEP RETURN
    SPRING, STEP RETURN
  • 92144A
    92144-1210 SPRING, STEP RETURN
    SPRING, STEP RETURN
  • 92150
    92150-1153 BOLT, BANK SENSER
    BOLT, BANK SENSER
  • 92150A
    92150-1897 BOLT, FLANGED, 10X55
    BOLT, FLANGED, 10X55
