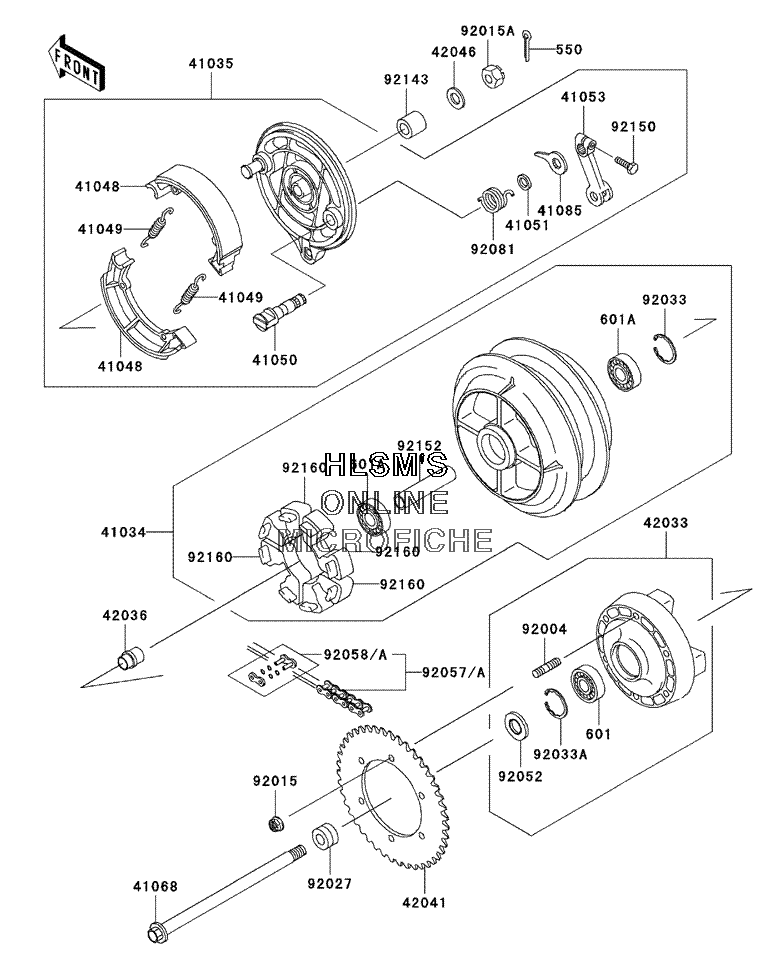

WHEEL - REAR W/ CHAIN для Kawasaki Vulcan 500 LTD - 2004 года выпуска`
-
№АртикулНазвание
-
550550D4035 PIN, COTTER, 4.0X35PIN, COTTER, 4.0X35
-
601601B6205UG BEARING, BALL, #6205UGBEARING, BALL, #6205UG
-
601A601B6303UU BEARING, BALL, #6303UUC3BEARING, BALL, #6303UUC3
-
4103441034-1258 DRUM, ASSY., REAR BRAKEDRUM, ASSY., REAR BRAKE
-
4103541035-1485 PANEL, ASSY., BRAKE, REARPANEL, ASSY., BRAKE, REAR
-
4104841048-1070 SHOE, BRAKESHOE, BRAKE
-
4104941049-012 SPRING, BRAKE SHOESPRING, BRAKE SHOE
-
4105041050-1059 CAM, BRAKECAM, BRAKE
-
4105141051-003 SEAL, BRAKE CAMSEAL, BRAKE CAM
-
4105341053-1072 LEVER, BRAKE CAMLEVER, BRAKE CAM
-
4106841068-1377 AXLE, REARAXLE, REAR
-
4108541085-1054 INDICATORINDICATOR
-
4203342033-1219 COUPLING, ASSY., REAR HUBCOUPLING, ASSY., REAR HUB
-
4203642036-1328 SLEEVE, REAR HUB, L=28SLEEVE, REAR HUB, L=28
-
4204142041-1474 SPROCKET, HUB (42 TEETH)SPROCKET, HUB (42 TEETH)
-
4204642046-009 WASHER, 17.3X32X3.2WASHER, 17.3X32X3.2
-
9200492004-1275 STUD, 10X19STUD, 10X19
-
9201592015-1335 NUT, FLANGED, 10MMNUT, FLANGED, 10MM
-
92015A92015-1951 NUT, CASTLE, 16MMNUT, CASTLE, 16MM
-
9202792027-1368 COLLAR, REAR AXLE L=23.5 (LEFT)COLLAR, REAR AXLE L=23.5 (LEFT)
-
9203392033-1042 RING, SNAP, 47MMRING, SNAP, 47MM
-
92033A92033-1043 RING, SNAP, 52MMRING, SNAP, 52MM
-
9205292052-006 SEAL, OIL, TWC35527SEAL, OIL, TWC35527
-
92057A92057-0049 CHAIN, DRIVE, EK520MVXLX110LCHAIN, DRIVE, EK520MVXLX110L
-
9205892058-0002 JOINT, CHAIN, DRIVEJOINT, CHAIN, DRIVE
-
9208192081-1814 SPRING, BRAKE CAM LEVER RETURNSPRING, BRAKE CAM LEVER RETURN
-
9214392143-1898 COLLAR, REAR AXLE L=33.5 (RIGHT)COLLAR, REAR AXLE L=33.5 (RIGHT)
-
9215092150-1797 BOLT, 8X27BOLT, 8X27
-
9215292152-1117 COLLAR, REAR HUB, L=101COLLAR, REAR HUB, L=101
-
9216092160-1697 DAMPER, SHOCK, REAR HUBDAMPER, SHOCK, REAR HUB
