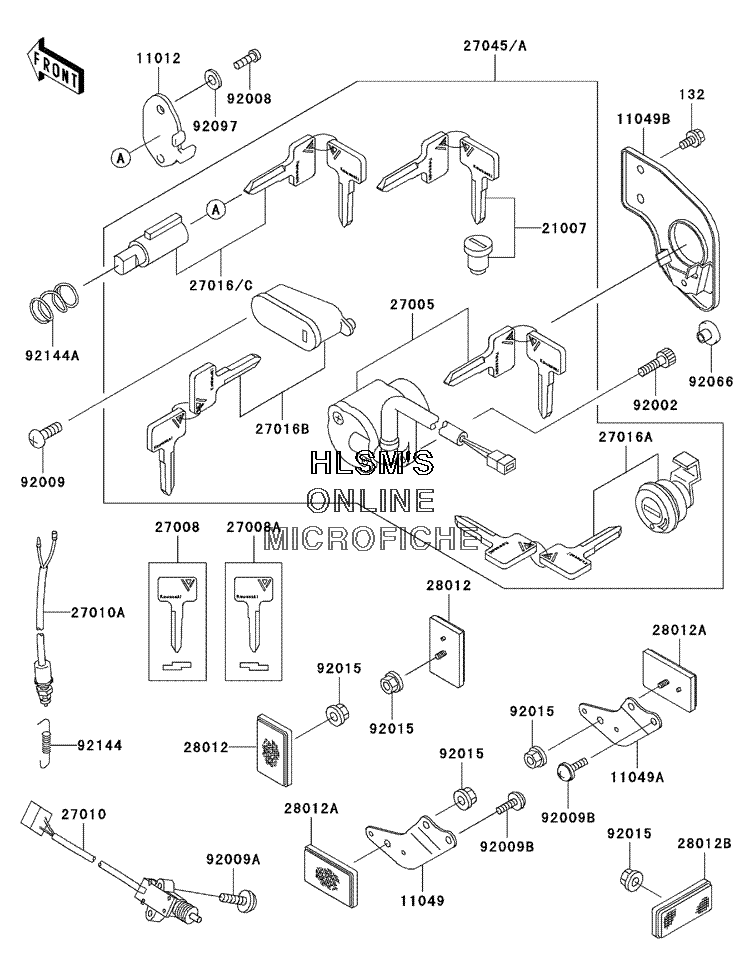

IGNITION SWITCH W/ LOCKS AND REFLECTORS для Kawasaki Vulcan 500 LTD - 2004 года выпуска
-
№АртикулНазвание
-
132132J0610 BOLT, FLANGED, SMALL, 6X10BOLT, FLANGED, SMALL, 6X10
-
1101211012-1586 CAP, STEERING LOCKCAP, STEERING LOCK
-
1104911049-1568 BRACKET, REFLECTOR (LEFT)BRACKET, REFLECTOR (LEFT)
-
11049A11049-1569 BRACKET, REFLECTOR (RIGHT)BRACKET, REFLECTOR (RIGHT)
-
11049B11049-1653 BRACKET, IGNITION SWITCHBRACKET, IGNITION SWITCH
-
2100721007-5024 ROTOR, LOCK, TANK CAPROTOR, LOCK, TANK CAP
-
2700527005-1204 SWITCH, ASSY., IGNITIONSWITCH, ASSY., IGNITION
-
2700827008-1138 KEY, LOCK, BLANK, #A (OPT)KEY, LOCK, BLANK, #A (OPT)
-
27008A27008-1139 KEY, LOCK, BLANK, #B (OPT)KEY, LOCK, BLANK, #B (OPT)
-
2701027010-1223 SWITCH, SIDE STANDSWITCH, SIDE STAND
-
27010A27010-1477 SWITCH, REAR BRAKESWITCH, REAR BRAKE
-
27016A27016-5225 LOCK, ASSY., LIDLOCK, ASSY., LID
-
27016B27016-5226 LOCK, ASSY., HELMETLOCK, ASSY., HELMET
-
27016C27016-5299 LOCK, ASSY., STEERINGLOCK, ASSY., STEERING
-
27045A27045-5192 SWITCH, ASSY.SWITCH, ASSY.
-
2801228012-1009 REFLECTOR, REFLEX, FRONTREFLECTOR, REFLEX, FRONT
-
28012A28012-1051 REFLECTOR, REFLEX, REARREFLECTOR, REFLEX, REAR
-
28012B28012-1077 REFLECTOR, REFLEXREFLECTOR, REFLEX
-
9200292002-1805 BOLT, SOCKET, 5X18BOLT, SOCKET, 5X18
-
9200892008-007 SCREW, 3.51MMSCREW, 3.51MM
-
9200992009-1341 SCREW, 5X14SCREW, 5X14
-
92009A92009-1459 SCREW, 5X20SCREW, 5X20
-
92009B92009-1651 SCREW, 5X10SCREW, 5X10
-
9201592015-1259 NUT, FLANGED, 5MMNUT, FLANGED, 5MM
-
9206692066-1435 PLUGPLUG
-
9209792097-003 WASHER, WAVEWASHER, WAVE
-
9214492144-1141 SPRING, REAR BRAKE SWITCHSPRING, REAR BRAKE SWITCH
-
92144A92144-1222 SPRING, STEERING LOCKSPRING, STEERING LOCK
