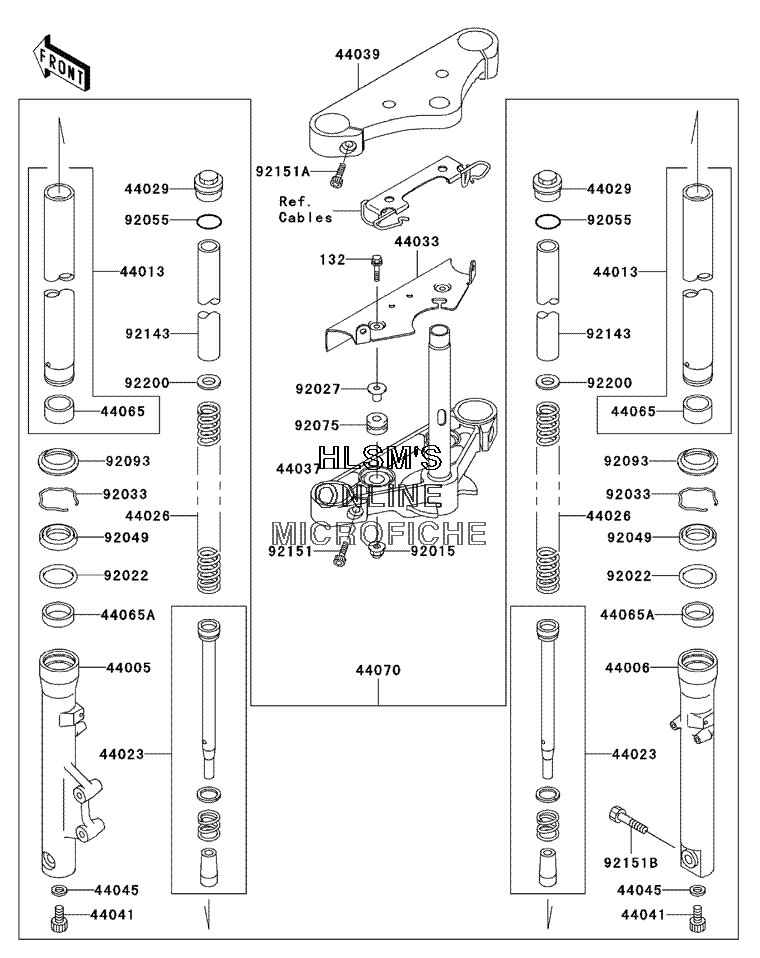

FRONT FORK для Kawasaki Vulcan 500 LTD - 2004 года выпуска
-
№АртикулНазвание
-
132132E0625 BOLT, FLANGED, SMALLBOLT, FLANGED, SMALL
-
4400544005-1365 PIPE, LEFT FORK OUTERPIPE, LEFT FORK OUTER
-
4400644006-1364 PIPE, RIGHT FORK OUTERPIPE, RIGHT FORK OUTER
-
4401344013-1422 PIPE, FORK INNERPIPE, FORK INNER
-
4402344023-1099 CYLINDER, COMP, FORKCYLINDER, COMP, FORK
-
4402644026-1606 SPRING, FRONT FORKSPRING, FRONT FORK
-
4402944029-1147 SEAT, FORK SPRINGSEAT, FORK SPRING
-
4403344033-1213 COVER, FORKCOVER, FORK
-
4403744037-1341 HOLDER, FORK UNDERHOLDER, FORK UNDER
-
4403944039-1265 HOLDER, FORK UPPERHOLDER, FORK UPPER
-
4404144041-040 BOLT, SOCKET, FORK CYLINDERBOLT, SOCKET, FORK CYLINDER
-
4404544045-057 GASKETGASKET
-
4406544065-1114 BUSHING, FRONT FORK, INNERNER PIPEBUSHING, FRONT FORK, INNERNER PIPE
-
44065A44065-1115 BUSHING, FRONT FORK, OUTER TUBEBUSHING, FRONT FORK, OUTER TUBE
-
4407044070-1482 DAMPER, ASSY., FORKDAMPER, ASSY., FORK
-
9201592015-1385 NUT, CAP, 6MMNUT, CAP, 6MM
-
9202292022-1298 WASHER, FORK OUTER TUBEWASHER, FORK OUTER TUBE
-
9202792027-1847 COLLAR, L=16.1COLLAR, L=16.1
-
9203392033-1036 RING, SNAPRING, SNAP
-
9204992049-1494 SEAL, OIL, FORK OUTER TUBESEAL, OIL, FORK OUTER TUBE
-
9205592055-1321 O-RINGO-RING
-
9207592075-1035 DAMPERDAMPER
-
9209392093-1472 SEAL, FORK OUTER TUBESEAL, FORK OUTER TUBE
-
9214392143-1861 COLLAR, FORK, L=250COLLAR, FORK, L=250
-
9215192151-1080 BOLT, SOCKET, 10X25BOLT, SOCKET, 10X25
-
92151A92151-1081 BOLT, SOCKET, 8X25BOLT, SOCKET, 8X25
-
92151B92151-1082 BOLT, SOCKET, 10X40BOLT, SOCKET, 10X40
-
9220092200-1302 WASHERWASHER
