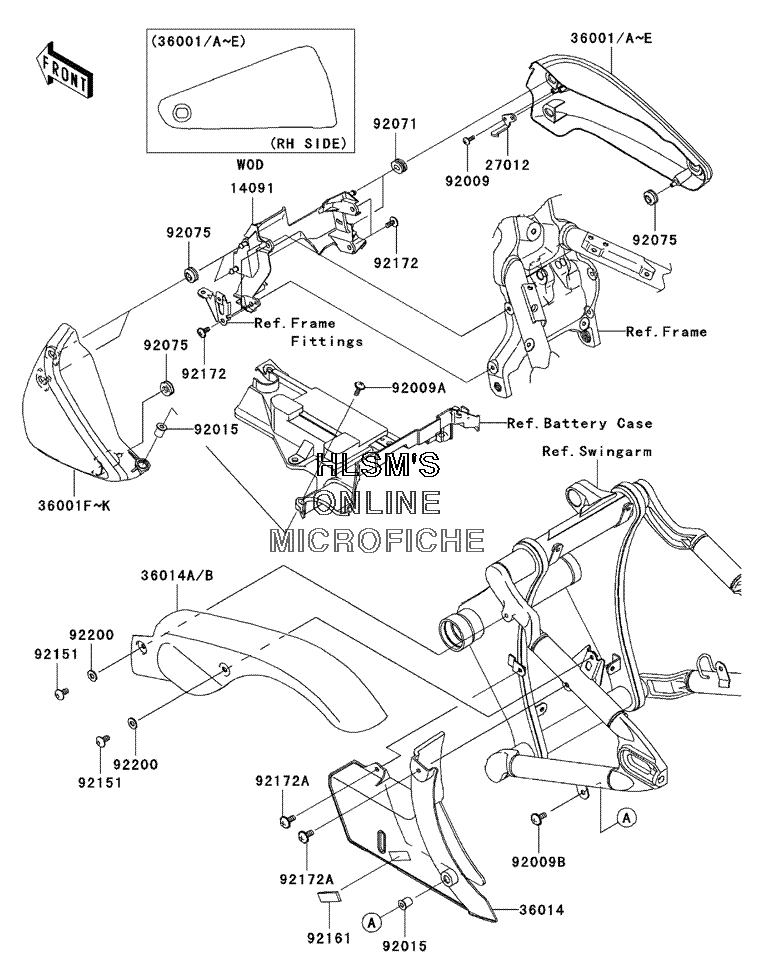

SIDE COVERS W/ CHAIN COVER для Kawasaki Vulcan 2000 - 2004 года выпуска`
-
№АртикулНазвание
-
1409114091-0237 COVER, SIDE COVER (CENTER)COVER, SIDE COVER (CENTER)
-
2701227012-0025 HOOK, SIDE COVER (RIGHT)HOOK, SIDE COVER (RIGHT)
-
36001A36001-0031-664 COVER, SIDE (RIGHT) (M.D.PURPLE)COVER, SIDE (RIGHT) (M.D.PURPLE)
-
36001B36001-0031-665 COVER, SIDE (RIGHT) (M.M.RED)COVER, SIDE (RIGHT) (M.M.RED)
-
36001C36001-0031-666 COVER, SIDE (RIGHT) (P.G.BLUE)COVER, SIDE (RIGHT) (P.G.BLUE)
-
36001G36001-0035-664 COVER, SIDE (LEFT) (M.D.PURPLE)COVER, SIDE (LEFT) (M.D.PURPLE)
-
36001H36001-0035-665 COVER, SIDE (LEFT) (M.M.RED)COVER, SIDE (LEFT) (M.M.RED)
-
36001I36001-0035-666 COVER, SIDE (LEFT) (P.G.BLUE)COVER, SIDE (LEFT) (P.G.BLUE)
-
3601436014-0014 CASE, CHAIN, LOWERCASE, CHAIN, LOWER
-
36014A36014-0015 CASE, CHAIN, UPPERCASE, CHAIN, UPPER
-
9200992009-1142 SCREW, TAPPING, 4X12 (BLACK)SCREW, TAPPING, 4X12 (BLACK)
-
92009A92009-1465 SCREW, 6X25SCREW, 6X25
-
92009B92009-1662 SCREW, 6X14SCREW, 6X14
-
9201592015-1700 NUTNUT
-
9207192071-0011 GROMMETGROMMET
-
9207592075-1067 DAMPERDAMPER
-
9215192151-1940 BOLT, SOCKET, 6X12BOLT, SOCKET, 6X12
-
9216192161-0124 DAMPERDAMPER
-
9217292172-0004 SCREW, 6X14SCREW, 6X14
-
92172A92172-0140 SCREW, 6X14SCREW, 6X14
-
9220092200-3775 WASHER, 6.5X14.5X1.5WASHER, 6.5X14.5X1.5
