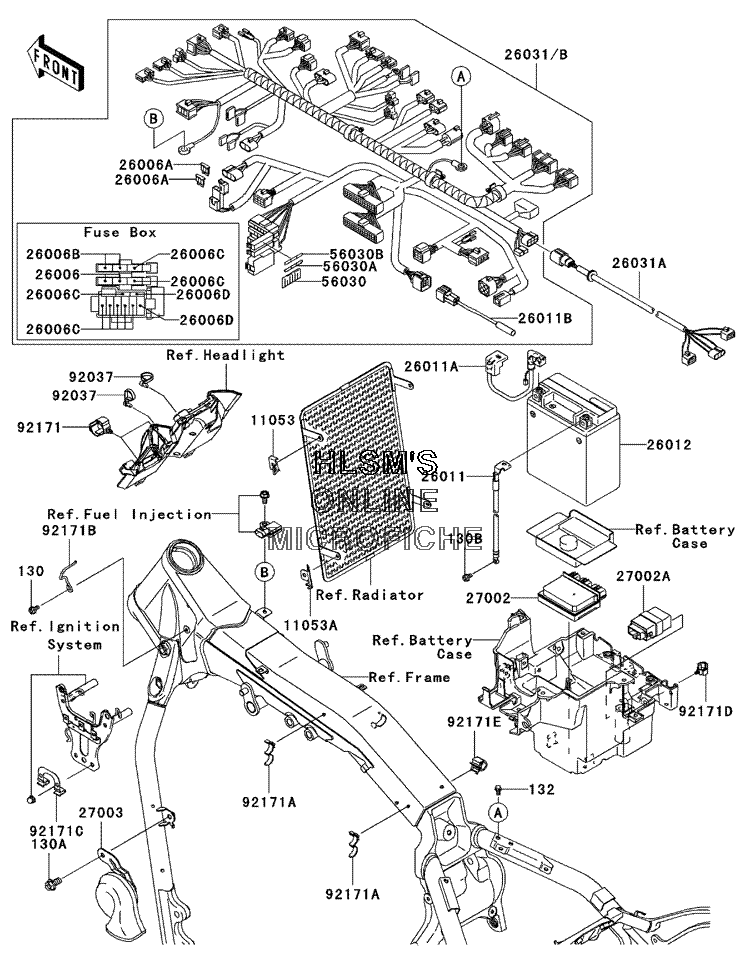

CHASSIS ELECTRICAL EQUIPMENT для Kawasaki Vulcan 2000 - 2004 года выпуска`
-
№АртикулНазвание
-
130130J0612 BOLT, FLANGED, 6X12BOLT, FLANGED, 6X12
-
130A130L0816 BOLT, FLANGED, 8X16BOLT, FLANGED, 8X16
-
130B130V0610 BOLT, FLANGED, 6X10BOLT, FLANGED, 6X10
-
132132L0610 BOLT, FLANGED, SMALL, 6X10BOLT, FLANGED, SMALL, 6X10
-
1105311053-0528 BRACKET, RADIATOR, UPPERBRACKET, RADIATOR, UPPER
-
11053A11053-0529 BRACKET, RADIATOR, LOWERBRACKET, RADIATOR, LOWER
-
2600626006-0001 FUSE, 15AFUSE, 15A
-
26006A26006-1006 FUSE, 30A, GFUSE, 30A, G
-
26006B26006-1077 FUSE, 5AFUSE, 5A
-
26006C26006-1078 FUSE, 10AFUSE, 10A
-
26006D26006-1079 FUSE, 20AFUSE, 20A
-
2601126011-0013 WIRE, LEAD, BATTERY (-)WIRE, LEAD, BATTERY (-)
-
26011A26011-0043 WIRE, LEAD, BATTERY (+)WIRE, LEAD, BATTERY (+)
-
26011B26011-1774 WIRE, LEAD, DIAGNOSISWIRE, LEAD, DIAGNOSIS
-
2601226012-1371 BATTERY, MF, FTZ16, BS, 12V 18AHBATTERY, MF, FTZ16, BS, 12V 18AH
-
2603126031-0166 HARNESS, MAIN (EXCEPT CALIF.)HARNESS, MAIN (EXCEPT CALIF.)
-
26031A26031-0167 HARNESS, REARHARNESS, REAR
-
26031B26031-0169 HARNESS, MAIN (CALIF. ONLY)HARNESS, MAIN (CALIF. ONLY)
-
2700227002-0001 RELAY, ASSYRELAY, ASSY
-
27002A27002-1113 RELAY, ASSY, SIGNAL LAMPRELAY, ASSY, SIGNAL LAMP
-
2700327003-0021 HORNHORN
-
5603056030-0015 LABEL, FUSE BOXLABEL, FUSE BOX
-
56030A56030-0016 LABEL, FUSE BOXLABEL, FUSE BOX
-
56030B56030-0017 LABEL, FUSE BOXLABEL, FUSE BOX
-
9203792037-1163 CLAMP, SPEED, L=58CLAMP, SPEED, L=58
-
9217192171-0069 CLAMP, DIA=20CLAMP, DIA=20
-
92171A92171-0081 CLAMP, DIA=20CLAMP, DIA=20
-
92171B92171-0331 CLAMP, HARNESSCLAMP, HARNESS
-
92171C92171-0368 CLAMP, HARNESSCLAMP, HARNESS
-
92171D92171-1415 CLAMP, DIA=13CLAMP, DIA=13
-
92171E92171-1424 CLAMP, DIA=15CLAMP, DIA=15
