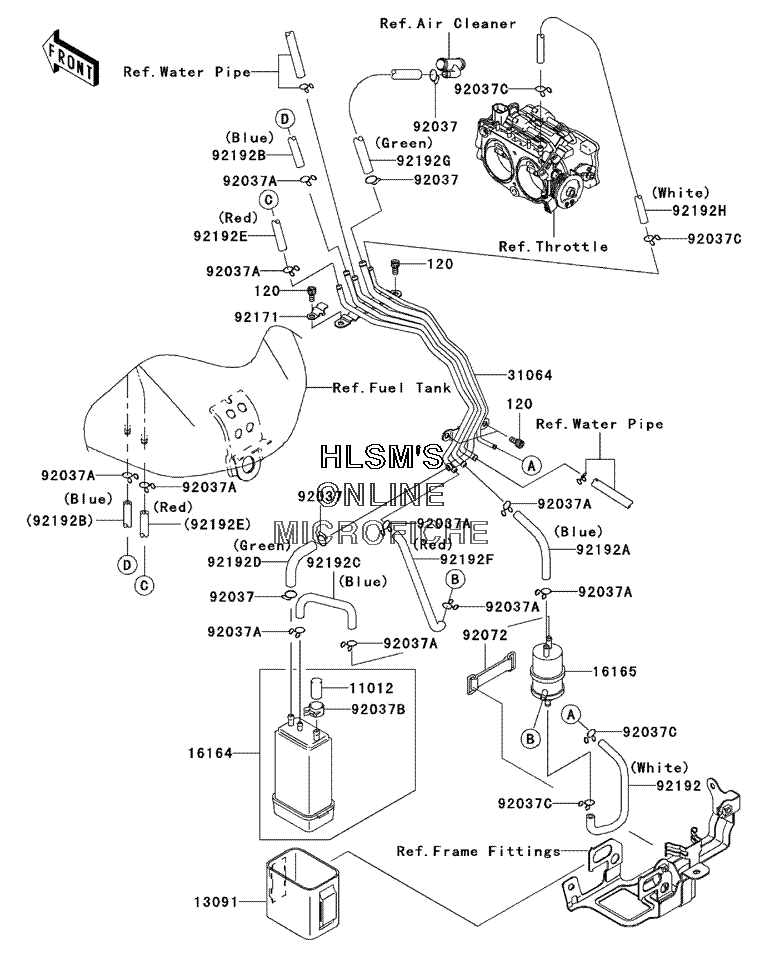

FUEL EVAPORATIVE SYSTEM (CALIF ONLY) для Kawasaki Vulcan 2000 - 2004 года выпуска

  • №
    Артикул
    Название
  • 120
    120W0612 BOLT, SOCKET, 6X12
    BOLT, SOCKET, 6X12
  • 11012
    11012-1388 CAP, CANISTER
    CAP, CANISTER
  • 13091
    13091-1308 HOLDER, CANISTER
    HOLDER, CANISTER
  • 16164
    16164-1054 CANISTER
    CANISTER
  • 16165
    16165-1001 SEPARATOR
    SEPARATOR
  • 31064
    31064-0010 PIPE, COMP
    PIPE, COMP
  • 92037
    92037-1104 CLAMP, HOSE
    CLAMP, HOSE
  • 92037A
    92037-147 CLAMP, TUBE
    CLAMP, TUBE
  • 92037B
    92037-1512 CLAMP, CANISTER
    CLAMP, CANISTER
  • 92037C
    92037-1712 CLAMP
    CLAMP
  • 92072
    92072-1419 BAND, L=50
    BAND, L=50
  • 92171
    92171-0209 CLAMP
    CLAMP
  • 92192
    92192-0013 TUBE, SEPARATOR, PIPE (WHITE)
    TUBE, SEPARATOR, PIPE (WHITE)
  • 92192A
    92192-0014 TUBE, SEPARATOR, PIPE (BLUE)
    TUBE, SEPARATOR, PIPE (BLUE)
  • 92192B
    92192-0037 TUBE (BLUE)
    TUBE (BLUE)
  • 92192C
    92192-0061 TUBE, CANISTER, SEPARATOR (BLUE)
    TUBE, CANISTER, SEPARATOR (BLUE)
  • 92192D
    92192-0107 TUBE, CANISTER, PIPE (GREEN)
    TUBE, CANISTER, PIPE (GREEN)
  • 92192E
    92192-0112 TUBE, TANK, PIPE (RED)
    TUBE, TANK, PIPE (RED)
  • 92192F
    92192-0113 TUBE, SEPARATOR, PIPE (RED)
    TUBE, SEPARATOR, PIPE (RED)
  • 92192G
    92192-0114 TUBE, 7X12X430 (GREEN)
    TUBE, 7X12X430 (GREEN)
  • 92192H
    92192-0121 TUBE, 4X9X510 (WHITE)
    TUBE, 4X9X510 (WHITE)
