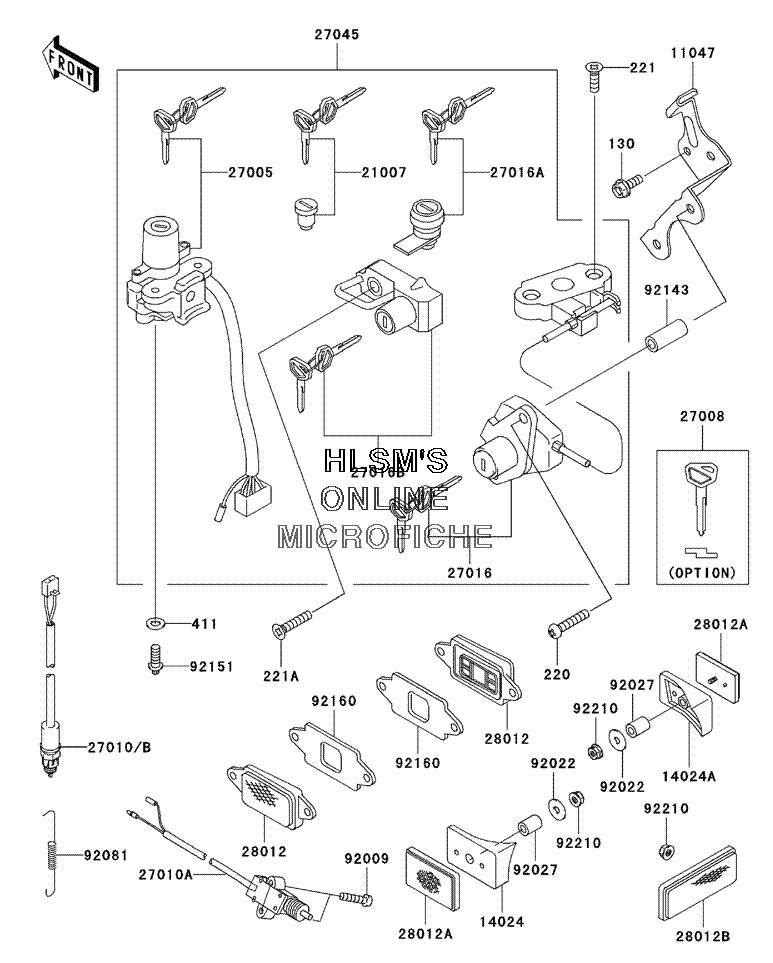

IGNITION SWITCH W/ LOCKS AND REFLECTORS для Kawasaki ZZR600 - 2003 года выпуска
-
№АртикулНазвание
-
130130J0616 BOLT, FLANGED, 6X16 (BLACK)BOLT, FLANGED, 6X16 (BLACK)
-
220220F0630 SCREW, PAN, CROSSSCREW, PAN, CROSS
-
221221C0620 SCREW, CSK, CROSSCREW, CSK, CROS
-
221A221F0630 SCREW, CSK, CROSSSCREW, CSK, CROSS
-
411411E0600 WASHER, PLAIN, 6MMWASHER, PLAIN, 6MM
-
1104711047-1885 BRACKET, SEAT LOCKBRACKET, SEAT LOCK
-
1402414024-1940 COVER, REFLECTOR (LEFT)COVER, REFLECTOR (LEFT)
-
14024A14024-1941 COVER, REFLECTOR (RIGHT)COVER, REFLECTOR (RIGHT)
-
2100721007-5035 ROTOR, LOCK, TANK CAPROTOR, LOCK, TANK CAP
-
2700527005-1213 SWITCH, ASSY., IGNITIONSWITCH, ASSY., IGNITION
-
2700827008-1170 KEY, LOCK, BLANK (OPT)KEY, LOCK, BLANK (OPT)
-
27010A27010-1226 SWITCH, SIDE STANDSWITCH, SIDE STAND
-
27010B27010-1452 SWITCH, BRAKE LAMPSWITCH, BRAKE LAMP
-
2701627016-5196 LOCK, ASSY., SEATLOCK, ASSY., SEAT
-
27016A27016-5198 LOCK, ASSY., PADLOCK, ASSY., PAD
-
27016B27016-5207 LOCK, ASSY., HELMETLOCK, ASSY., HELMET
-
2704527045-5058 SWITCH, ASSY.SWITCH, ASSY.
-
2801228012-1068 REFLECTOR, REFLEX, FRONT, SIDEREFLECTOR, REFLEX, FRONT, SIDE
-
28012A28012-1072 REFLECTOR, REFLEX, REARREFLECTOR, REFLEX, REAR
-
28012B28012-1077 REFLECTOR, REFLEXREFLECTOR, REFLEX
-
9200992009-1492 SCREW, 5X22SCREW, 5X22
-
9202292022-263 WASHER, 5.2X16X1.2WASHER, 5.2X16X1.2
-
9202792027-1789 COLLAR, 5X8X14.5COLLAR, 5X8X14.5
-
9208192081-1704 SPRING, BRAKE LAMP SWITCHSPRING, BRAKE LAMP SWITCH
-
9214392143-1408 COLLAR, 6.5X9.5X17COLLAR, 6.5X9.5X17
-
9215192151-1911 BOLT, TORX, 6X16BOLT, TORX, 6X16
-
9216092160-1192 DAMPER, REFLECTORDAMPER, REFLECTOR
-
9221092210-0007 NUT, FLANGED, 5MMNUT, FLANGED, 5MM
