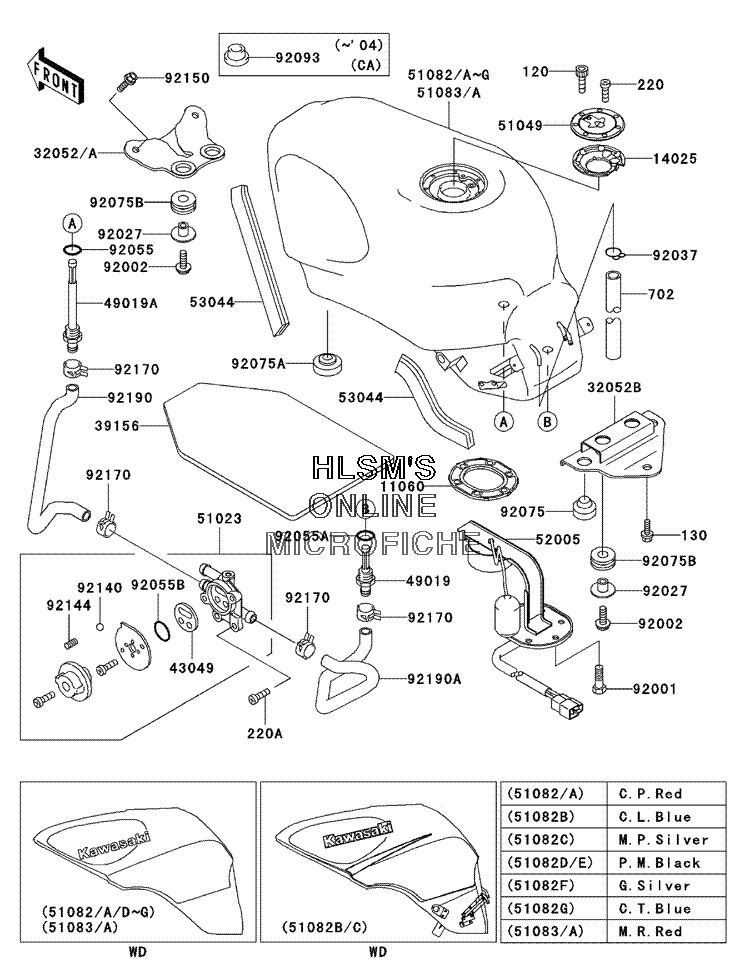

FUEL TANK для Kawasaki ZZR600 - 2003 года выпуска

  • №
    Артикул
    Название
  • 11060
    11060-1337 GASKET, FUEL GAUGE
    GASKET, FUEL GAUGE
  • 14025
    14025-1913 COVER, TANK CAP
    COVER, TANK CAP
  • 32052
    32052-1362-CQ BRACKET, TANK, FRONT (P.C.GRAY) (US ONLY)
    BRACKET, TANK, FRONT (P.C.GRAY) (US ONLY)
  • 32052A
    32052-1362-EZ BRACKET, TANK, FRONT (C.GRAY) (CANADA ONLY)
    BRACKET, TANK, FRONT (C.GRAY) (CANADA ONLY)
  • 32052B
    32052-1363 BRACKET, TANK, REAR
    BRACKET, TANK, REAR
  • 39156
    39156-1662 PAD, FUEL TANK
    PAD, FUEL TANK
  • 43049
    43049-1091 PACKING, TAP VALVE
    PACKING, TAP VALVE
  • 49019
    49019-1070 FILTER, FUEL
    FILTER, FUEL
  • 49019A
    49019-1071 FILTER, FUEL, "ON"
    FILTER, FUEL, "ON"
  • 51023
    51023-1320 TAP, ASSY., FUEL
    TAP, ASSY., FUEL
  • 51049
    51049-1130 CAP, TANK, FUEL
    CAP, TANK, FUEL
  • 51082D
    51082-5406-373 TANK, COMP, FUEL (P.M.BLACK) (US ONLY)
    TANK, COMP, FUEL (P.M.BLACK) (US ONLY)
  • 51082E
    51082-5407-373 TANK, COMP, FUEL (P.M.BLACK) (CALIF. ONLY)
    TANK, COMP, FUEL (P.M.BLACK) (CALIF. ONLY)
  • 51082F
    51082-5430-474 TANK, COMP, FUEL (G.SILVER) (CANADA ONLY)
    TANK, COMP, FUEL (G.SILVER) (CANADA ONLY)
  • 51082G
    51082-5431-235 TANK, COMP, FUEL (C.T.BLUE) (CANADA ONLY)
    TANK, COMP, FUEL (C.T.BLUE) (CANADA ONLY)
  • 52005
    52005-1105 GAUGE, FUEL
    GAUGE, FUEL
  • 53044
    53044-1137 TRIM
    TRIM
  • 92001
    92001-1069 BOLT, FUEL GAUGE
    BOLT, FUEL GAUGE
  • 92002
    92002-1237 BOLT, 6X20
    BOLT, 6X20
  • 92027
    92027-251 COLLAR, L=13.1
    COLLAR, L=13.1
  • 92037
    92037-010 CLAMP, TUBE
    CLAMP, TUBE
  • 92055
    92055-1386 O-RING, ID=9.5
    O-RING, ID=9.5
  • 92055A
    92055-1387 O-RING, 11.5X1.5
    O-RING, 11.5X1.5
  • 92055B
    92055-1419 O-RING, TAP LEVER
    O-RING, TAP LEVER
  • 92075
    92075-015 DAMPER
    DAMPER
  • 92075A
    92075-157 DAMPER
    DAMPER
  • 92075B
    92075-1690 DAMPER
    DAMPER
  • 120
    120S0512 BOLT, SOCKET
    BOLT, SOCKET
  • 130
    130J0820 BOLT, FLANGED, 8X20
    BOLT, FLANGED, 8X20
  • 220
    220F0508 SCREW, PAN, CROSS
    SCREW, PAN, CROSS
  • 220A
    220F0608 SCREW, PAN, CROSS
    SCREW, PAN, CROSS
  • 702
    702A07600 TUBE, RUBBER, 7X10X600
    TUBE, RUBBER, 7X10X600
  • 92093
    92093-1030 SEAL, FUEL TANK CAP (CALIF. ONLY)
    SEAL, FUEL TANK CAP (CALIF. ONLY)
  • 92140
    92140-1051 BALL, STAINLESS, 5/32"
    BALL, STAINLESS, 5/32"
  • 92144
    92144-1212 SPRING, FUEL TAP KNOB
    SPRING, FUEL TAP KNOB
  • 92150
    92150-1340 BOLT, 6X14
    BOLT, 6X14
  • 92170
    92170-1492 CLAMP
    CLAMP
  • 92190
    92190-1332 TUBE, TAP, FILTER
    TUBE, TAP, FILTER
  • 92190A
    92190-1333 TUBE, FUE(LEFT, RIGHT) ES
    TUBE, FUE(LEFT, RIGHT) ES
