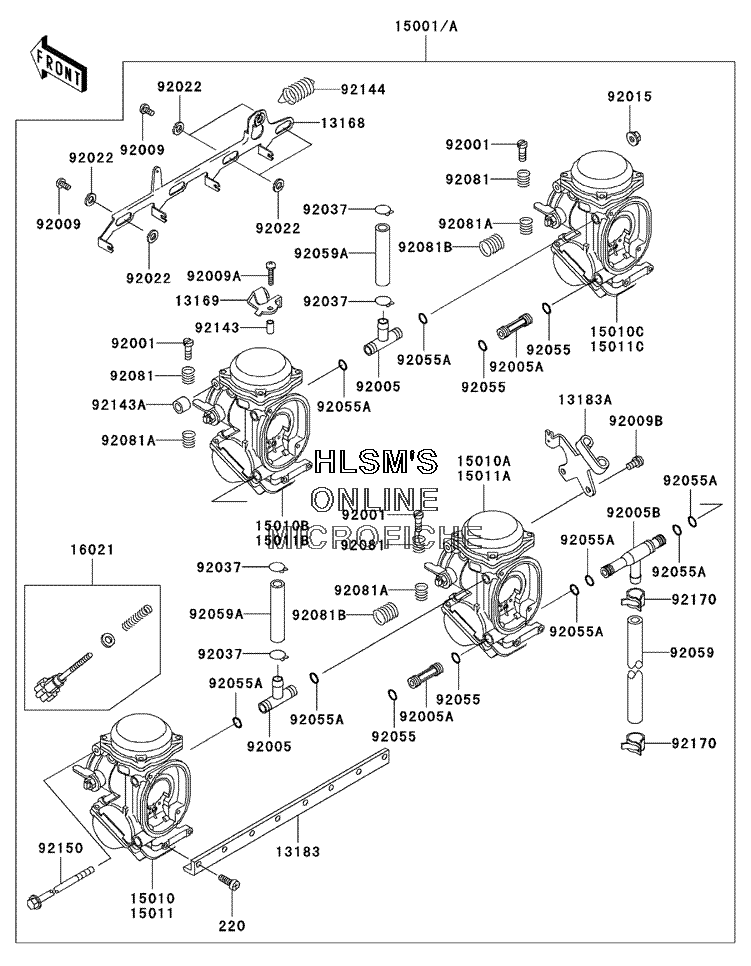

CARBURETOR для Kawasaki ZZR600 - 2003 года выпуска

  • №
    Артикул
    Название
  • 13168
    13168-1462 LEVER, STARTER
    LEVER, STARTER
  • 13169
    13169-1965 PLATE, STARTER CABLE
    PLATE, STARTER CABLE
  • 13183
    13183-1608 PLATE, CARBURETOR STAY
    PLATE, CARBURETOR STAY
  • 13183A
    13183-1610 PLATE, THROTTLE CABLE
    PLATE, THROTTLE CABLE
  • 15001
    15001-1797 CARBURETOR, ASSY. (EXCEPT CALIF.)
    CARBURETOR, ASSY. (EXCEPT CALIF.)
  • 15001A
    15001-1823 CARBURETOR, ASSY. (CALIF. ONLY)
    CARBURETOR, ASSY. (CALIF. ONLY)
  • 15010
    15010-1557 CARBURETOR (LEFT/OUTSIDE) (CALIF. ONLY)
    CARBURETOR (LEFT/OUTSIDE) (CALIF. ONLY)
  • 15010A
    15010-1558 CARBURETOR (LEFT/INSIDE) (CALIF. ONLY)
    CARBURETOR (LEFT/INSIDE) (CALIF. ONLY)
  • 15010B
    15010-1559 CARBURETOR (RIGHT/INSIDE) (CALIF. ONLY)
    CARBURETOR (RIGHT/INSIDE) (CALIF. ONLY)
  • 15010C
    15010-1560 CARBURETOR (RIGHT/OUTSIDE) (CALIF. ONLY)
    CARBURETOR (RIGHT/OUTSIDE) (CALIF. ONLY)
  • 15011
    15011-1139 CARBURETOR (LEFT/OUTSIDE) (EXCEPT CALIF.)
    CARBURETOR (LEFT/OUTSIDE) (EXCEPT CALIF.)
  • 15011A
    15011-1140 CARBURETOR (LEFT/INSIDE) (EXCEPT CALIF.)
    CARBURETOR (LEFT/INSIDE) (EXCEPT CALIF.)
  • 15011B
    15011-1141 CARBURETOR (RIGHT/INSIDE) (EXCEPT CALIF.)
    CARBURETOR (RIGHT/INSIDE) (EXCEPT CALIF.)
  • 15011C
    15011-1142 CARBURETOR (RIGHT/OUTSIDE) (EXCEPT CALIF.)
    CARBURETOR (RIGHT/OUTSIDE) (EXCEPT CALIF.)
  • 16021
    16021-1160 SCREW, THROTTLE STOP
    SCREW, THROTTLE STOP
  • 92001
    92001-1998 BOLT, THROTTLE ADJUST
    BOLT, THROTTLE ADJUST
  • 92005
    92005-1125 FITTING, T, TYPE
    FITTING, T, TYPE
  • 92005A
    92005-1157 FITTING
    FITTING
  • 92005B
    92005-1214 FITTING, T, TYPE
    FITTING, T, TYPE
  • 92009
    92009-1262 SCREW
    SCREW
  • 92009A
    92009-1446 SCREW, 4X18
    SCREW, 4X18
  • 92009B
    92009-1597 SCREW
    SCREW
  • 92015
    92015-1259 NUT, FLANGED, 5MM
    NUT, FLANGED, 5MM
  • 92022
    92022-1199 WASHER, 6.1X11X0.8, POLYACETAL
    WASHER, 6.1X11X0.8, POLYACETAL
  • 92037
    92037-1531 CLAMP, TUBE
    CLAMP, TUBE
  • 92055
    92055-1004 O-RING
    O-RING
  • 92055A
    92055-1223 O-RING
    O-RING
  • 92059
    92059-1487 TUBE, 7.3X12.5X240
    TUBE, 7.3X12.5X240
  • 92059A
    92059-1738 TUBE, 7X11X45
    TUBE, 7X11X45
  • 92081
    92081-1620 SPRING
    SPRING
  • 92081A
    92081-1621 SPRING, THROTTLE ADJUST LOWER
    SPRING, THROTTLE ADJUST LOWER
  • 220
    220D0514 SCREW, PAN, CROS, 5X14
    SCREW, PAN, CROS, 5X14
  • 92081B
    92081-1622 SPRING, THROTTLE ADJUST CENTER
    SPRING, THROTTLE ADJUST CENTER
  • 92143
    92143-1265 COLLAR, 4X5.2X9.6
    COLLAR, 4X5.2X9.6
  • 92143A
    92143-1438 COLLAR
    COLLAR
  • 92144
    92144-1540 SPRING
    SPRING
  • 92150
    92150-1416 BOLT
    BOLT
  • 92170
    92170-1051 CLAMP, TUBE
    CLAMP, TUBE
